The TK Equipment MM12-E7.0 Mortar Mixer features a 7 HP Baldor Electric Engine and a 12 cu. ft. capacity. This model has a double transmission v-belt to gears system.
Product
Description

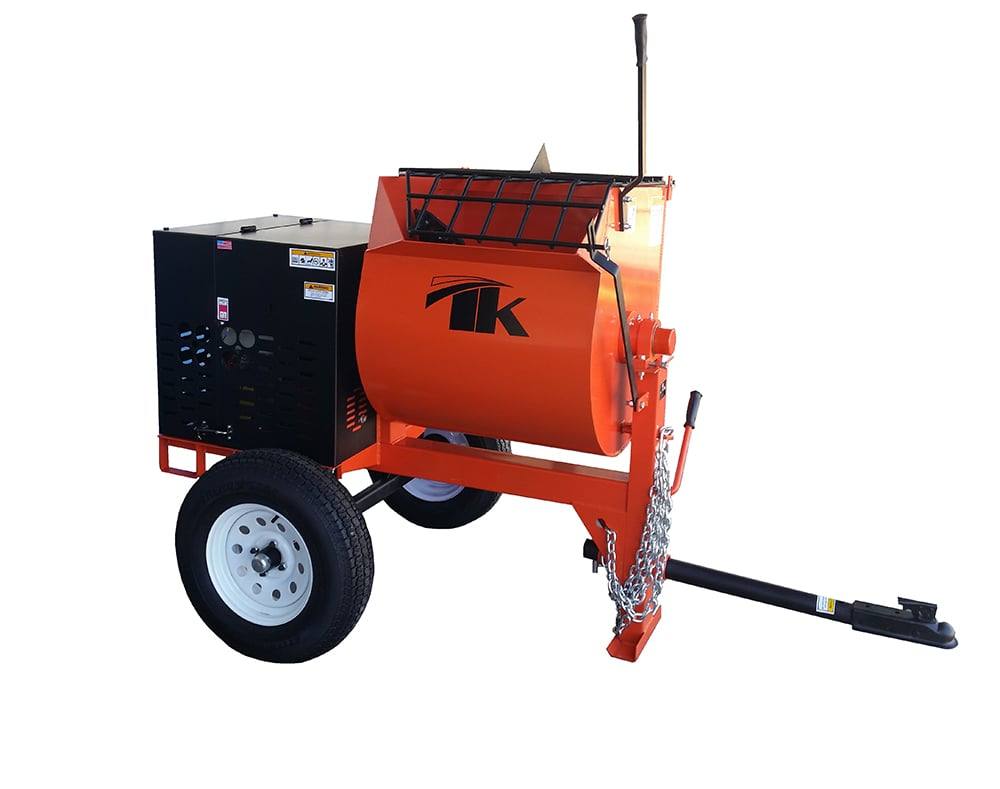

TK Equipment MM12-E7.0 Mortar Mixer
Features:
Heavy Duty safety grid with built-in bag cutter
Emergency stop switch
12 cu. ft. Capacity
Heavy duty and efficient ventilation shroud
7 HP Baldor Motor, 3 phase, 230/460 V
Heavy duty steel hood latch instead of rubber
Heavy duty axle with 2 gussets per side for strength added
High speed hubs & wheels
1 single piece Squared Box steel tubing T-frame with reinforced gussets
Quick access, front disengaged handle which is protected through the T-frame
Heavy duty safety chain
Life time warranty on drum bearings & seals; 6 months under any manufacturing defect
Cast Iron pillow block for added strength
Single piece 1 3/4" square central shaft rather than welding at both ends for added strength
Batch Capacity 3.5 - 4 bags
Drive System: Double Transmission V-Belt to Gears
High speed 13 x 6.5 wheels
Included: 2"ball or Pintle hitch heavy duty schedule SCH 80 retractable tow tongue/hitch
Optional: Spiral Blade
Optional: Drum Thickness: 1/4" Whole Body upgrade upon request
More
Information
Manufacturer:
TK Equipment
MPN:
MM12-E7.0
Condition
New
Shipping Options
Free Standard Delivery
Drum Capacity
12 cu. ft.
Drum Type
Steel
Dump Type
Manual
Engine Manufacturer
Baldor
Engine Size
7hp
Mixer Drive System
V-Belt to Gears
Power Source
Baldor CEM3710T
Tire Size
13 x 6.5
Length
87 in. (220 cm)
Width
51 in. (129 cm)
Height
58 in. (147 cm)
Warranty
Lifetime Warranty on drum bearings & seals; 6 months under any manufacturing defect
