The TK Equipment HM16-DY9 Mortar Mixer features a 9.1 HP Yanmar Diesel Engine and a 16 cu. ft. capacity. This model comes standard with axle springs for less bouncing and swaying and a hydraulic drive system.
Product
Description

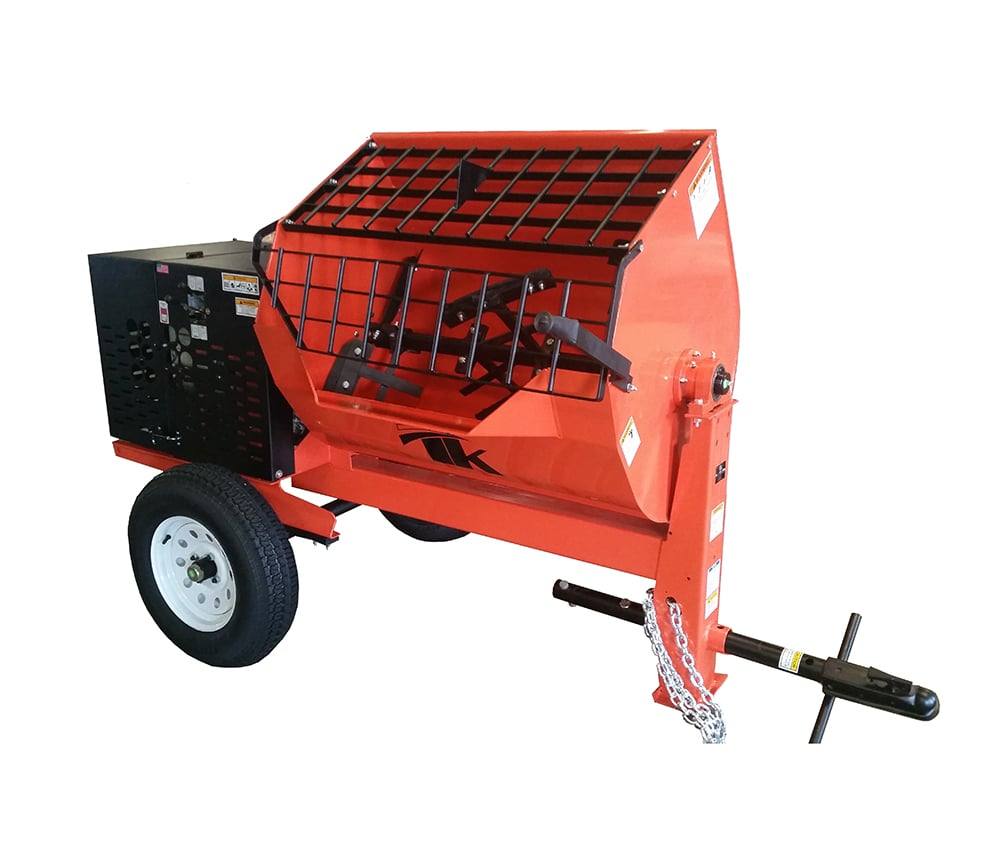

TK Equipment HM16-DY9 Mortar Mixer
Features:
Heavy Duty safety grid with built-in bag cutter
Highway Towable
16 cu. ft. Capacity
Heavy duty and efficient ventilation shroud
Mixing and dumping hydraulic control
Reliable 9.1 HP Yanmar Diesel motor
Heavy duty steel hood latch instead of rubber
High speed hubs & wheels
Standard axle springs for less bounce and sway
1 single piece Squared Box steel tubing T-frame
Heavy duty safety chain
Lifetime warranty on drum bearings and seals; 6 months under any manufacturing defect
Cast Iron pillow block for added strength
Single piece of 1-3/4" square central shaft rather than welding at both ends for added strength
Batch Capacity 4 - 4.5 bags
Drive System: Hydraulic
Hydraulic Dump Action
High speed 13 x 6.5 wheels
3/16" Drum Body and 1/4" Drum End Plates
Included: 2"ball or Pintle hitch heavy duty schedule SCH 80 retractable tow tongue/hitch
Optional: Drum Thickness: 1/4" Whole Body upgrade upon request
Optional: Spiral Blade
More
Information
Manufacturer:
TK Equipment
MPN:
HM16-DY9
Condition
New
Shipping Options
Standard Delivery
Drum Capacity
16 cu. ft.
Drum Type
Steel
Dump Type
Hydraulic
Engine Manufacturer
Yanmar
Engine Size
9hp
Mixer Drive System
Hydraulic
Power Source
Yanmar Diesel (L100V6CF1T1AA)
Starting System
Electric Start
Tire Size
13 x 6.5
Length
92 in. (233 cm)
Width
52 in. (132 cm)
Height
58 in. (147 cm)
Warranty
Lifetime on drum bearings and seals; 6 months under any manufacturing defect
