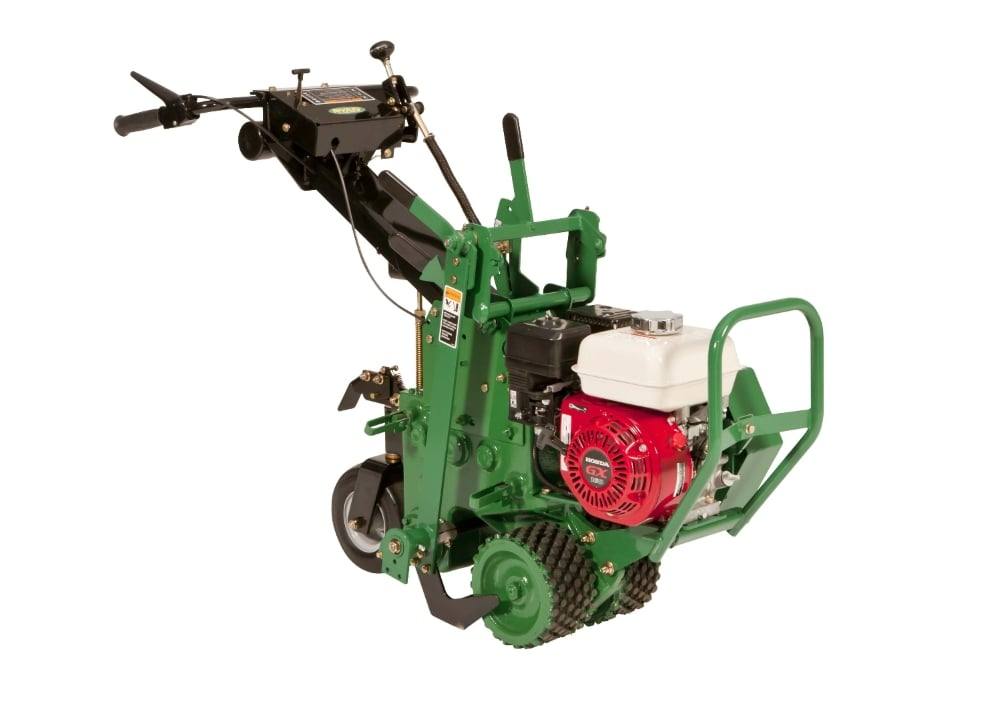

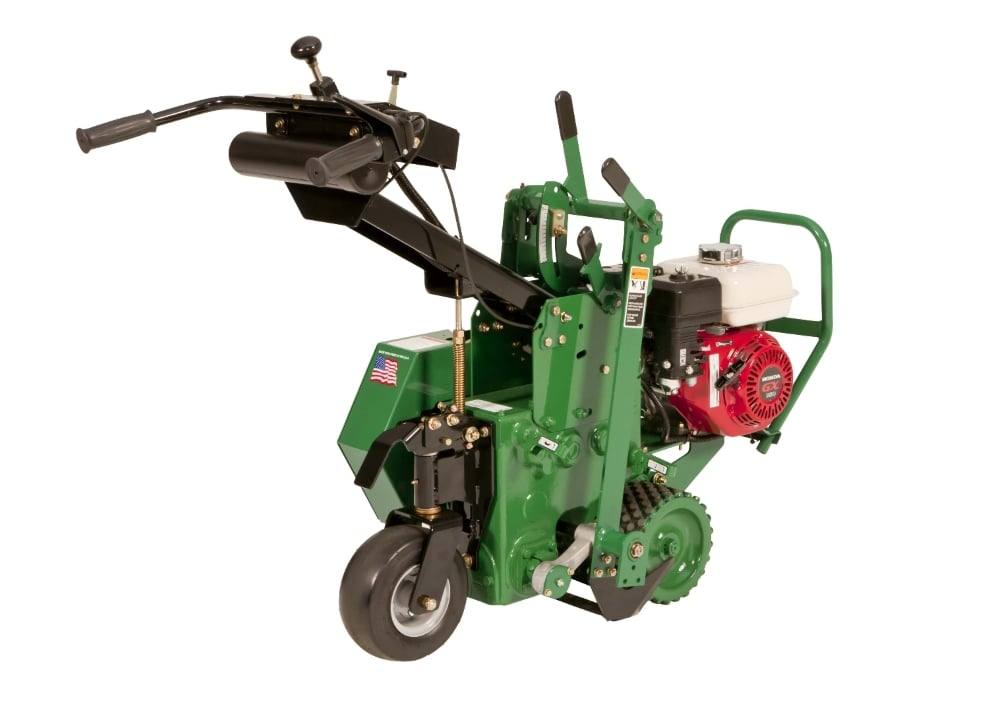

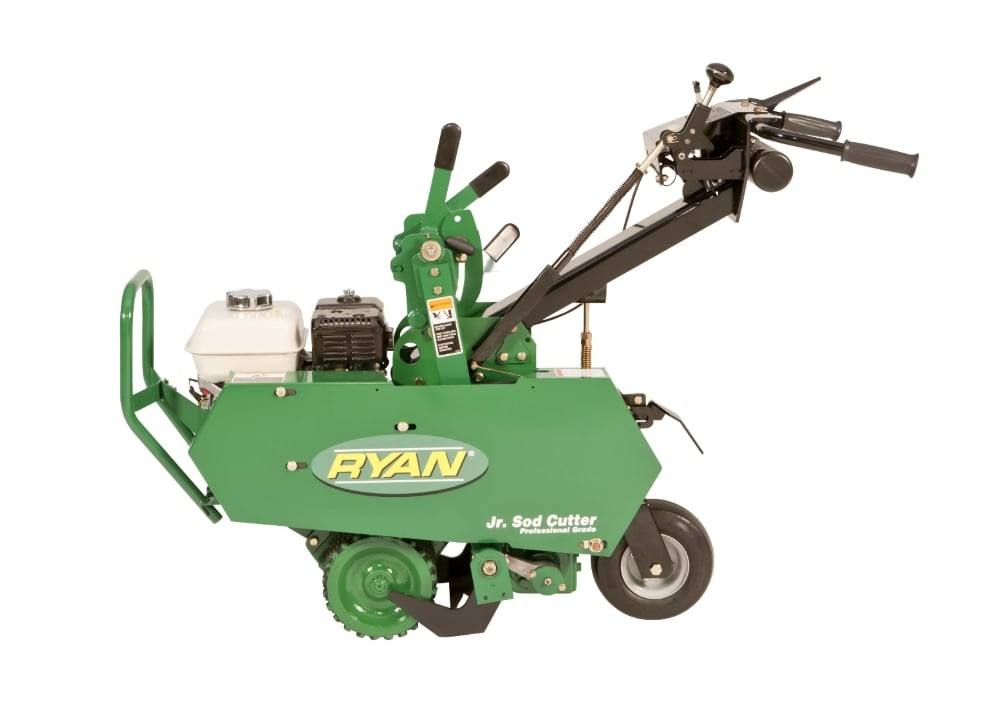

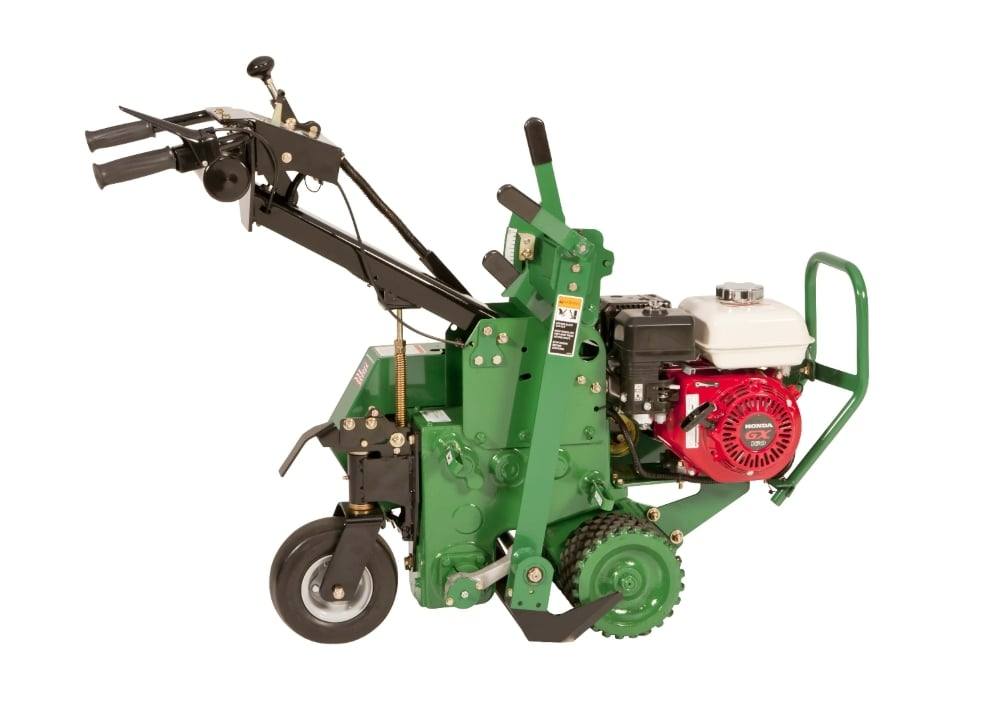

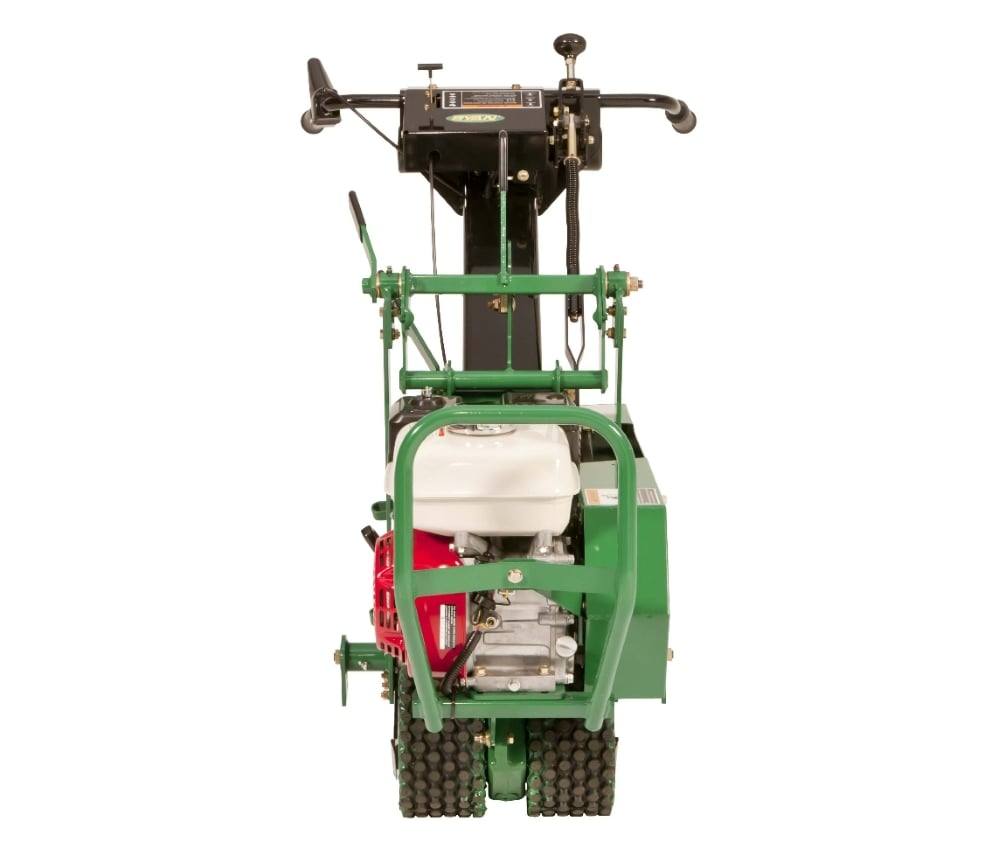

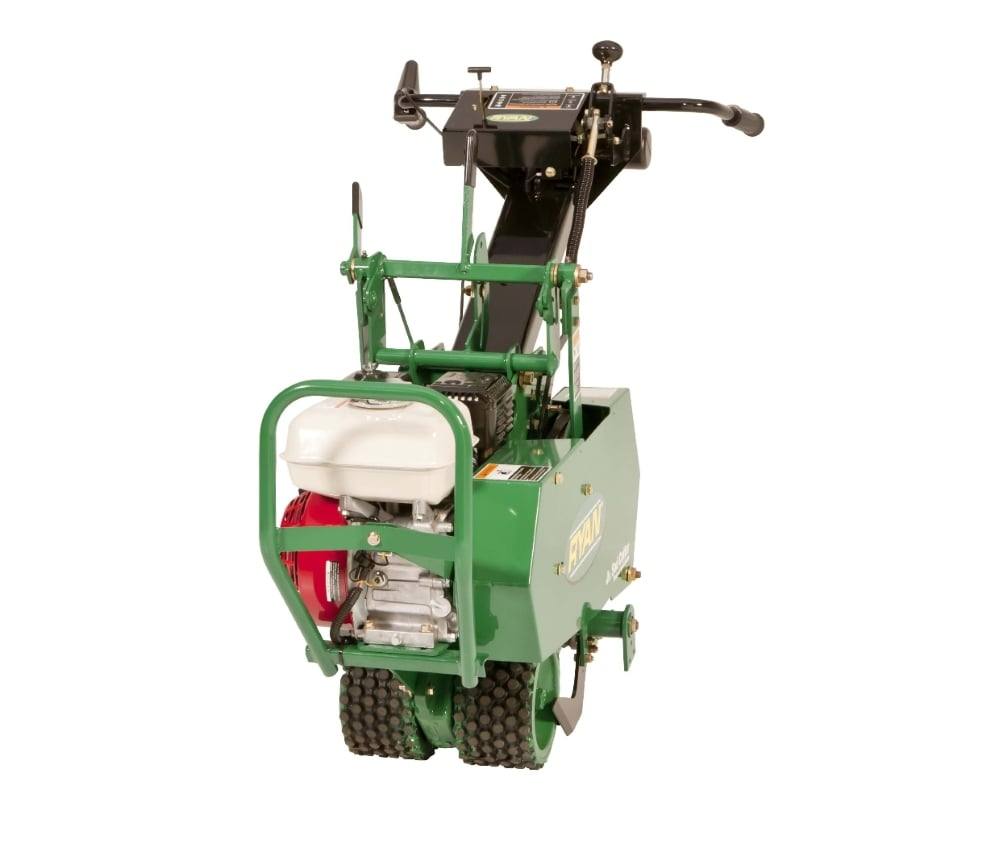

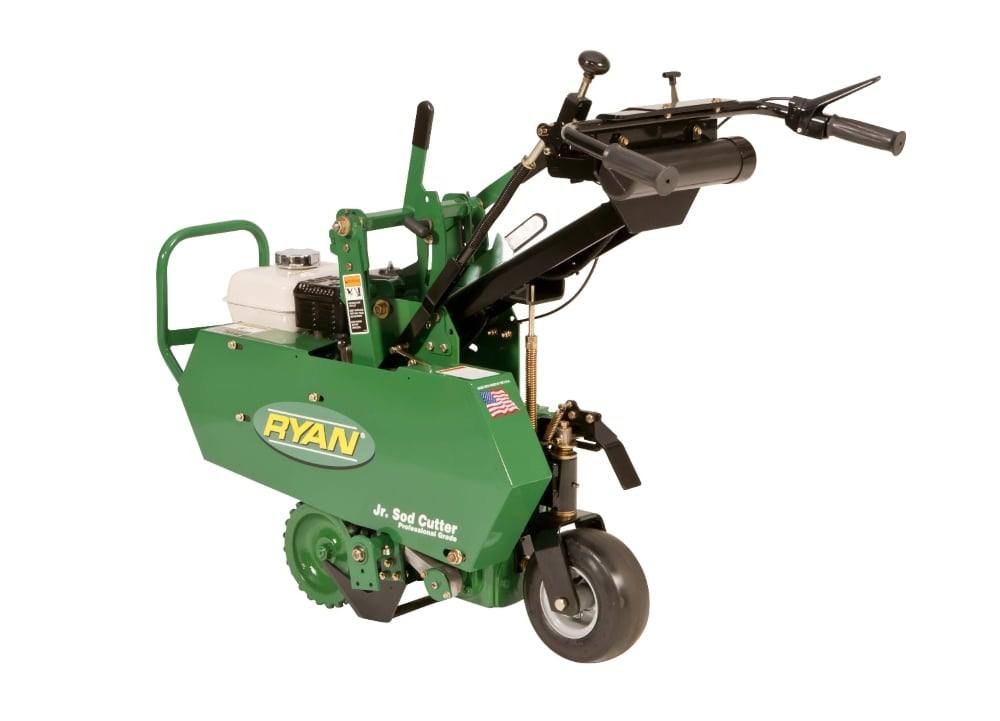

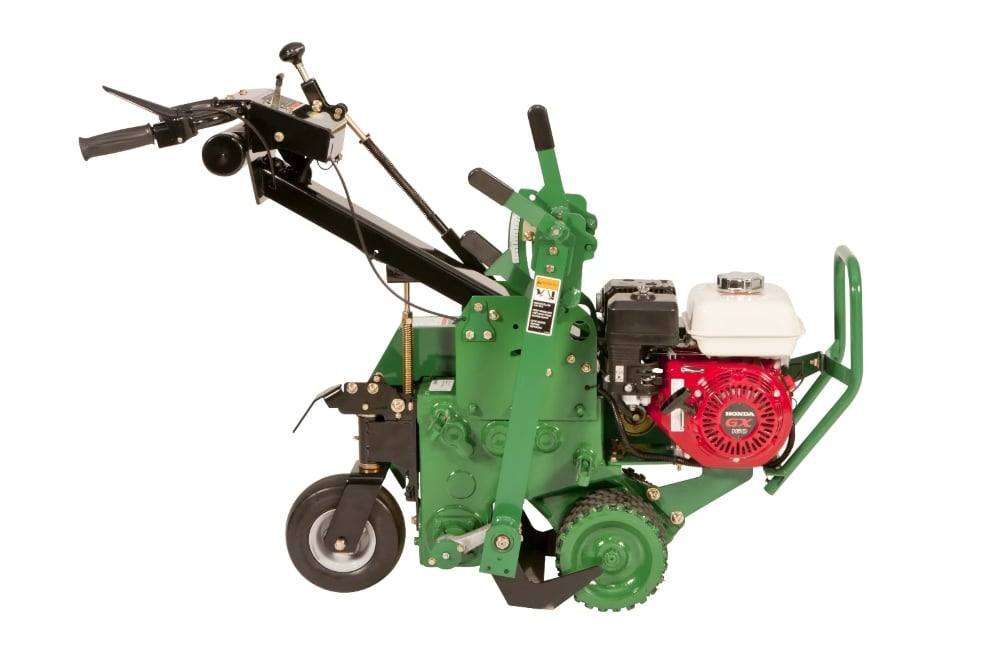

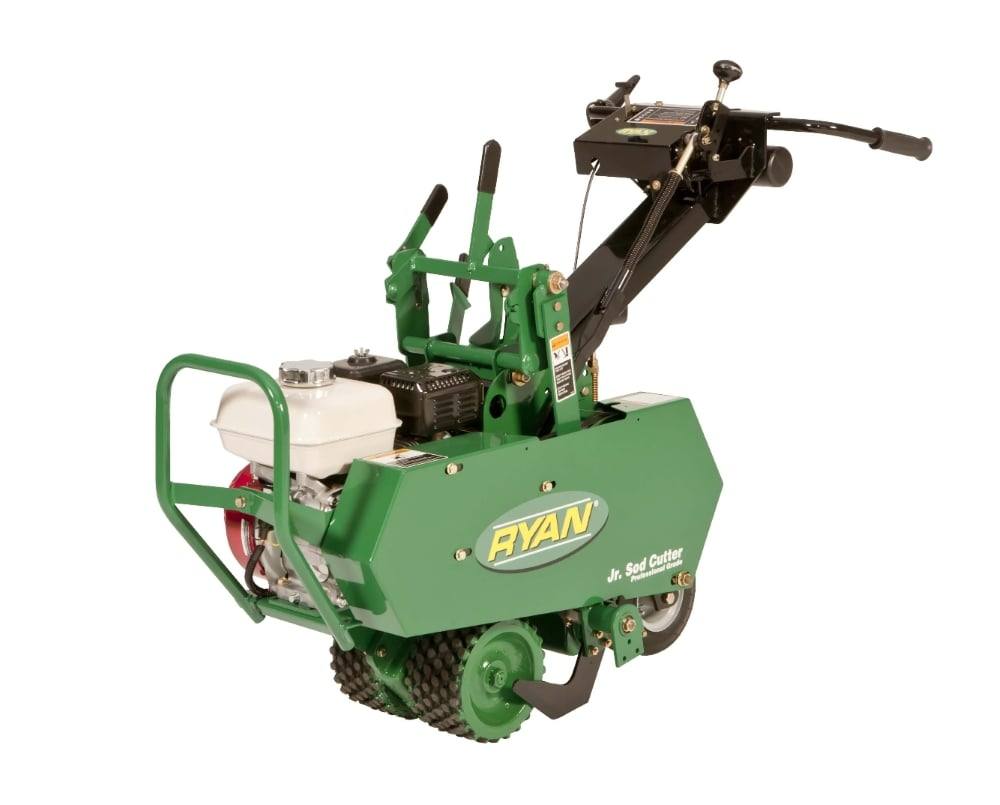

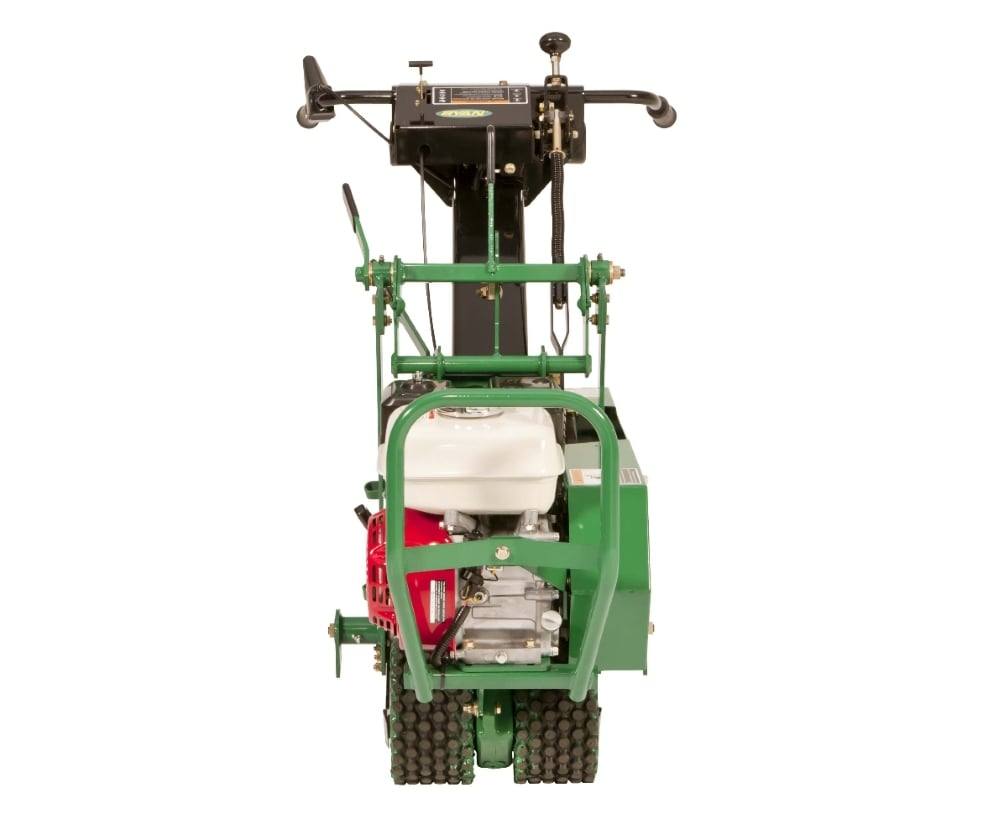

Ryan Jr. Sod Cutter 544953C 12" 4-Cycle Honda Engine

SKU 544953C
$111,111.00

The Ryan Jr. sod cutter - 544953C provides a precise 12 inch cut and is powered by a Honda GX160 engine. The swiveling rear wheel makes for easy maneuvering and tight turns. With its adjustable depth and angle, The Ryan Jr. sod cutter can take on a variety of different landscapes with speed and reliability.

Product Description

Ryan Jr. Sod Cutter 544953C 12" Honda 4-Cycle Engine

Features:

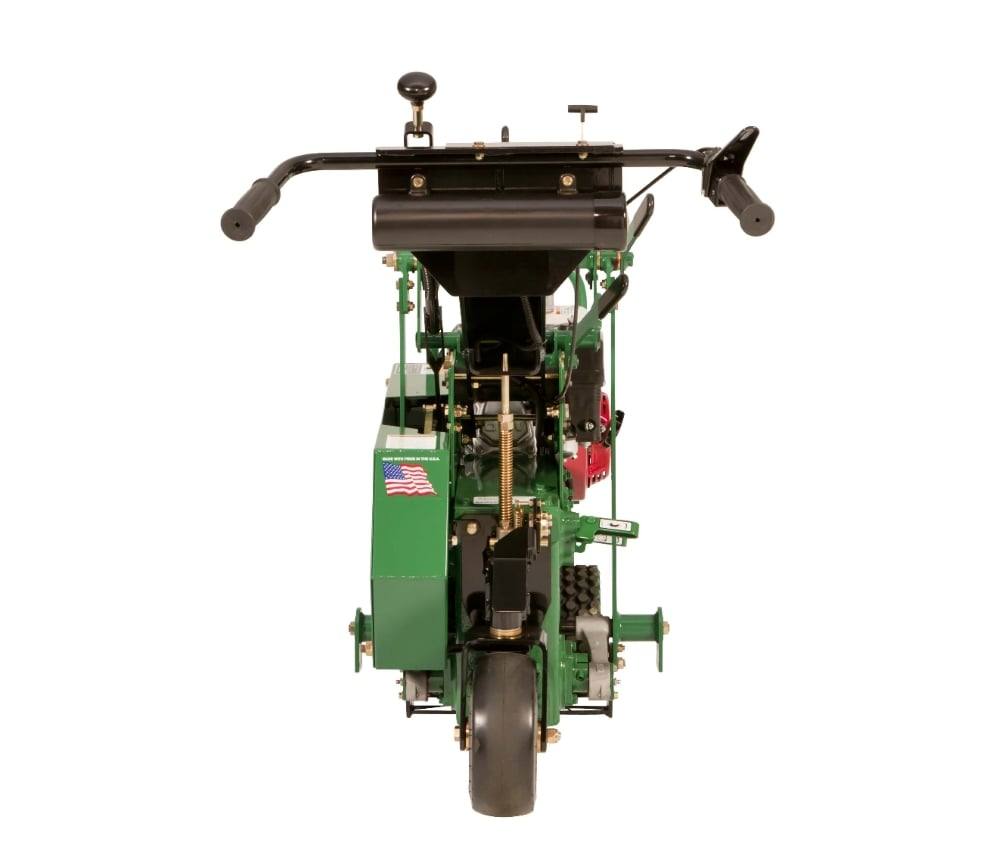

  • Pneumatic swiveling rear wheel
  • Rubber isolation mount for absorbing the units vibration
  • Easy depth and blade angle adjustment to fit many different soil conditions
  • Good Balance
  • Easy Handling
  • Maximum traction and self-propelled action
  • Honda GX160 Engine



Specifications:

Power


Engine Model 4-Cycle Honda GX160; recoil start; on/off switch; low-oil alert
Displacement 9.9 cu in. (163 cc)
Fuel Capacity 0.82 gal. (3.1 L)
Oil Capacity 0.61 qt (0.58 L)


Unit


Clutch Spring-loaded belt tightener
Drive V-belt engine to gear case; double roller chain to blade eccentric shaft; gears and roller chain to traction wheels; transmission has separate dog clutches to engage cutting blade and traction drive
Drive Wheel (2) 8 in. (203 mm) diameter, knob tread; rubber-vulcanized to cast-iron hubs
Lubrication Oil splash in gear case
Speed Up to 135 ft/min (41 m/min)
Cutting Width 12 in. (305 mm)
Cutting Thickness                  Adjustable up to 2.5 in. (64 mm)


Dimensions


Weight  333 Lb. (151 kg.)
Width  25 in. (635 mm)
Length 53 in. (1,346 mm)
Height 40 in. (1,016 mm)



More Information

Manufacturer: Ryan
MPN: 544953C
ConditionNew
Shipping OptionsStandard Delivery
Cutting Width12" (305 mm)
Engine ManufacturerHonda
Length53" (1346 mm)
Width25" (635 mm)
Height40" (1,016 mm)
