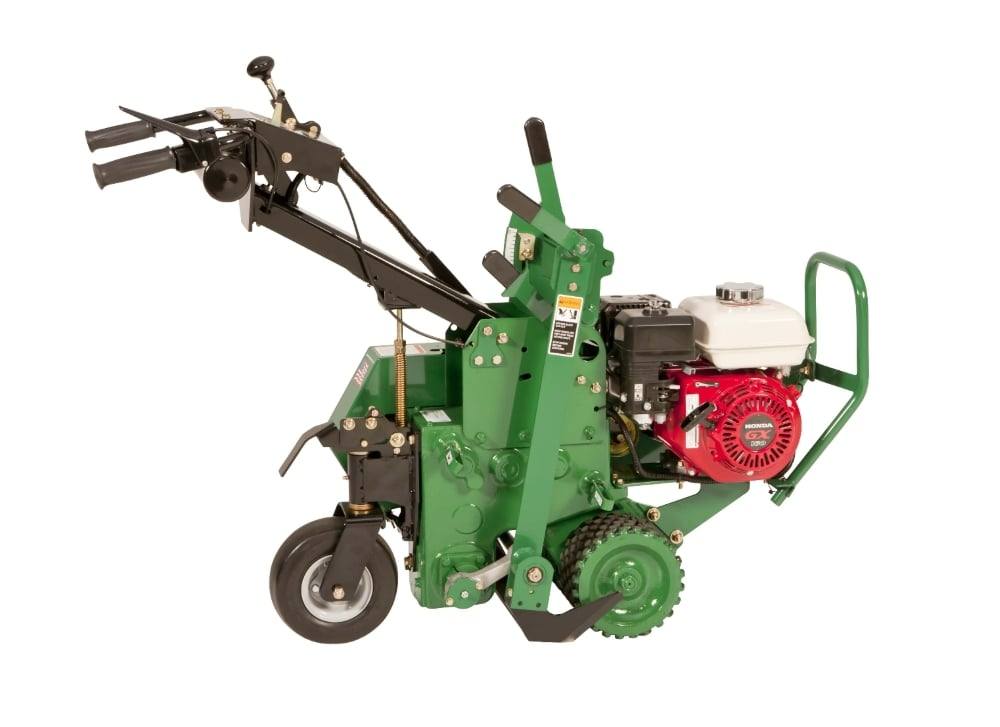

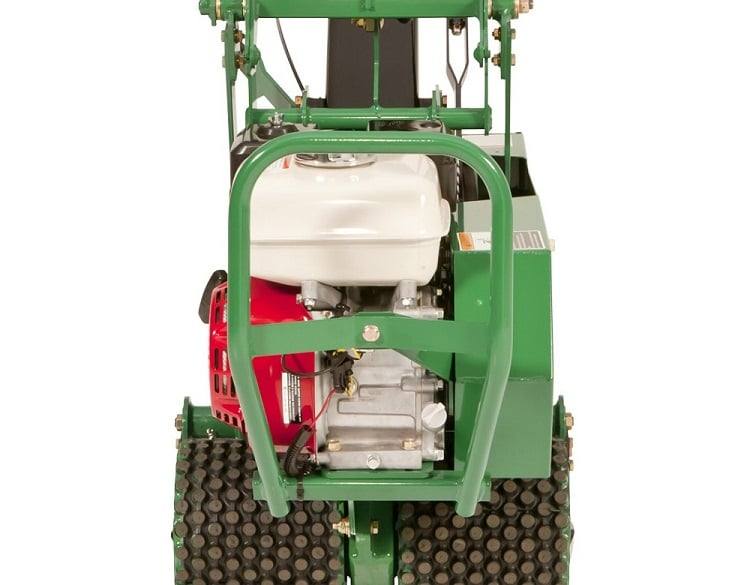

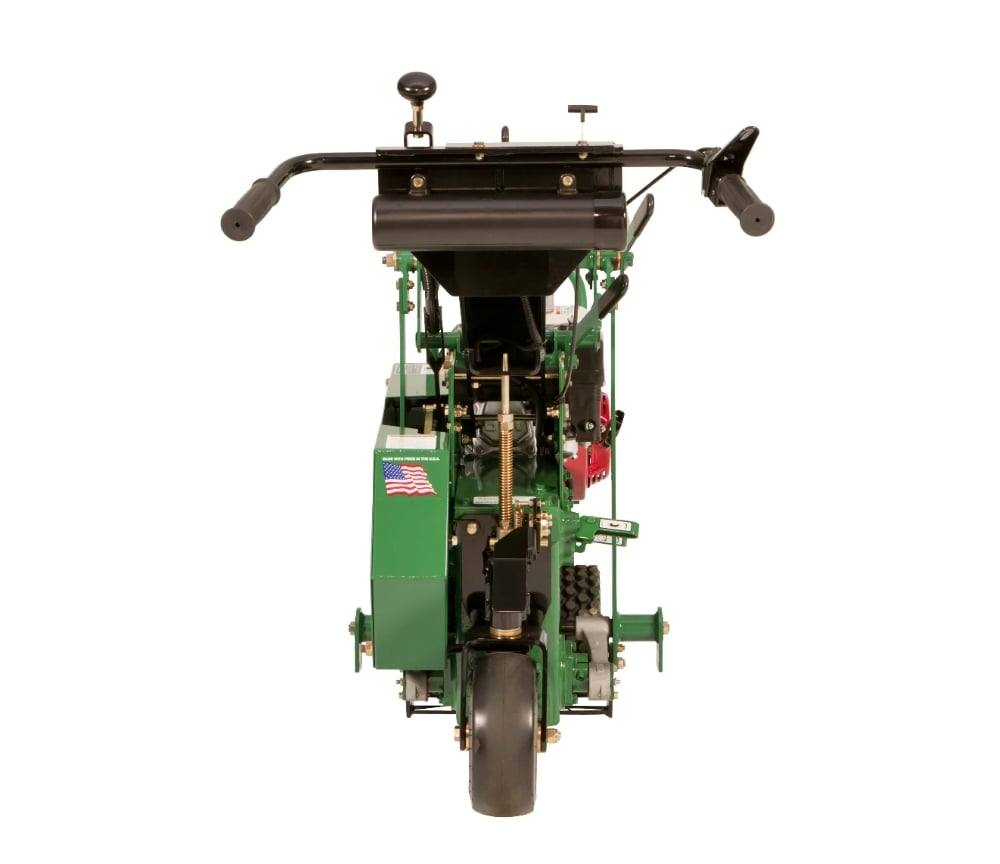

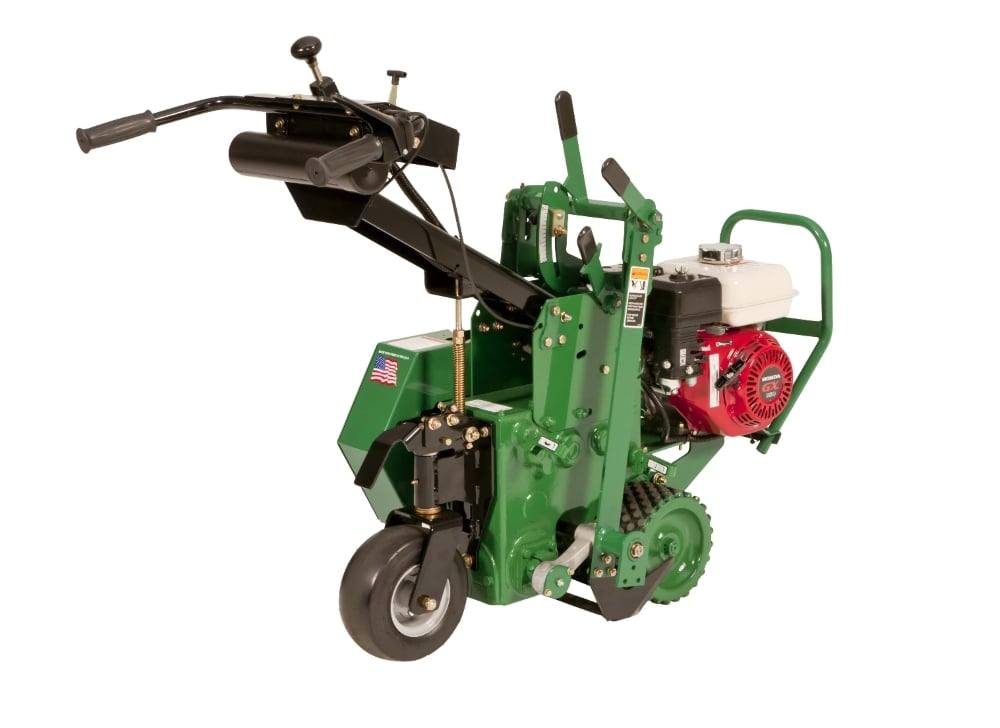

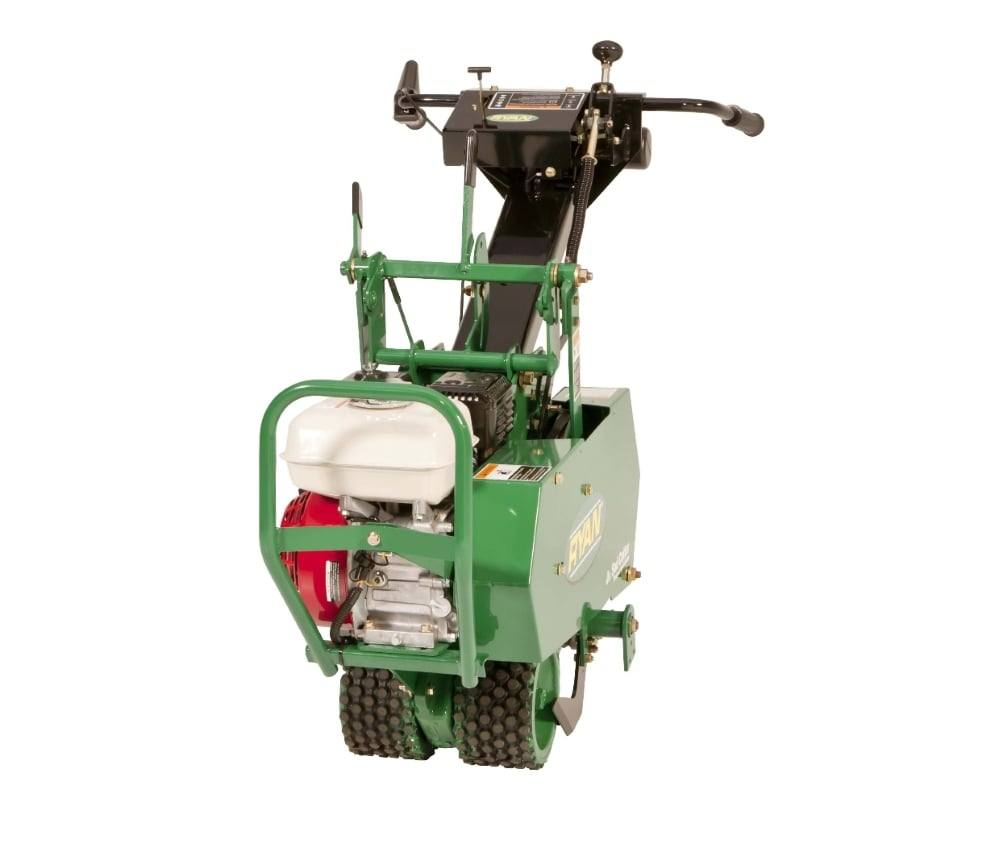

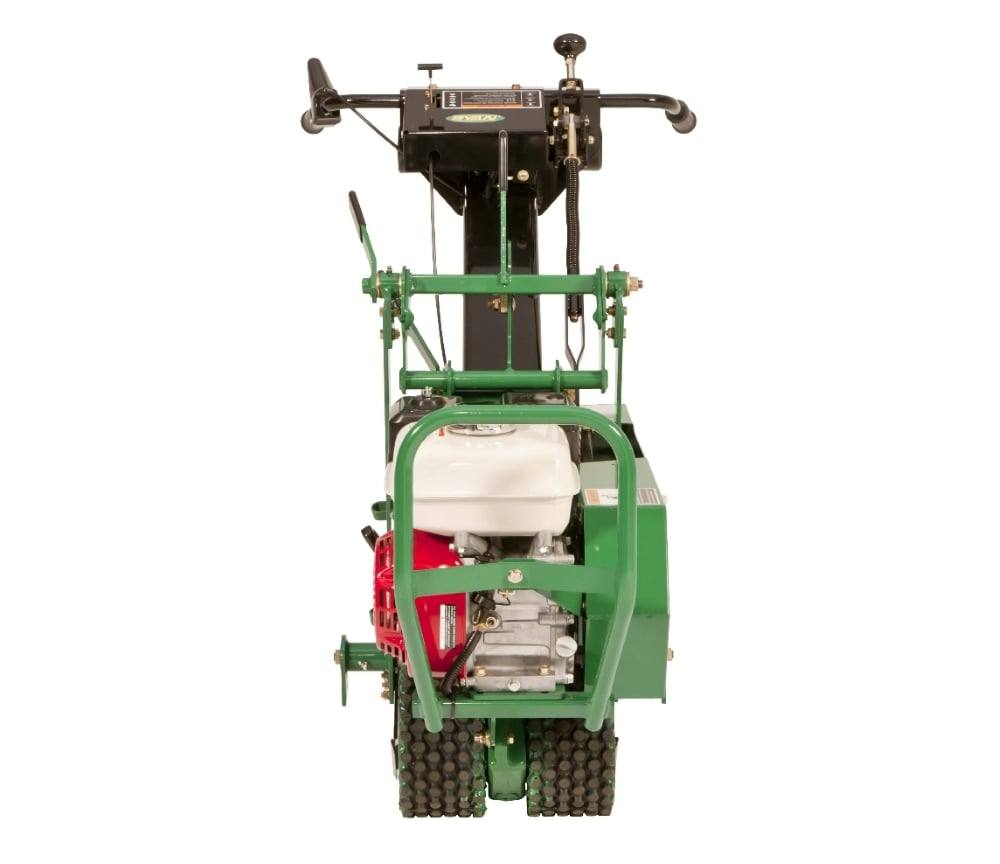

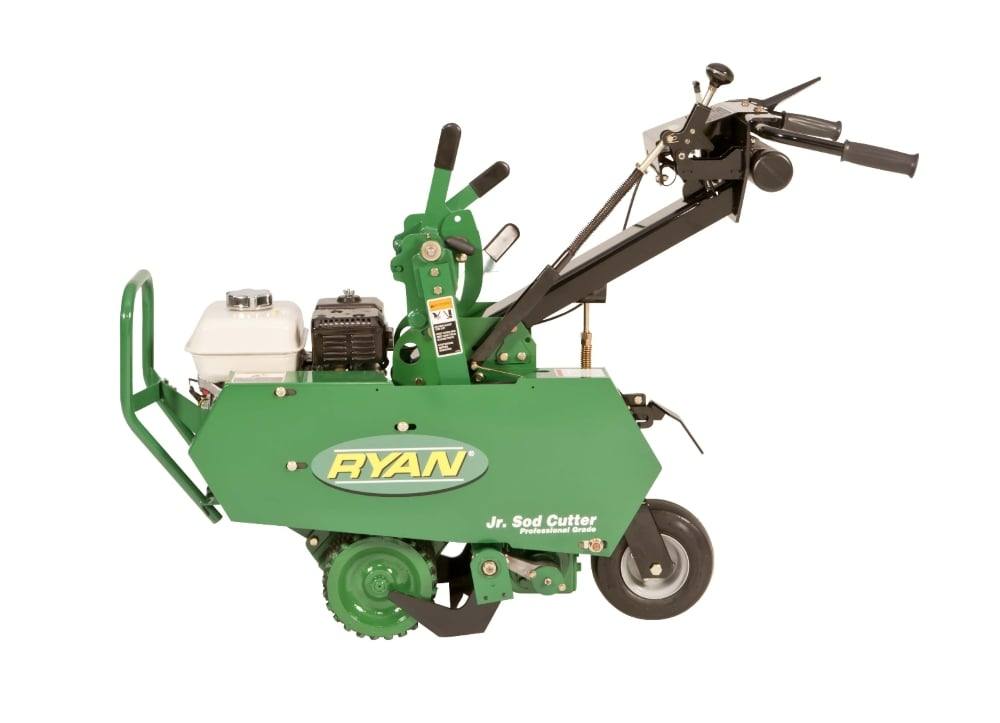

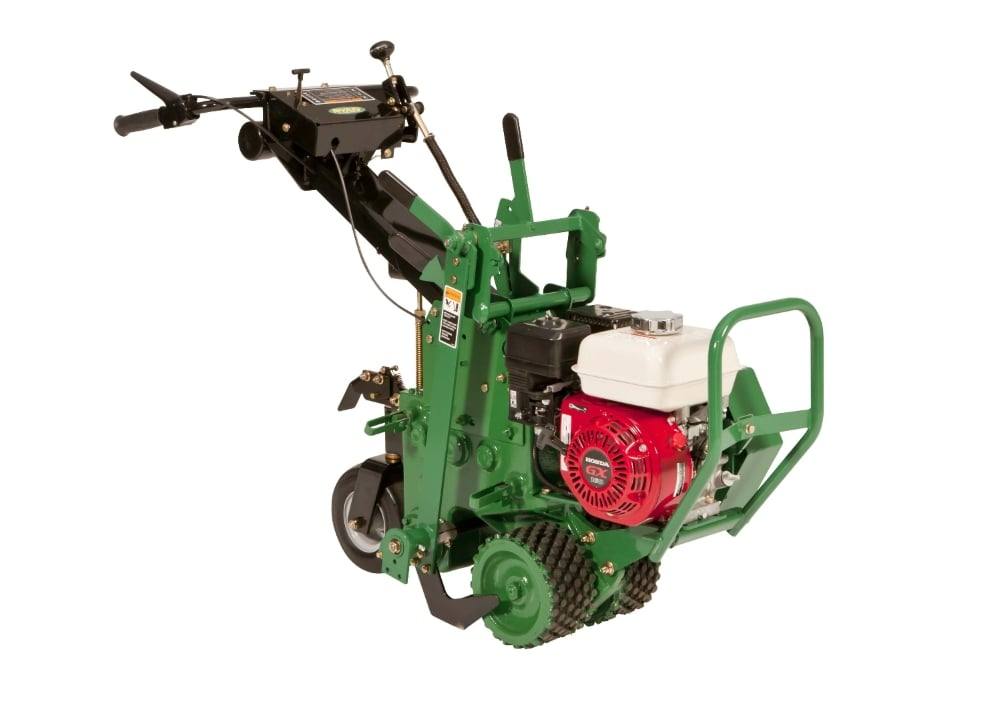

Ryan Jr. Sod Cutter 544954C 18" 4-cycle Honda Engine

SKU 544954C
$111,111.00

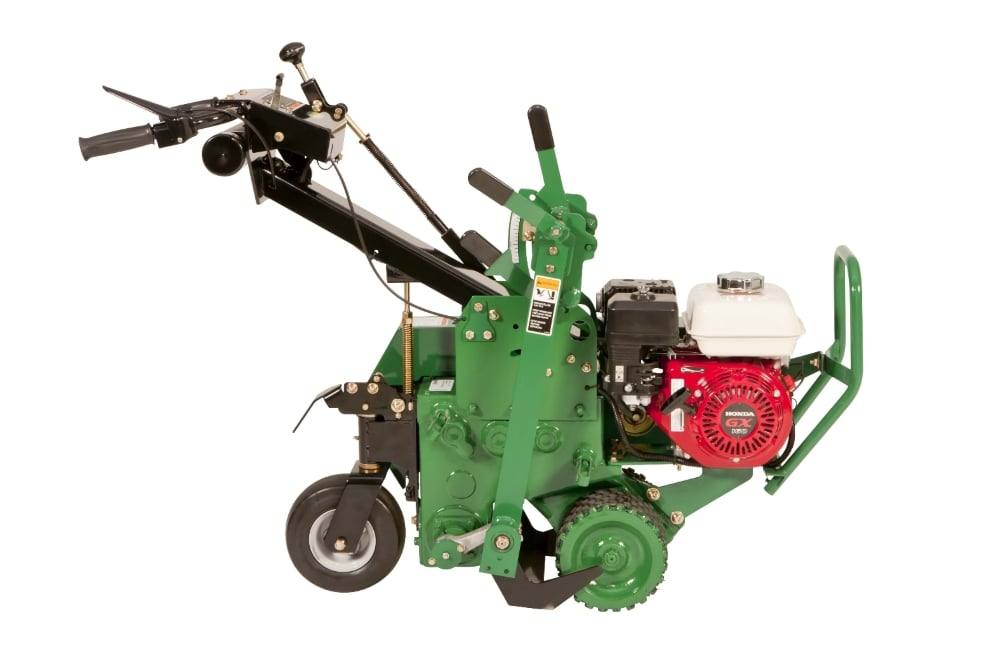

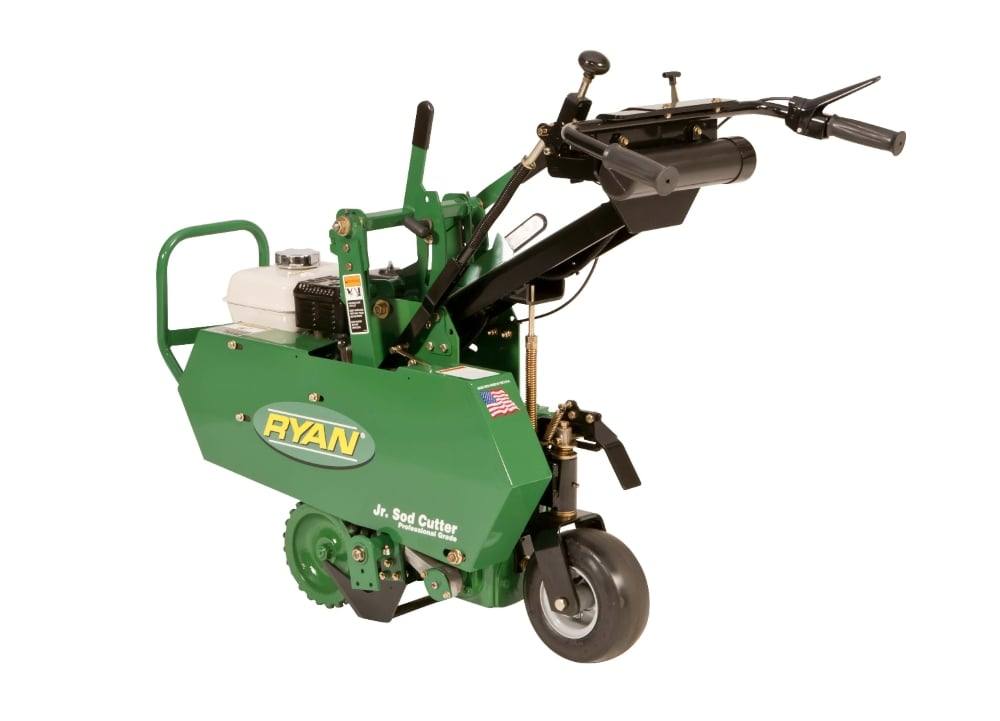

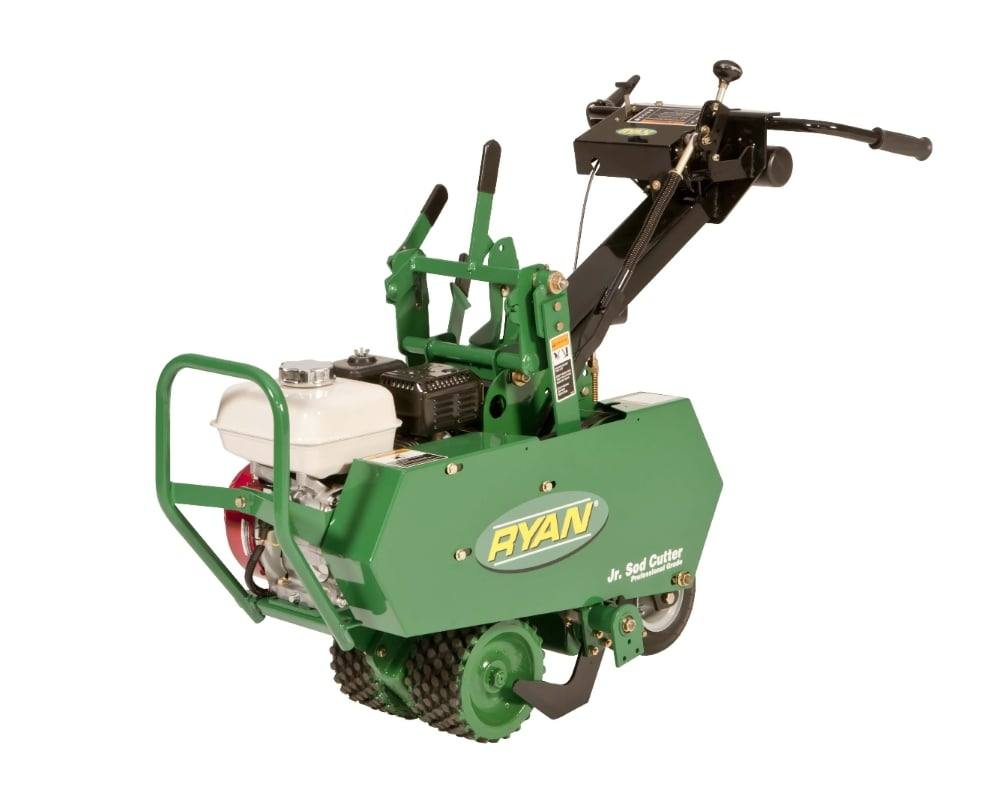

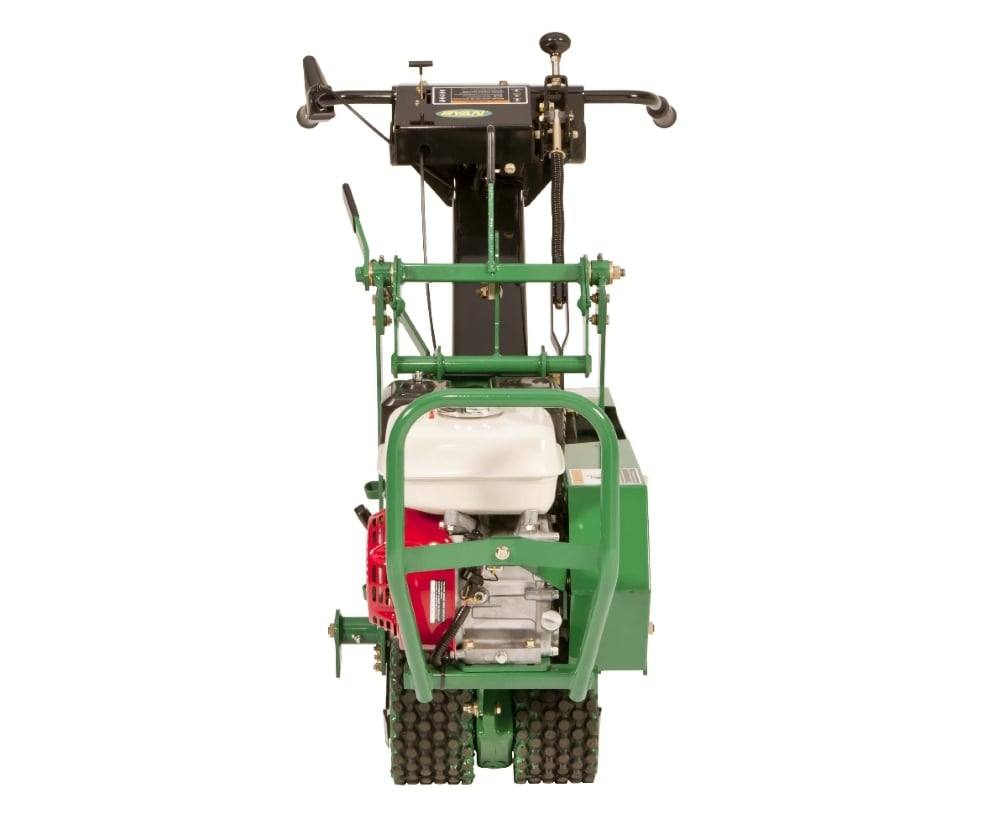

The Ryan Jr. sod cutter - 544955C provides a precise 18 inch cut and is powered by a Honda GX160 engine. The swiveling rear wheel makes for easy maneuvering and tight turns. With its adjustable depth and angle, The Ryan Jr. sod cutter can take on a variety of different landscapes with speed and reliability.

Product Description

Ryan Jr. Sod Cutter 544954C 18" Honda 4-Cycle Engine

Features:

  • Pneumatic swiveling rear wheel
  • Rubber isolation mount for absorbing the units vibration
  • Easy depth and blade angle adjustment to fit many different soil conditions
  • Good Balance
  • Easy Handling
  • Maximum traction and self-propelled action
  • Honda GX160 Engine



Specifications:

Power


Engine Model 4-Cycle Honda GX160; recoil start; on/off switch; low-oil alert
Displacement 9.9 cu in. (163 cc)
Fuel Capacity 0.82 gal. (3.1 L)
Oil Capacity 0.61 qt (0.58 L)


Unit


Clutch Spring-loaded belt tightener
Drive V-belt engine to gear case; double roller chain to blade eccentric shaft; gears and roller chain to traction wheels; transmission has separate dog clutches to engage cutting blade and traction drive
Drive Wheel (2) 8 in. (203 mm) diameter, knob tread; rubber-vulcanized to cast-iron hubs
Lubrication Oil splash in gear case
Speed Up to 135 ft/min (41 m/min)
Cutting Width 18 in. (457 mm)
Cutting Thickness                  Adjustable up to 2.5 in. (64 mm)


Dimensions


Weight 373 Lb. (169 kg.)
Width  25 in. (635 mm)
Length 53 in. (1,346 mm)
Height 40 in. (1,016 mm)



More Information

Manufacturer: Ryan
MPN: 544954C
ConditionNew
Shipping OptionsStandard Delivery
Cutting Width18" (457 mm)
Engine ManufacturerHonda
Length53 in. (1,346 mm)
Width25 in. (635 mm)
Height40 in. (1,016 mm)
