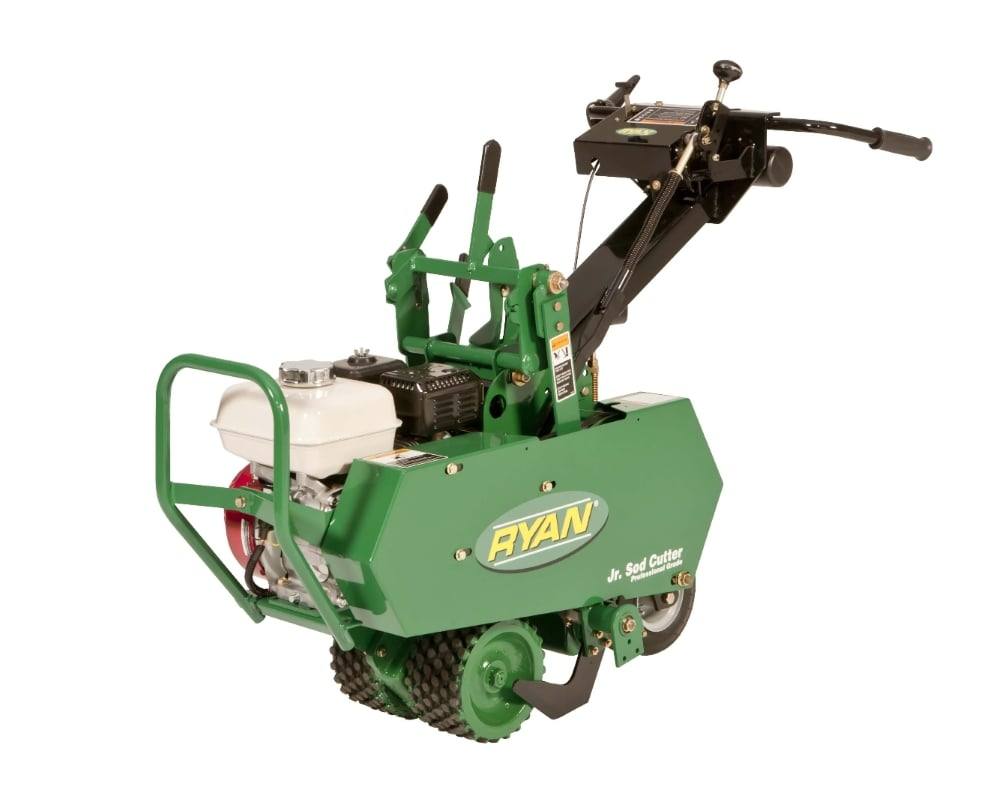

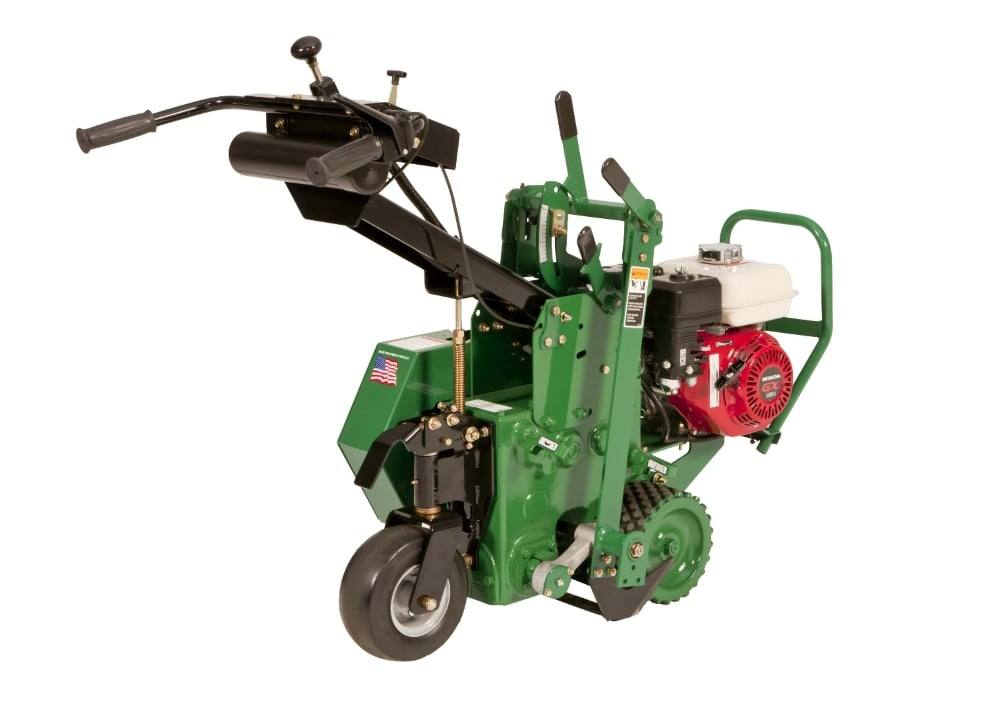

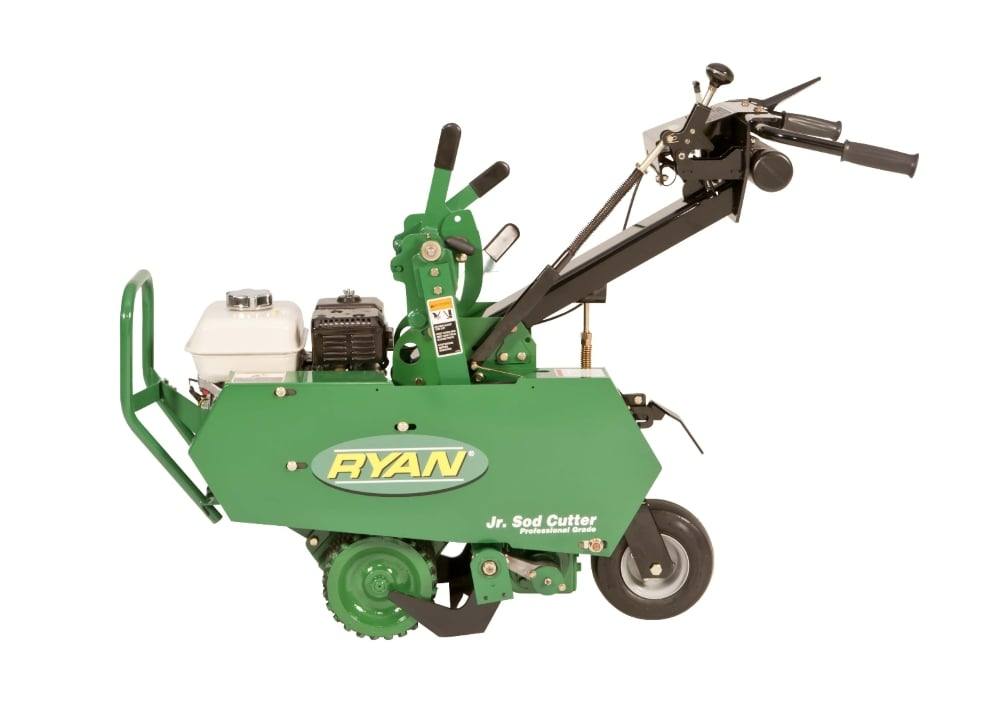

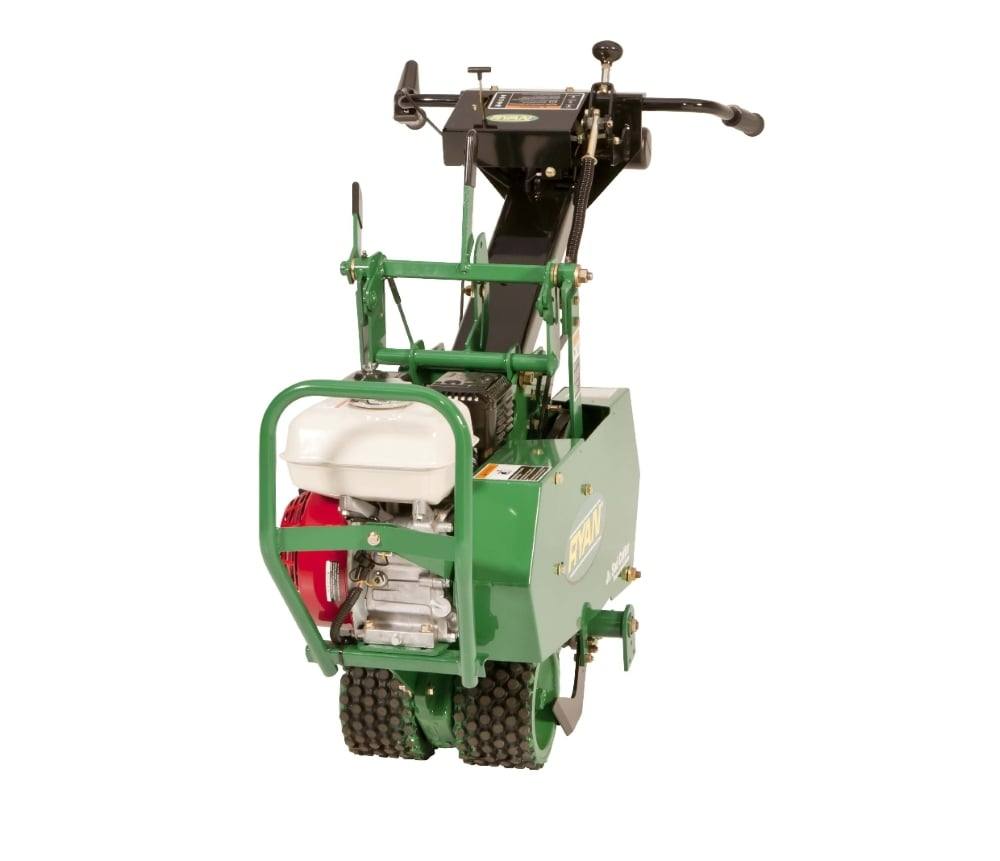

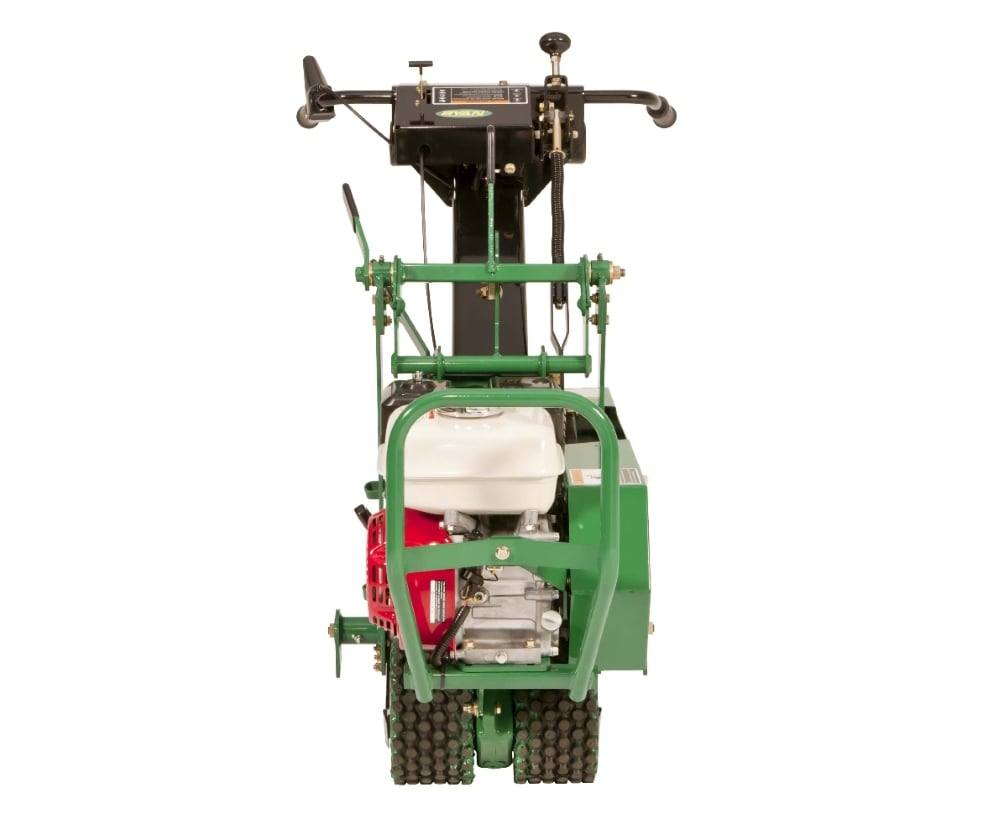

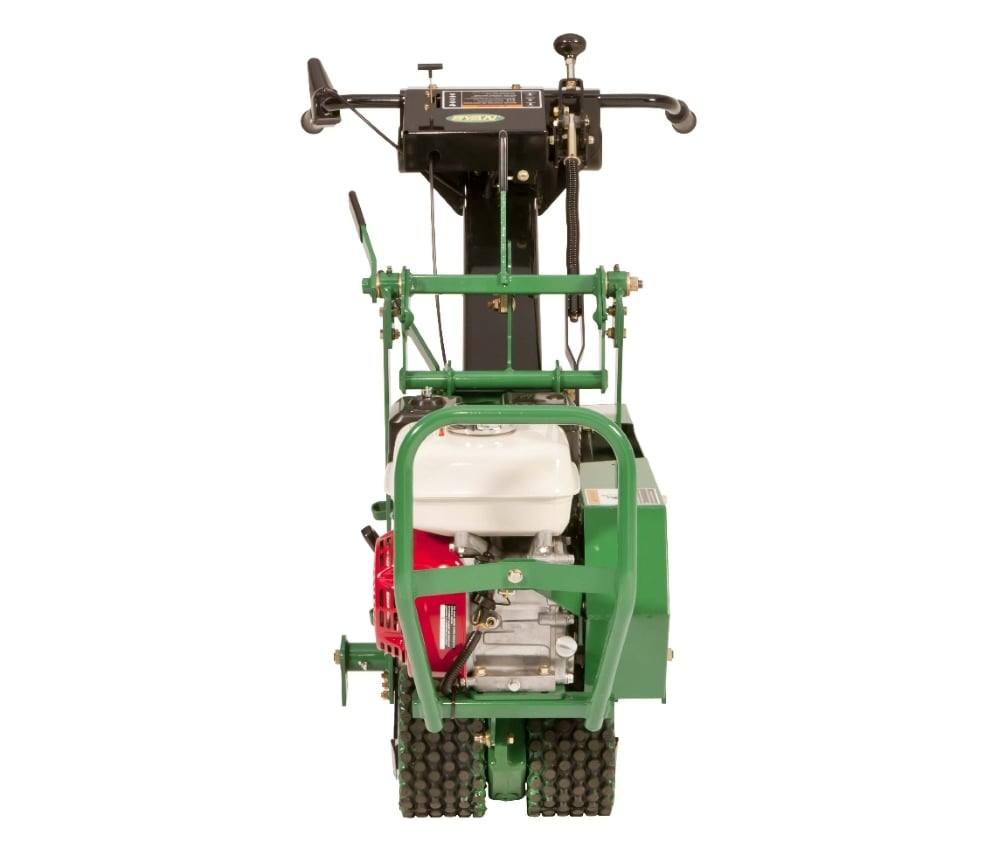

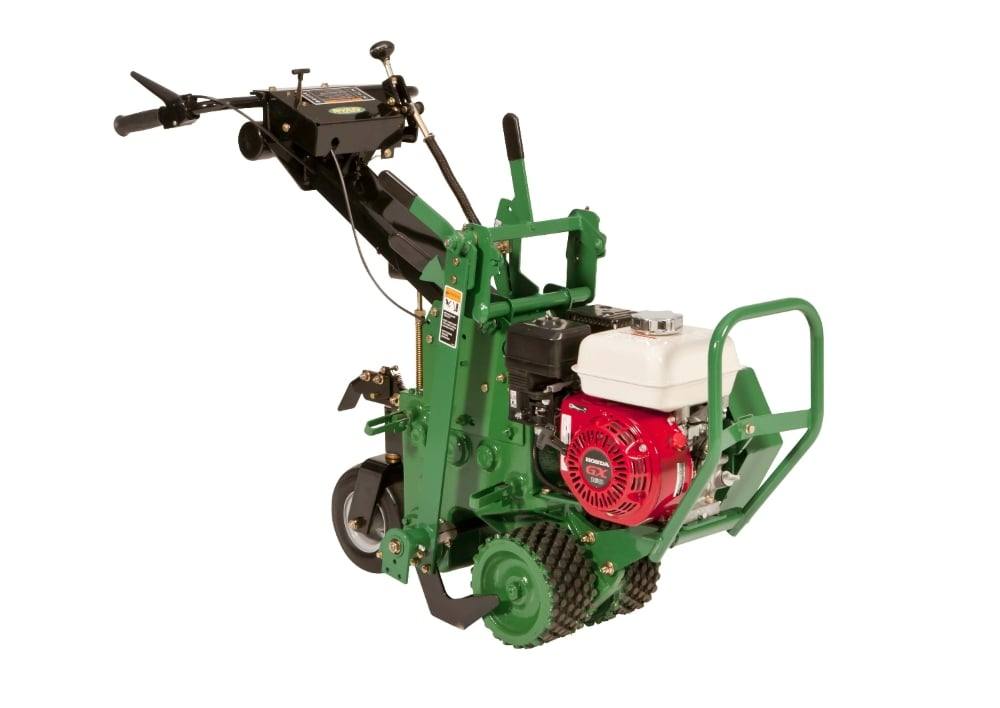

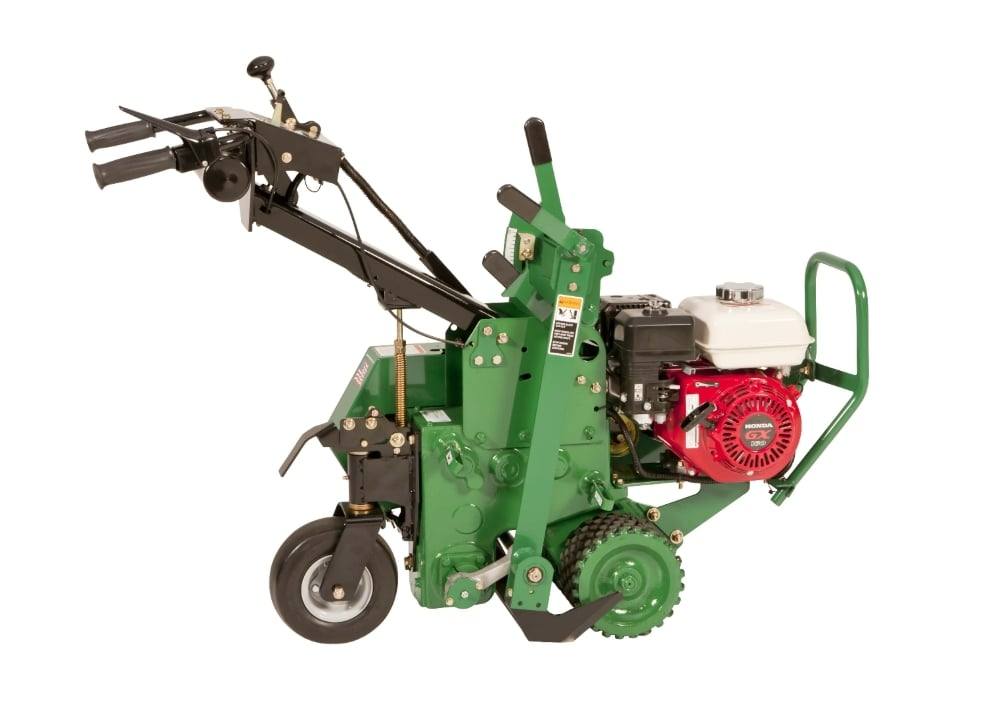

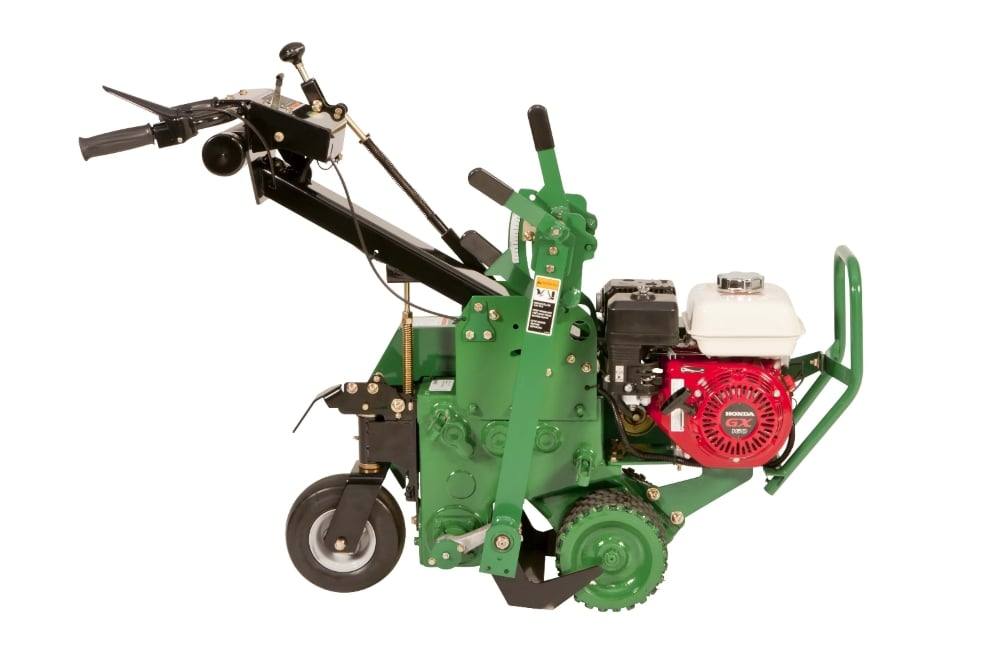

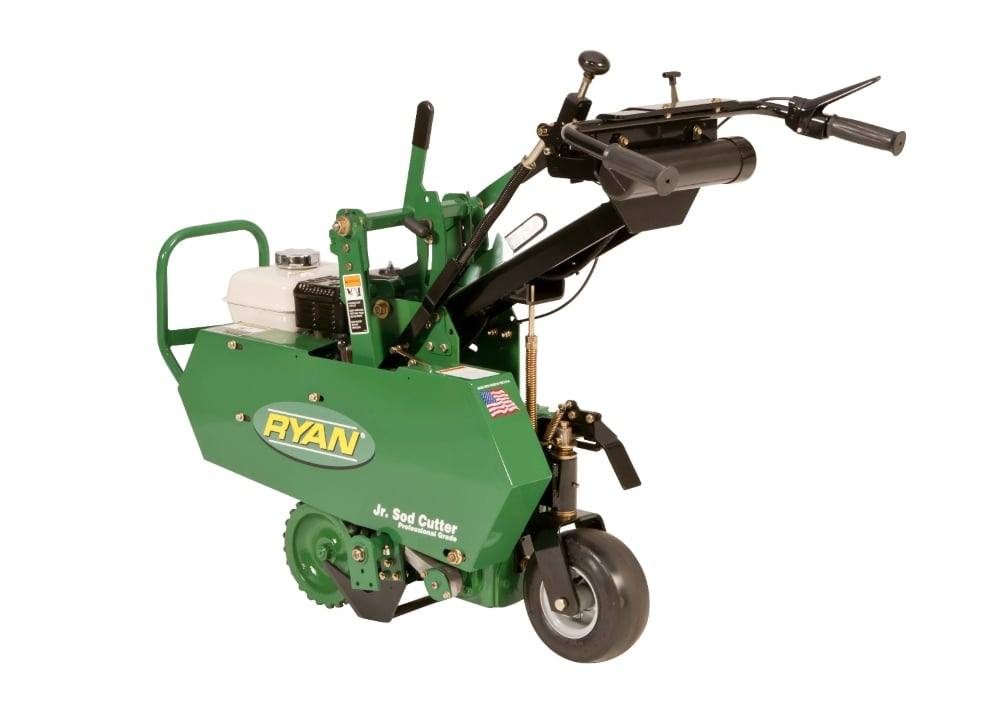

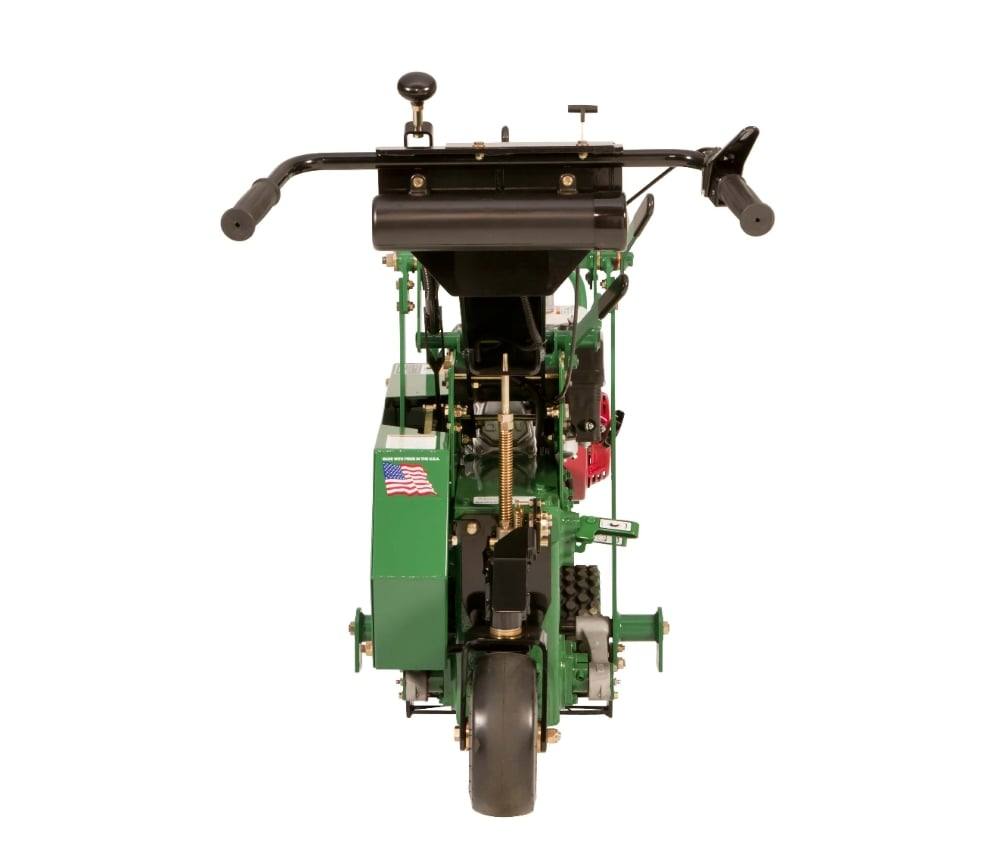

Ryan Jr. Sod Cutter 544952H 18" 4-cycle Briggs & Stratton

SKU 544952H
$111,111.00

The Ryan Jr. sod cutter 544952H provides a precise 18 inch cut and is powered by Briggs and Stratton Vanguard 6 hp engine. The swiveling rear wheel makes for easy maneuvering and tight turns. With its adjustable depth and angle, The Ryan Jr. sod cutter can take on a variety of different landscapes with speed and reliability.

Product Description

Ryan Jr 544952H Sod Cutter 18" 4-cycle Briggs & Stratton Engine

Features:

  • Pneumatic swiveling rear wheel
  • Rubber isolation mount for absorbing the units vibration
  • Easy depth and blade angle adjustment to fit many different soil conditions
  • Good Balance
  • Easy Handling
  • Maximum traction and self-propelled action
  • 6-hp Briggs & Stratton® Vanguard Engine



Specifications:

Power


Engine Model 4-Cycle Vanguard™; recoil start; dual-air cleaner; low-tone muffler
Displacement 12.5 cu in. (205 cc)
Fuel Capacity 0.87 gal. (3.3 L)
Oil Capacity 0.63 qt (0.6 L)


Unit


Clutch Spring-loaded belt tightener
Drive V-belt engine to gear case; double roller chain to blade eccentric shaft; gears and roller chain to traction wheels; transmission has separate dog clutches to engage cutting blade and traction drive
Drive Wheel (2) 8 in. (203 mm) diameter, knob tread; rubber-vulcanized to cast-iron hubs
Lubrication Oil splash in gear case
Speed Up to 135 ft/min (41 m/min)
Cutting Width 18 in. (457 mm)
Cutting Thickness                  Adjustable up to 2.5 in. (64 mm)


Dimensions


Weight 373 Lb. (169 kg.)
Width  25 in. (635 mm)
Length 53 in. (1,346 mm)
Height 40 in. (1,016 mm)







More Information

Manufacturer: Ryan
MPN: 544952H
ConditionNew
Shipping OptionsStandard Delivery
Cutting Width 18 in. (457 mm)
Engine ManufacturerBriggs and Stratton
Length53 in. (1,346 mm)
Width25 in. (635 mm)
Height40 in. (1,016 mm)
