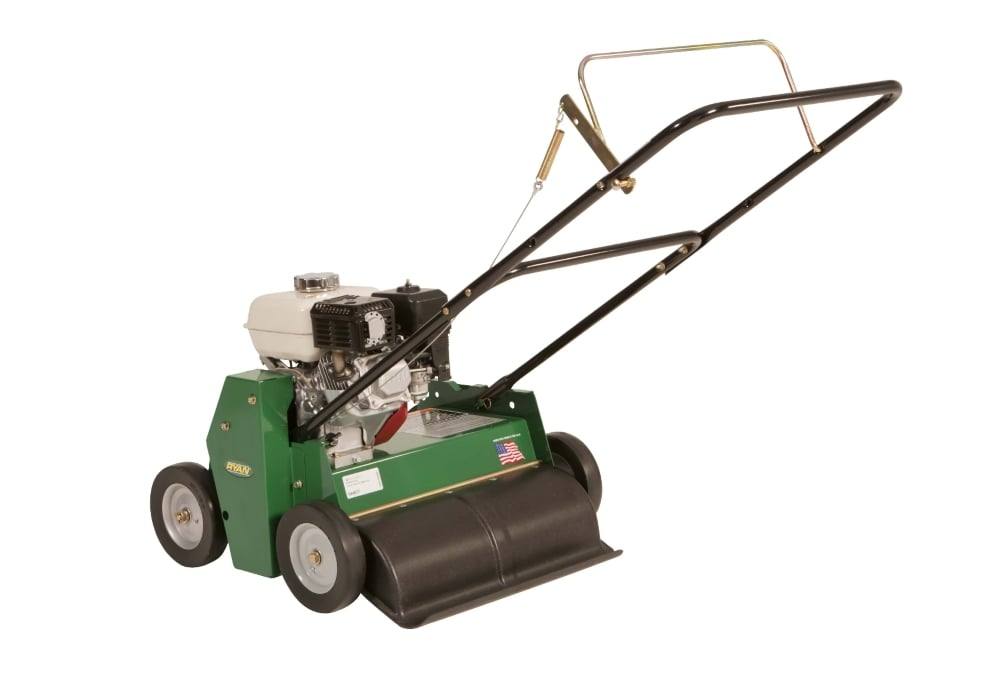

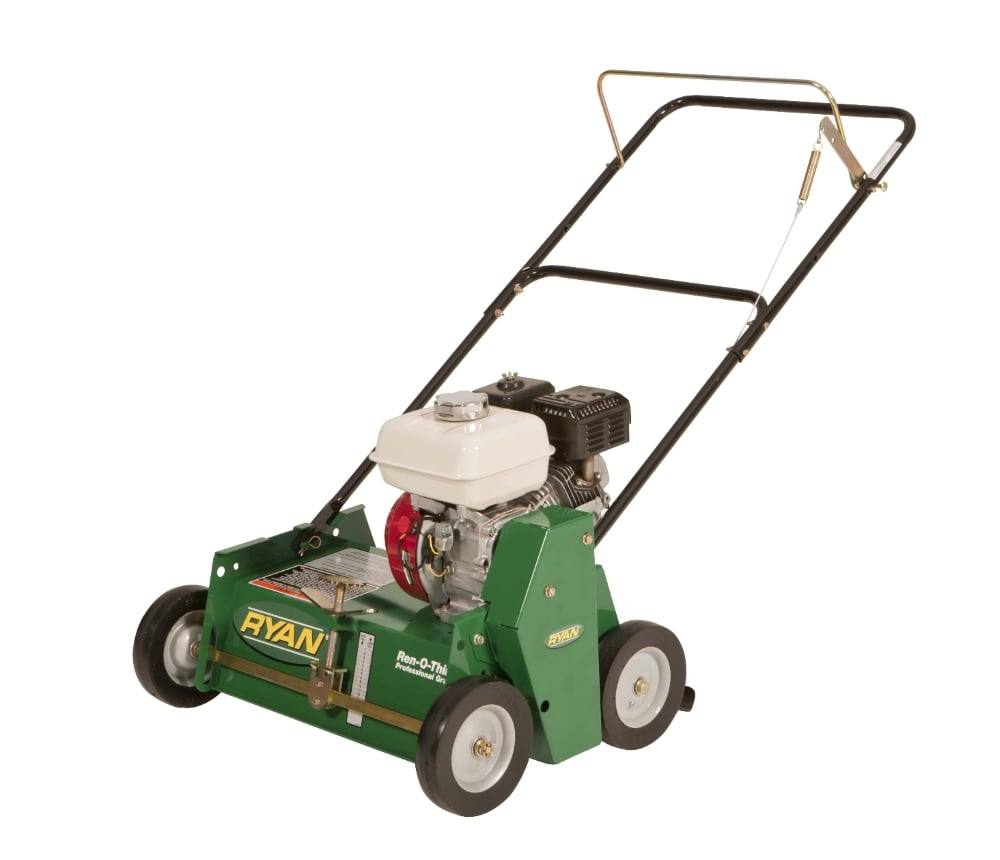

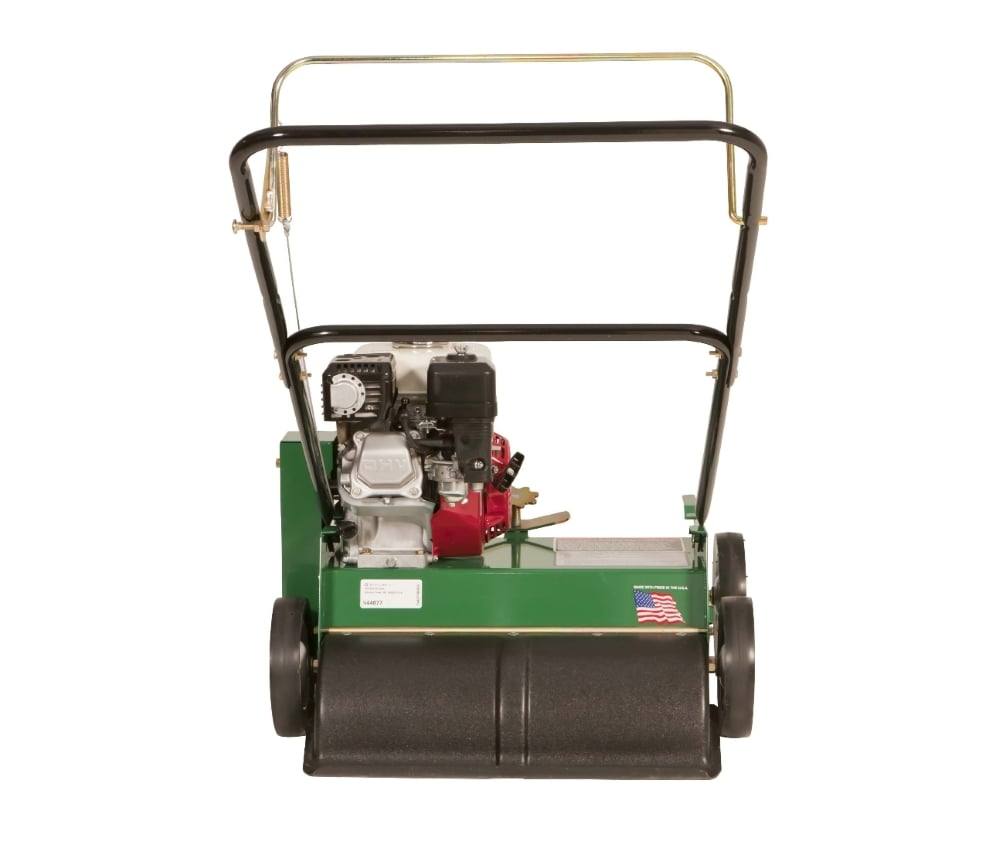

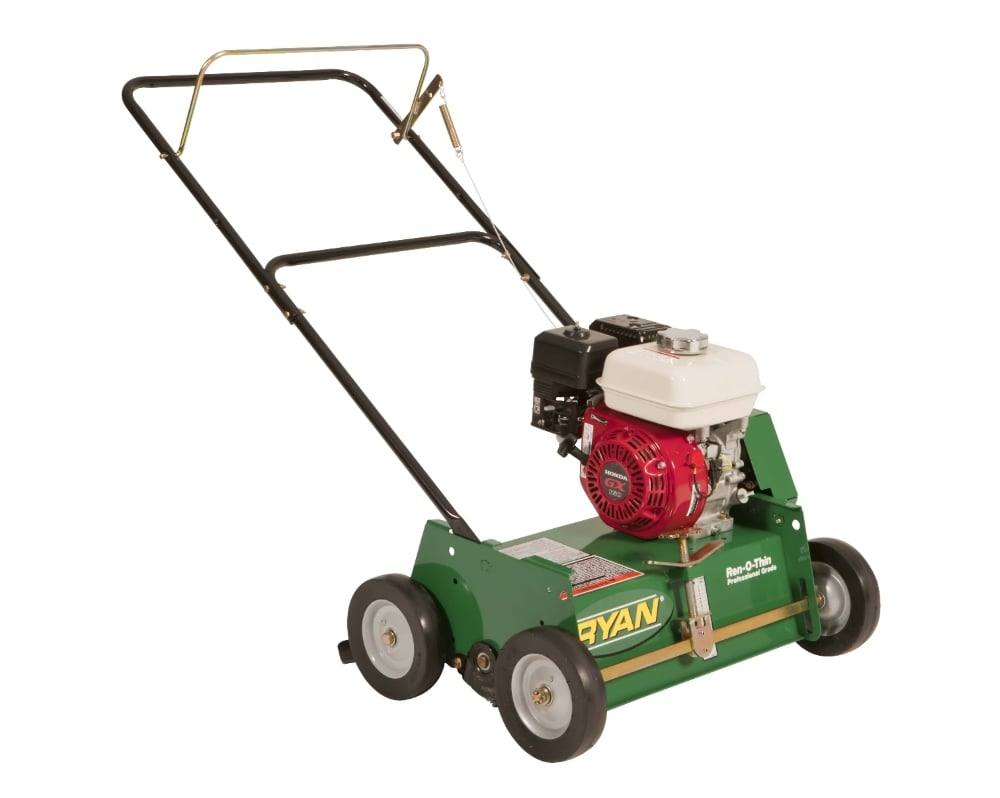

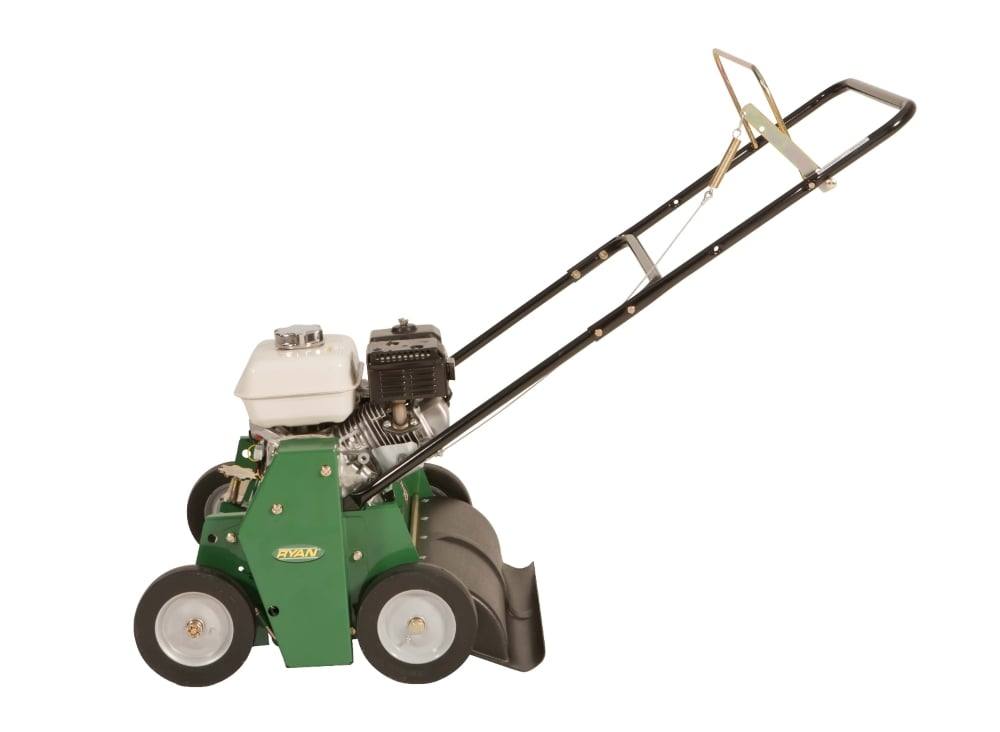

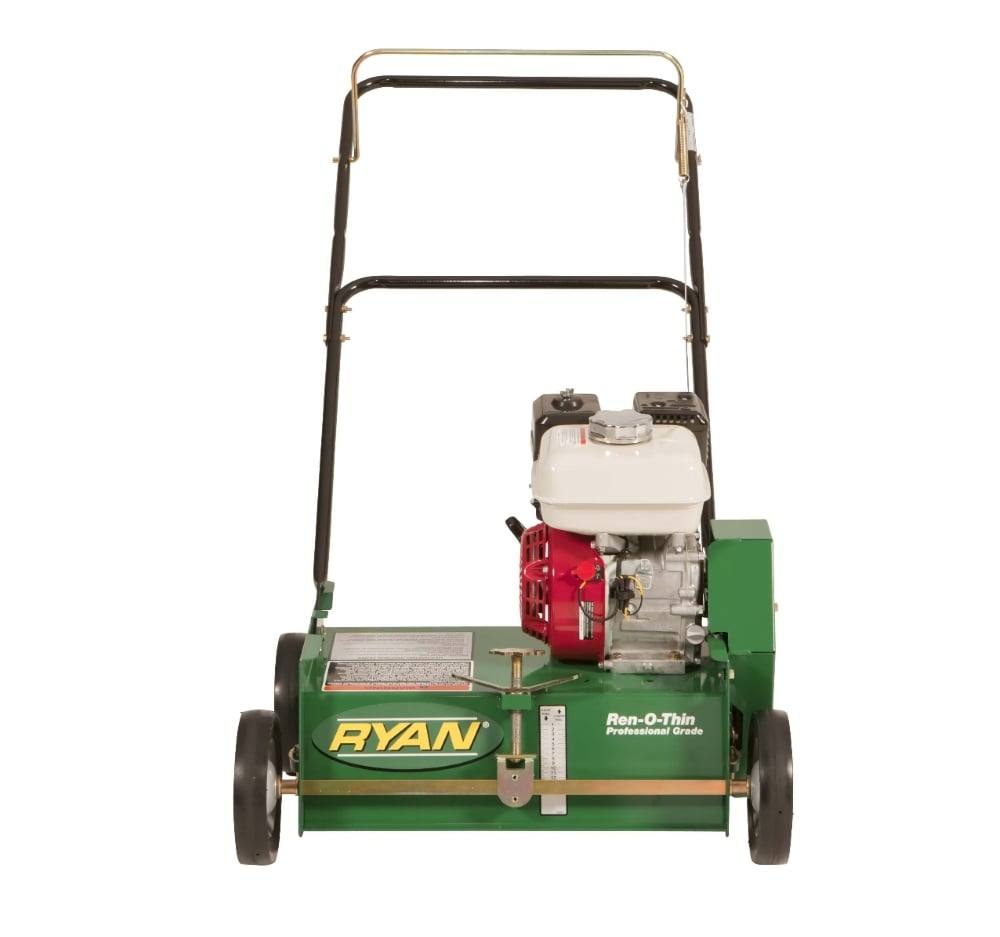

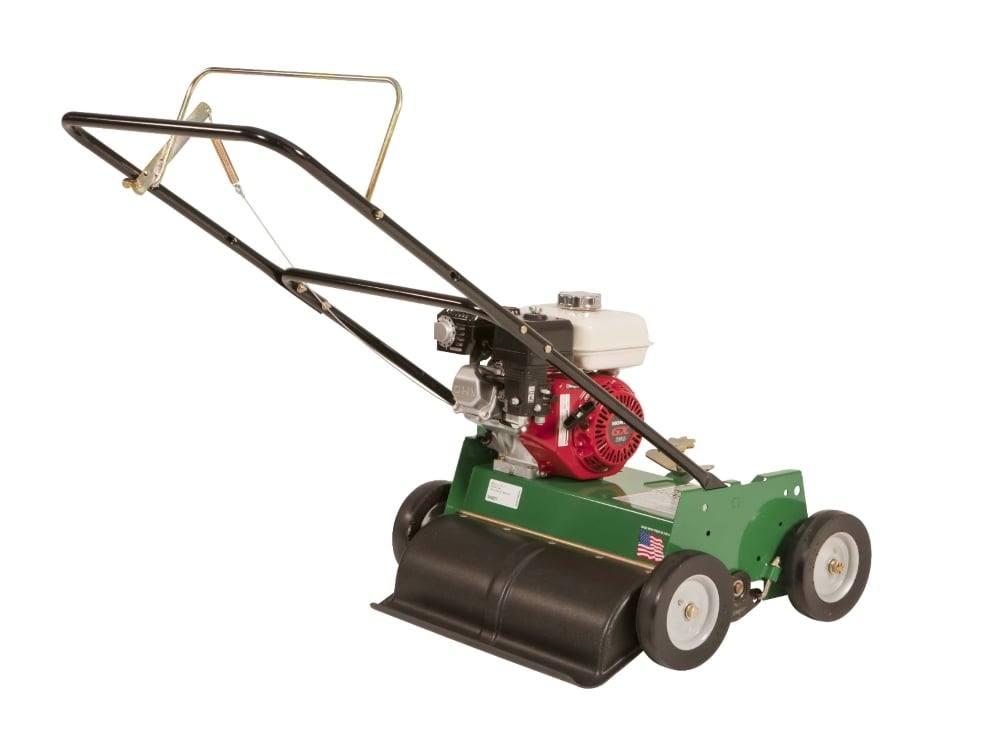

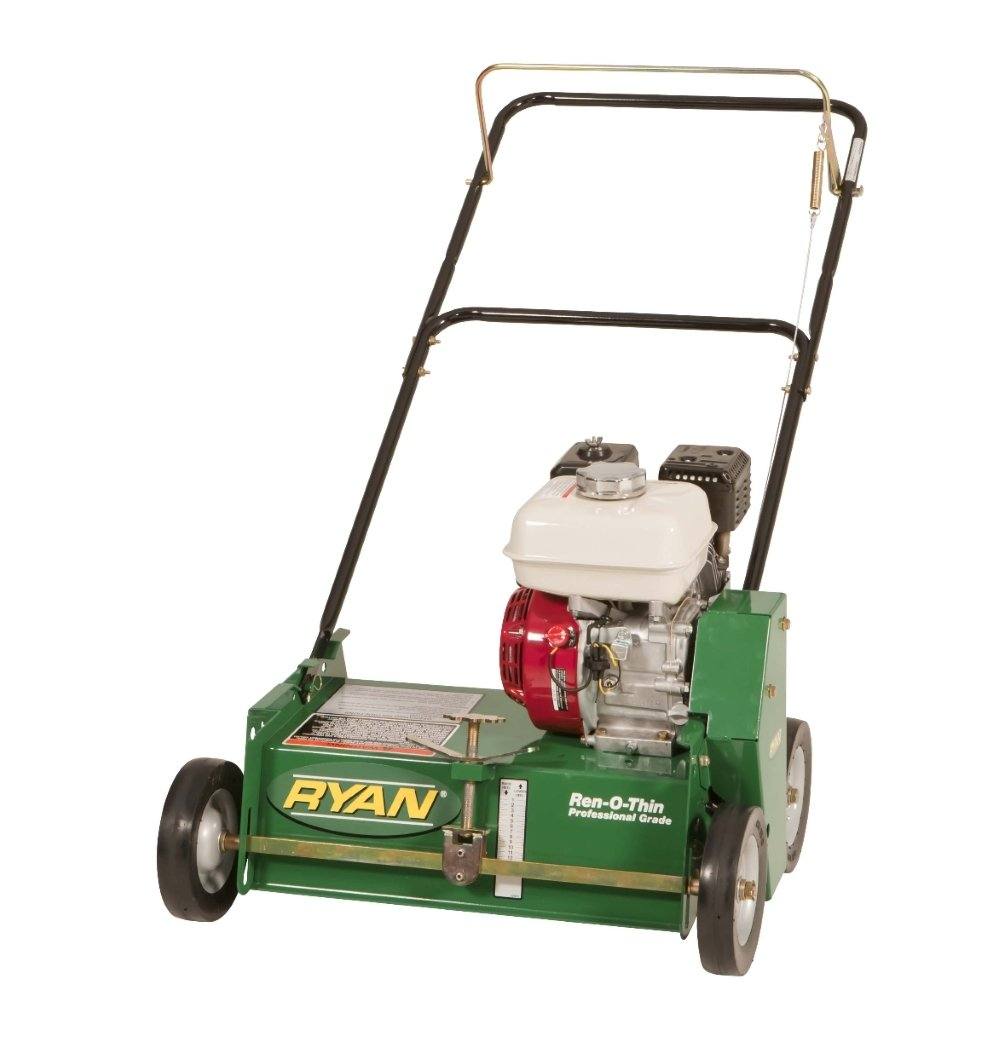

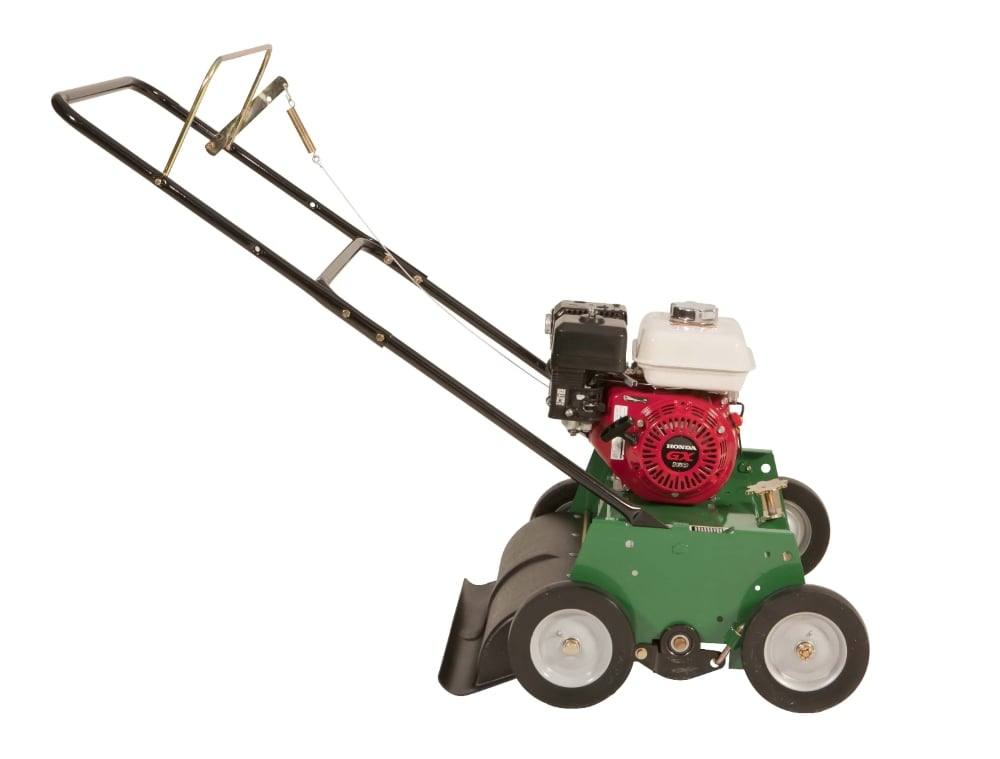

Ryan Ren-O-Thin Spring Rake 554872 4-cycle Briggs & Stratton

SKU 554872
$111,111.00

This Ryan Ren-O-Thin 554872 power rake with a Briggs & Stratton Vanguard engine offers power and performance to get the job done. Adjustable height options makes this unit customize able to better suit your turf.

Product Description

Ryan Ren-O-Thin Spring Rake 554872 4-cycle Briggs & Stratton

Features:

  • Spring Type
  • 4-Cycle vanguard engine
  • Dual-air cleaner
  • Low-tone muffler
  • 18 inch operating width
  • Adjustable height options
  • Bubble Shield to avoid turf build up under the deck
  • Handle folds for easy storage
  • Tines can be lifted and locked for transportation
  • High performance and durability
  • Optional seed box



Specifications:

Power


Engine Model 4-Cycle Vanguard™; recoil start; dual-air cleaner; low-tone muffler
Displacement 12.5 cu in. (205 cc)
Fuel Capacity 1.08 gal. (4.1 L)
Oil Capacity 0.63 qt (0.6 L)


Unit


Clutch Spring-loaded belt tightener
Drive A-section V-belt from engine to reel
Cutting Depth Reel adjustable from 1 in. (25 mm) above ground to 0.875 in. (22 mm) into ground; microscrew adjustment
Tires (4) 8 x 1.75 semi-pneumatic, smooth tread
Operation Width               18 in. (457 mm)


Reel/Blades


Spring 0.109 in. (2.76 mm) at 0.75 in. (19 mm) spacing
Blades Hardened, high-carbon steel


Dimensions


Weight: Wet 131 lb (60 kg)
Width  27 in. (686 mm)
Length 55.5 in. (1,410 mm)
Height 39.0 in. (991 mm)

More Information

Manufacturer: Ryan
MPN: 554872
ConditionNew
Shipping OptionsStandard Delivery
Engine ManufacturerVanguard
Length55.5 in. (1,410 mm)
Width27 in. (686 mm)
Height39 in. (991 mm)
