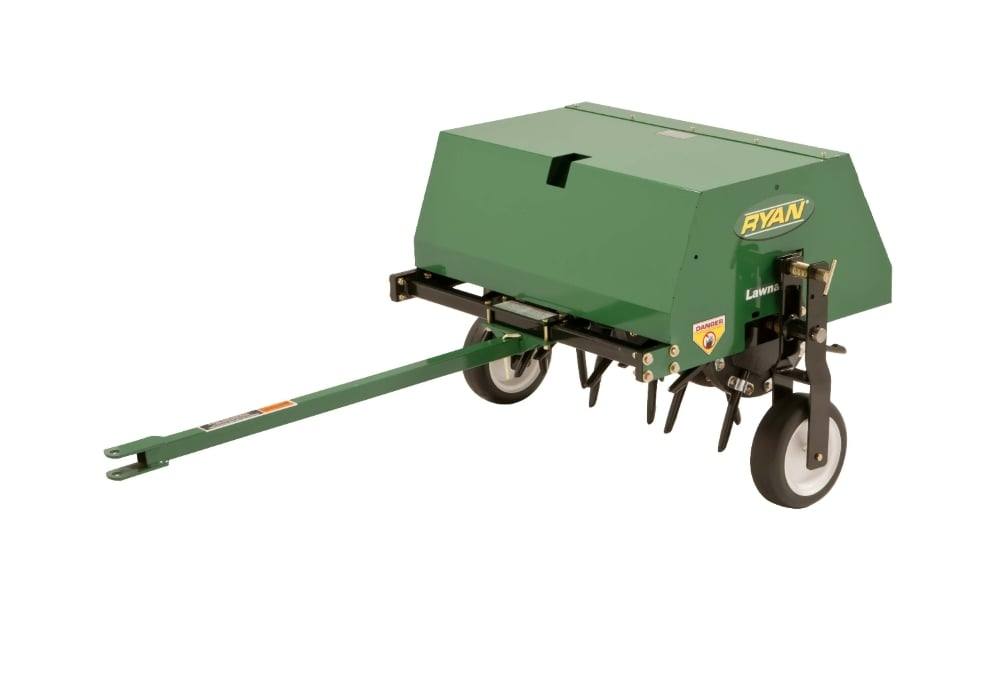

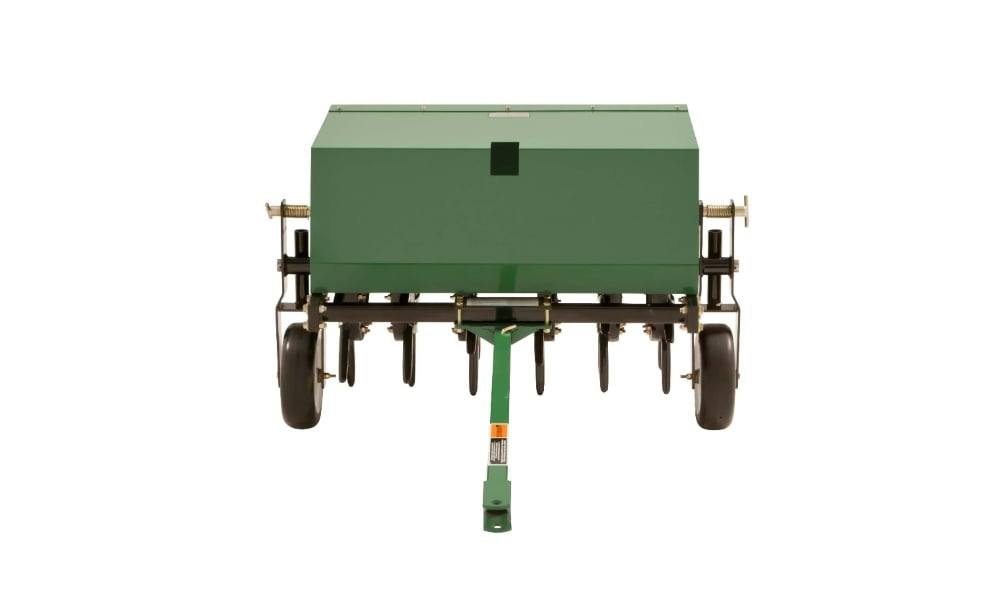

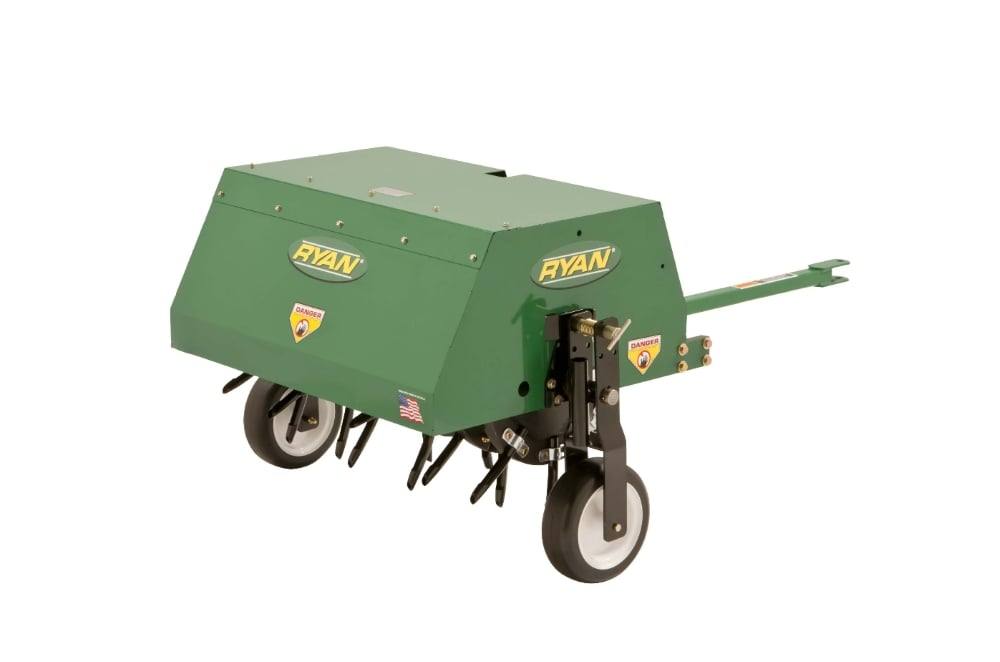

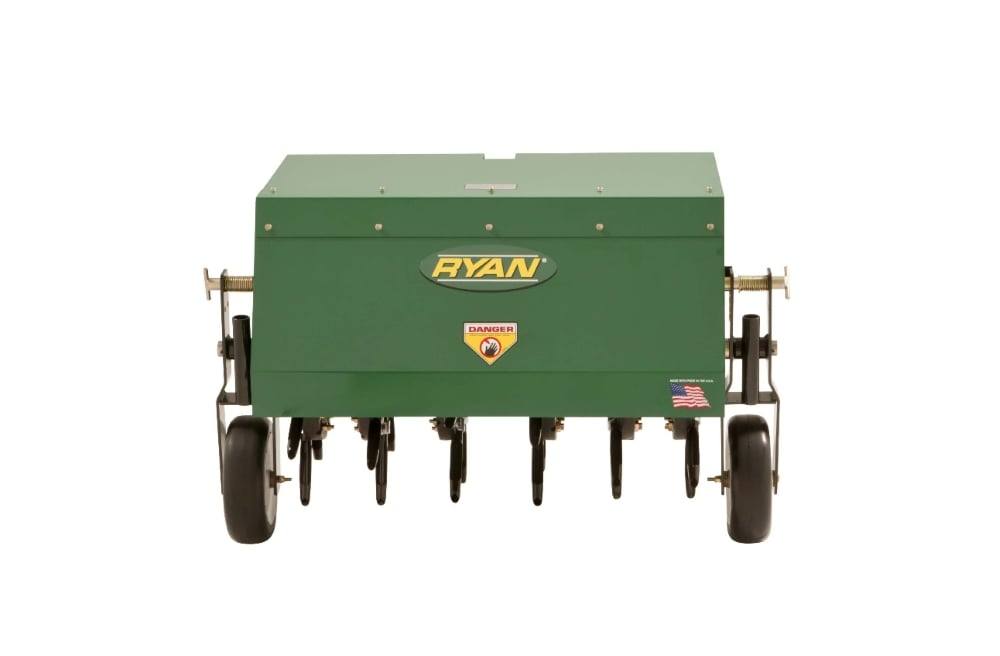

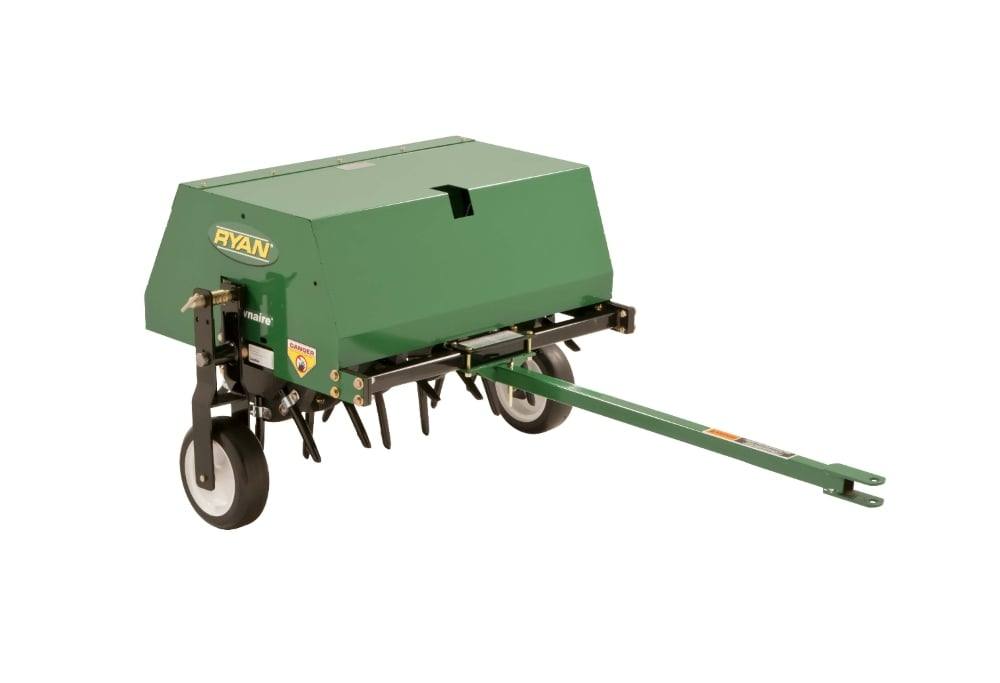

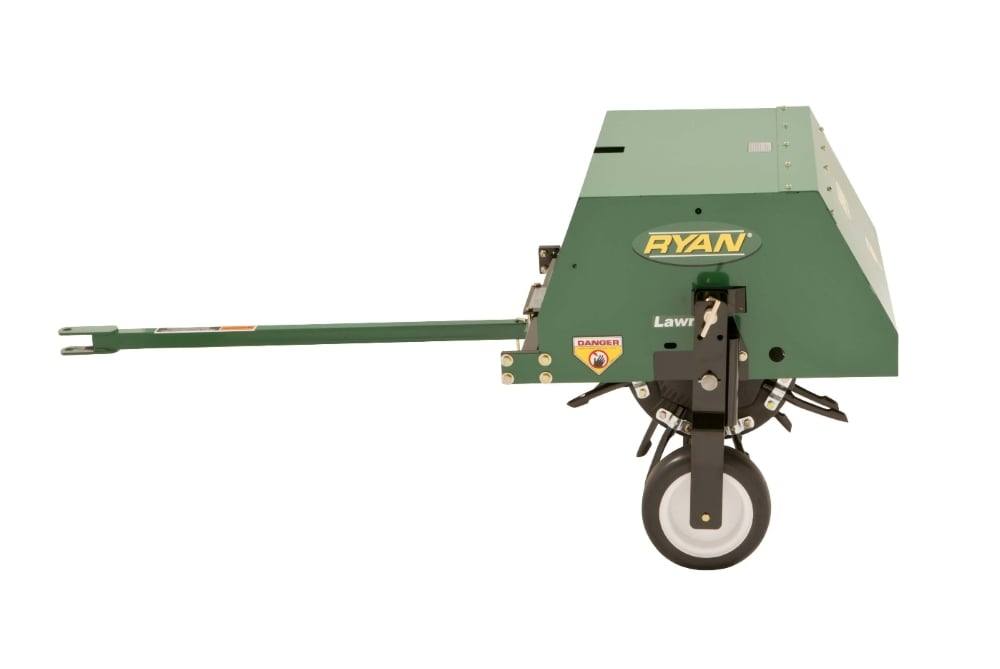

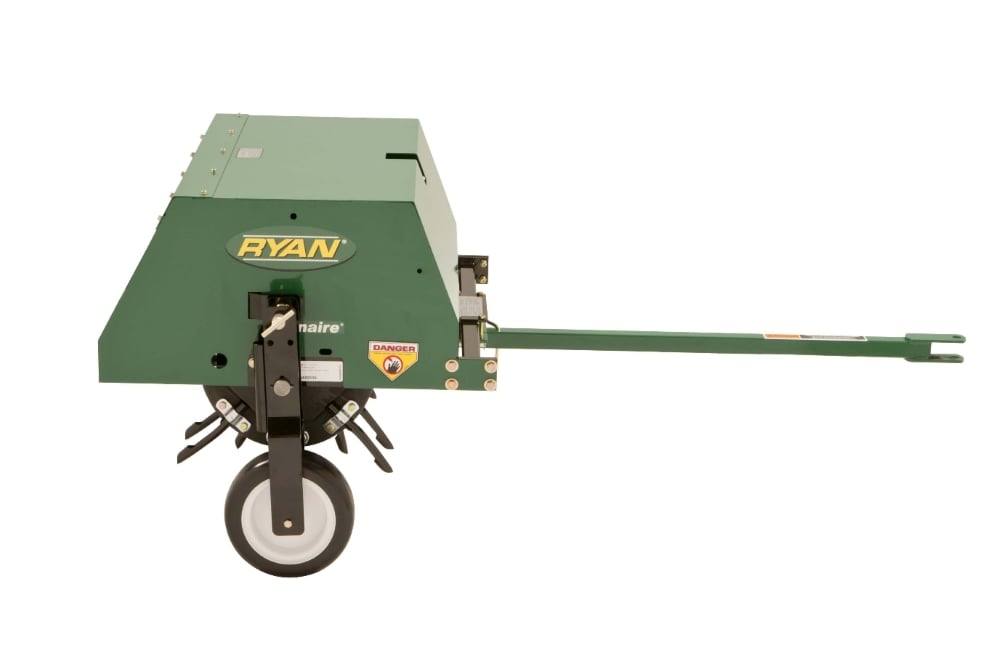

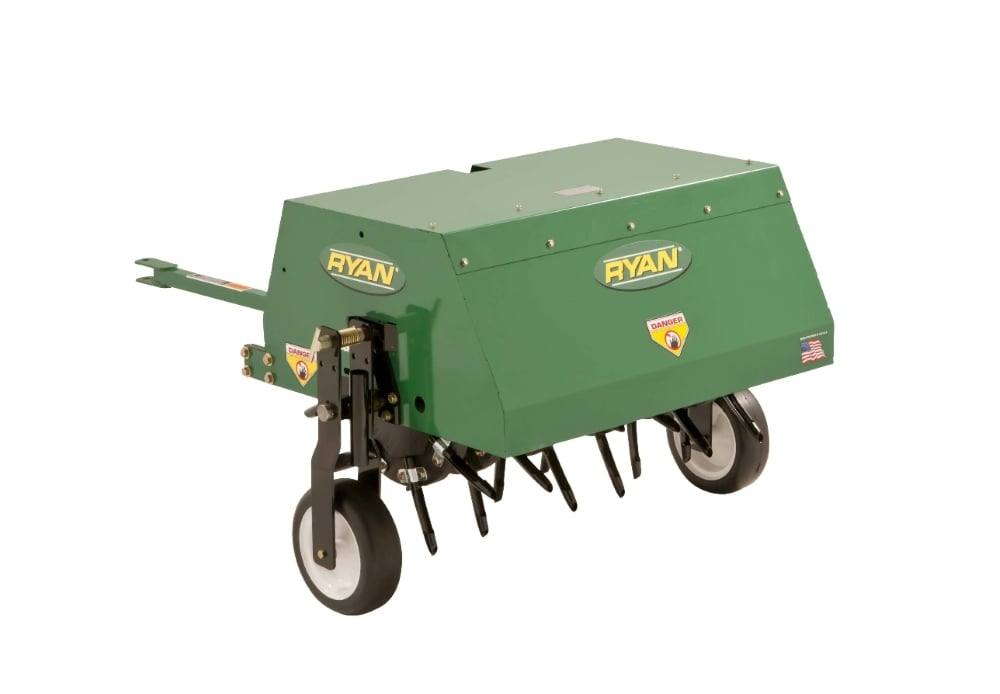

Ryan 544860A 36" Lawnaire Manual Lift Tow Behind Aerator

SKU 544860A
$111,111.00

The Ryan 36 in. Lawnaire Manual Lift Tow Behind can aerate up to two aces per hour. You can customize your aerator by choosing coring, spooning or slicing tines specific to you needs. The Ryan Lawnaire tow-behind is effortless, durable and efficient.

Product Description

Ryan 544860A 36" Lawnaire Manual Lift Tow Behind Aerator

Features

  • 36-inch aerating path.
  • Choice of manual or hydraulic lift to raise/lower transport tires.
  • Coring, slicing or open-spoon tines available (3/4" coring tines)
  • Up to 4-inch soil penetration.
  • Manual Lift
  • Other lifting Mechanisms available
  • Independently mounted tine wheels



Specifications:

Unit


Frame 1.5 in. (38 mm) sq. x 0.1875 in. (5 mm) wall tube
Hitch Clevisª and pin type
Aerating Wheel Axel 1.25 in. (32 mm) diameter
Transport Wheel 0.75 in. (19 mm) diameter
Aerating Wheels Cast iron with sintered bushing; pressure lubrication fitting; grooved for mounting aerating tines on both sides; each wheel weighs 75 lbs. (34 kg)

Tines

 Eight per wheel (48 total); one set of 0.75 in. (19 mm) diameter coring tines standard; optional 0.5 in. (13 mm) diameter coring, 7.5 in. (191 mm) slicing or 6 in. (152 mm) open-spoon; tines are formed from austemper-hardened alloy steel; wheels can be mounted with double tines; 16 per wheel (96 total)
Aerating Width 36 in. (914 mm)
Coring Depth Up to 4 in. (102 mm)
Aeration Pattern 6 in. x 6 in. (152 mm x 152 mm) with single tines
Holes per Square Foot Up to nine with single tines
Productivity 1.5 acres/hr. (0.6 ha/h) at 4 mph (6.4 km/h)
Towing Speed 10 mph (16 km/h) maximum
Transport Lift Wheels are pivotable about extended axle shaft using removable lever
Transport Tires 4.10/3.50-4, 2-ply, pneumatic tires with ball bearings
Options  manual lift


Dimensions



Weight 500 lbs. (227 kg)
Width 46 in. (1.2 m)
Length 68.5 in. (1.7 m)
Height 31 in. (787 mm)

More Information

Manufacturer: Ryan
MPN: 544860A
ConditionNew
Shipping OptionsStandard Delivery
