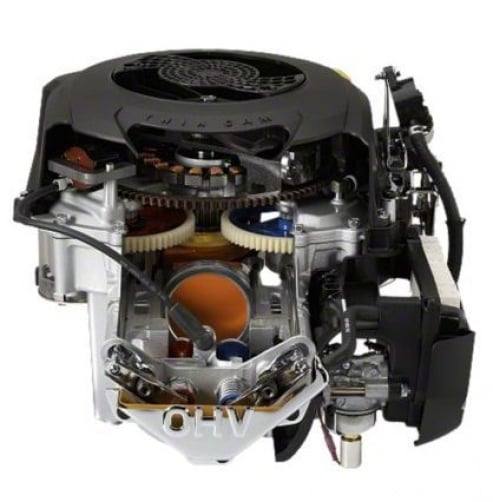

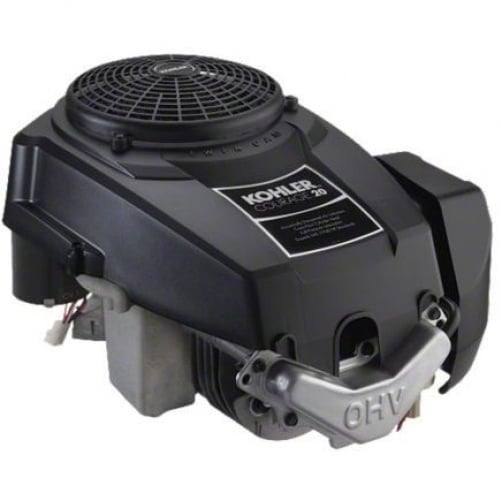

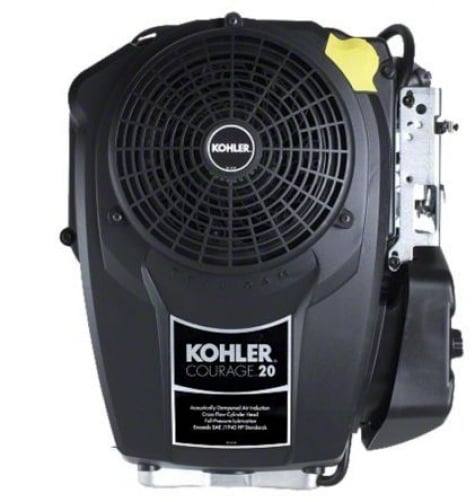

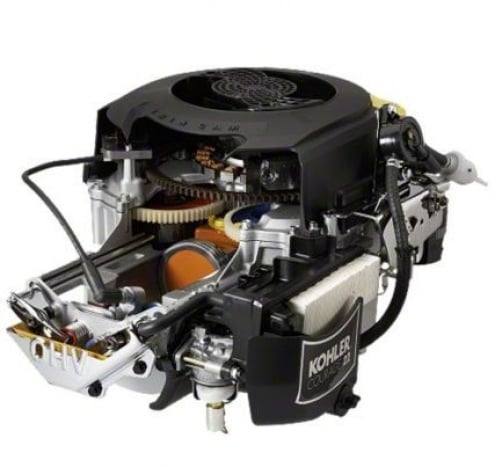

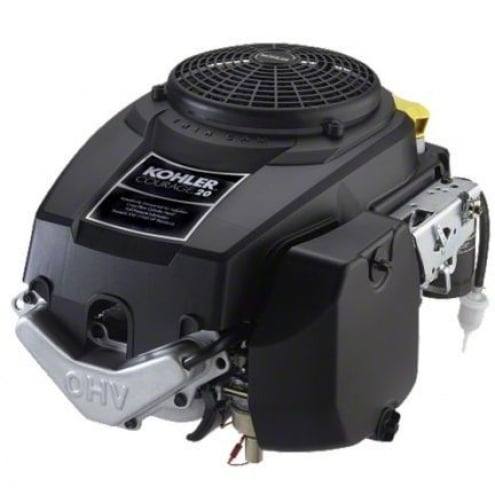

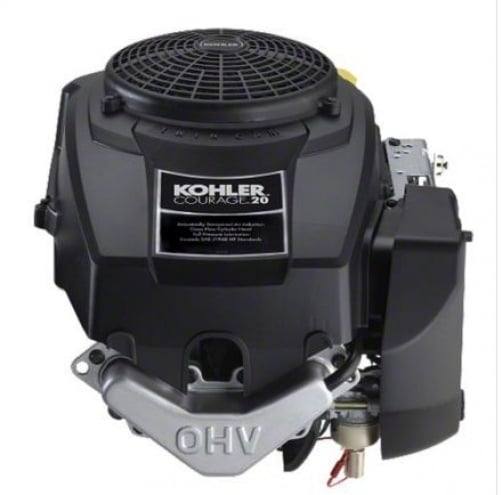

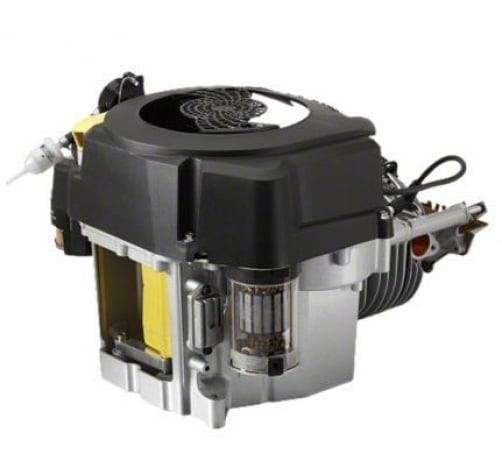

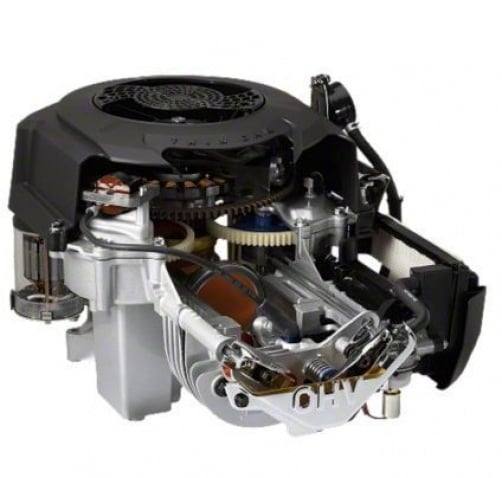

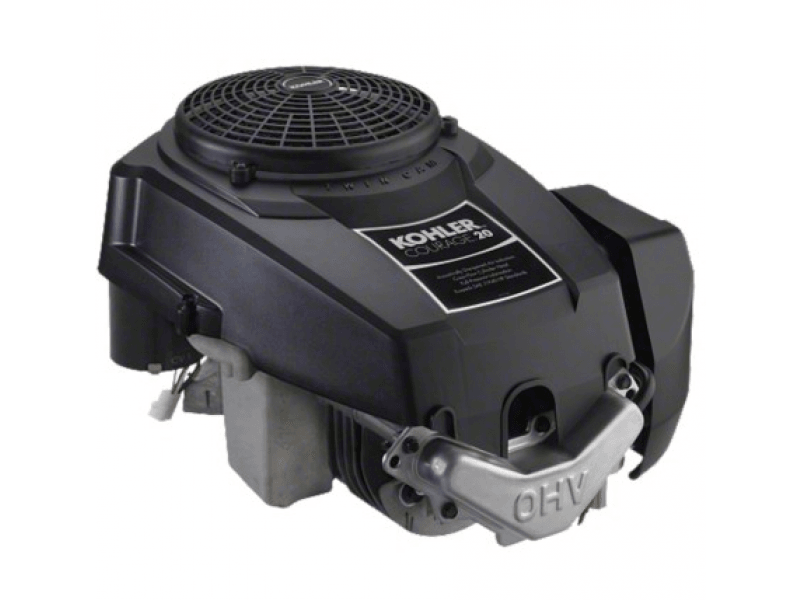

4-cycle, gasoline, OHV, single-cylinder, air-cooled, vertical shaft, full pressure lubrication with full-flow filter, aluminum head and crankcase with cast iron cylinder liner.
Model |
Courage SV600 |
| Max Power @3600 RPM hp (kW) 1 | 20 (14.9) |
| Displacement cu in (cc) | 36.4 (597) |
| Bore in (mm) | 3.7 (94) |
| Stroke in (mm) | 3.4 (86) |
| Peak Torque @ Maximum lbs ft (Nm) | 36.9 (50) |
| Compression Ratio | 8.5:1 |
| Dry Weight lbs (kg) | 79 (35.8) |
| Oil Capacity U.S. quarts (L) | 1.6 (1.5) |
| Lubrication | Full pressure w/full-flow filter |
| Dimensions L x W x H in | 19.4 x 16.4 x 12.9 |
| Backpressure Limit 2 | 50 |
| J1995 Power 3 | 19.1 |
Shaft Type: Vertical
Shaft Width: 1"
Shaft Length: 3.16"
This engine powers the following equipment:
| Manufacturer: | Kohler Engines |
|---|---|
| MPN: | SV600-3229 |
| Condition | New |
| Shipping Options | Standard Ground Shipping |
| Engine Cooling | Air |
| Engine Size | 20hp |
| Engine Type | 4-Stroke |
| # of Cylinders | 1 |
| Shaft Position | Vertical |
| Warranty | 2 Year Limited Warranty |
