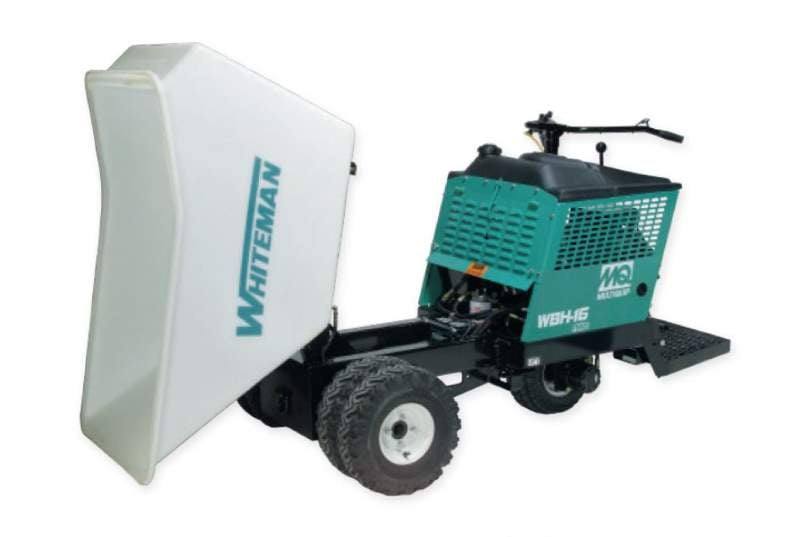

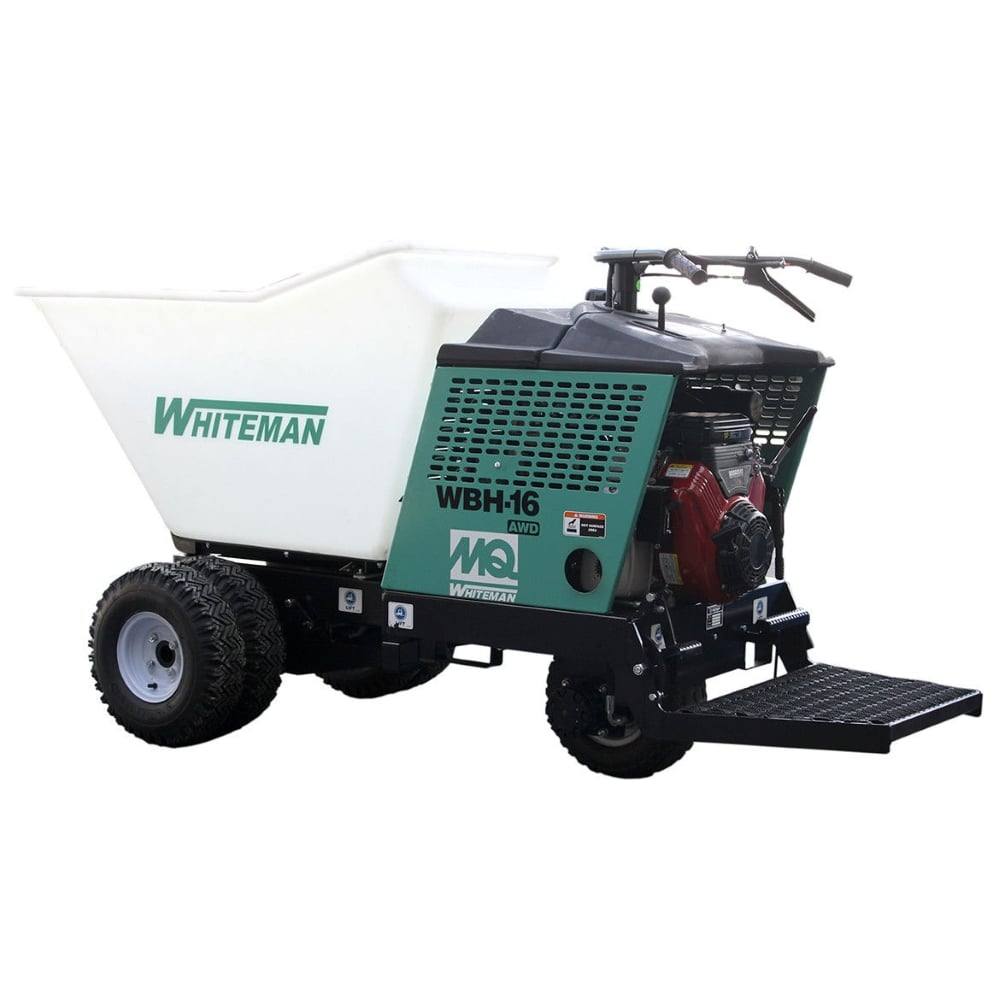

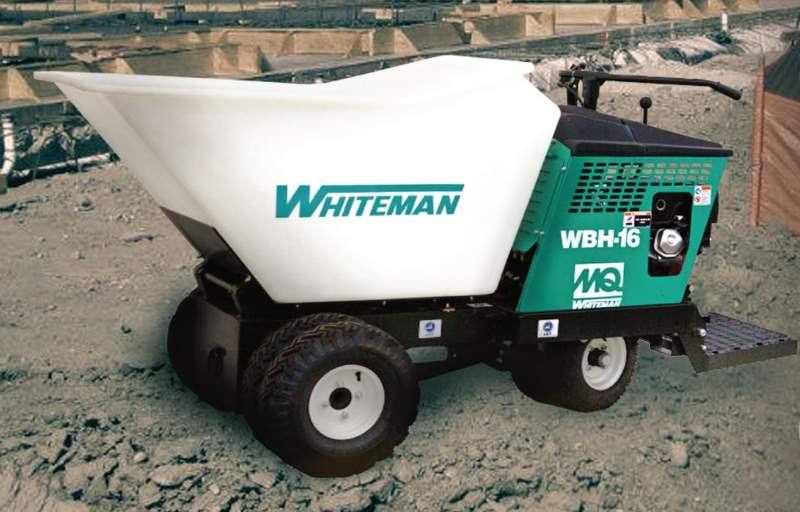

Multiquip WTB-16 Power Buggy - 22 Hp Honda GX690

Multiquip WTB-16 - Power Buggy

Features:

• Optimal traction and durability assured by a steel imbedded ladder track design
• Rugged undercarriage guide wheels are ductile cast iron
• Low maintenance hydraulic design eliminates wear parts such as belt-drives and drive couplers
• High torque drive motors propel the buggy through tough conditions and offer fail-safe braking
• Versatile tub offers 16 ft.³ (2,500 LB.) capacity and polyethylene construction for easy cleaning
• Narrow width allows the buggy to pass through doorways or confined areas
• Travel efficiently around the site with speeds of 5.7 MPH unloaded and 4.7 MPH loaded
• Easy steering dual control levers allow the operator to control the unit while minimizing fatigue

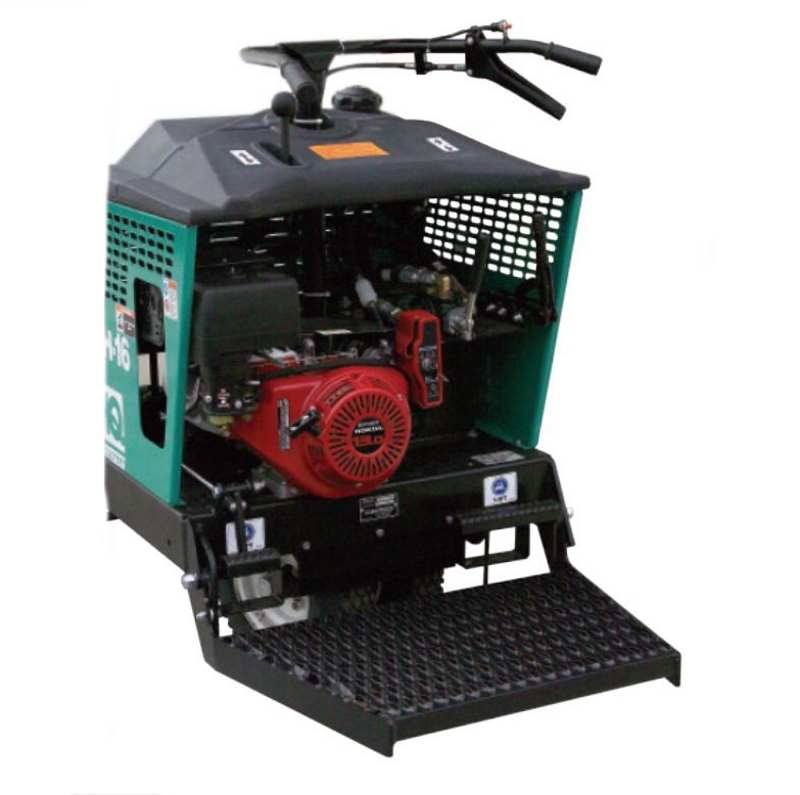

• Powerful and reliable Honda GX690 engine produces 22 horsepower
• Long run times are achieved with 5 gallon capacity fuel tank

Unit Specifications

• Drive System Hydraulic Powered Track-Drive
• Tub Material Polyethylene
• Tub Capacity 16 cu. f
• Travel Speed (loaded) 4.7 mph 7.56 kph
• Fuel Tank Capacity 5 gal
• Engine 22 HP Honda GX690

Dimensions & Weights

• Overall Length 90.5 230 cm
• Overall Width 35.5 in. 90.1 cm
• Overall Height 56.5 in 143.5 cm
• Operating Weight 1,896 lb 860 kg
