Multiquip WBH-16EAWD Power Buggy/Vanguard 18 hp Elec. Start

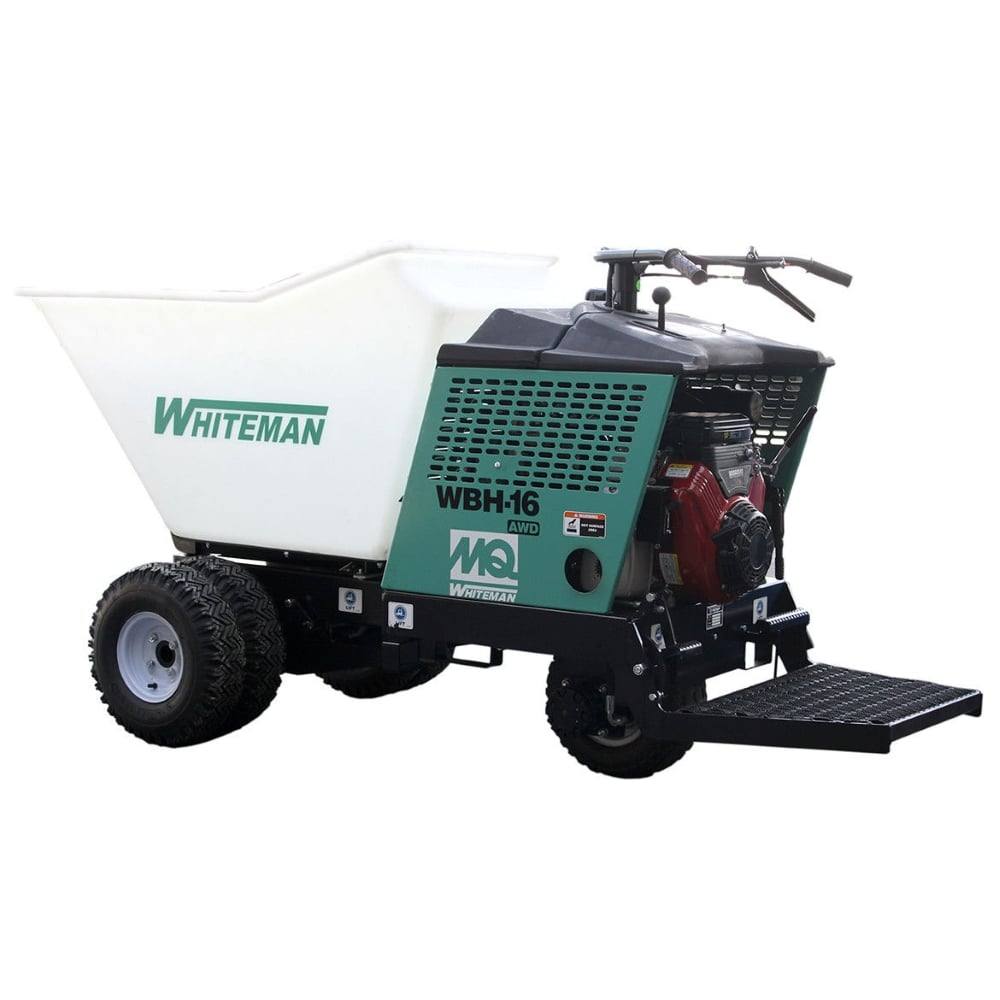

Multiquip WBH-16EAWD - Power Buggy

Features:

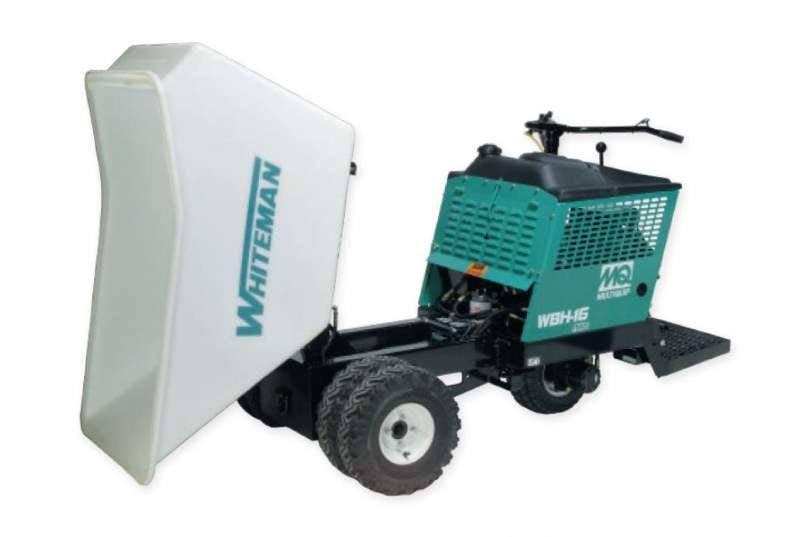

• Quickly dump material, a 80° dump angle assures the tub is emptied on your first approach
• Reduce concrete splatter during transport with an integrated tub splash guard
• Smooth operation under all conditions with a fully hydrostatic drive system
• Actuate dumping mechanism using either a hand lever or a foot pedal
• Spend less time refueling with a large 4.8 gallon fuel tank that enables you to work uninterrupted
• Lifting is made easier by multiple attachment points and forklift pockets
• Enter confined areas and pass through 32” doorways with removable tires
• Flatproof your buggy with optional superflex foam-filled tires which provides air-like ride while extending tire service life

Unit Specifications

• Drive System Fully hydrostatic
• Tub Material Polyethylene
• Tub Capacity 16 cu. f
• Travel Speed 7.25 mph 11.66 kph
• Travel Speed w/ Traction 5.3 mph 8.52 kph
• Travel Speed w/ AWD 6.3 mph 10.13 kph
• Fuel Tank Capacity 4.8 gal
• Approx. Running Time 8 hours
• Lifting Assistance Forklift Pockets

Dimensions & Weights

• Overall Length 103 in 261.6 mm
• Overall Width See Wheel Specifications
• Overall Height 51 in 129.5 mm
• Operating Weight 1505 lb 682.6 kg
• Wheel Specifications
• Tires Standard Tires
• Wheel Base 44 in 111.7 mm

Front Wheel Base

• Single Wheels 30.75 in 78.10 mm
• Max. Load
• Dual Wheels 2500 lb 1133.8 kg
• Max. Load
• Single Wheels 1000 lb 453 kg
