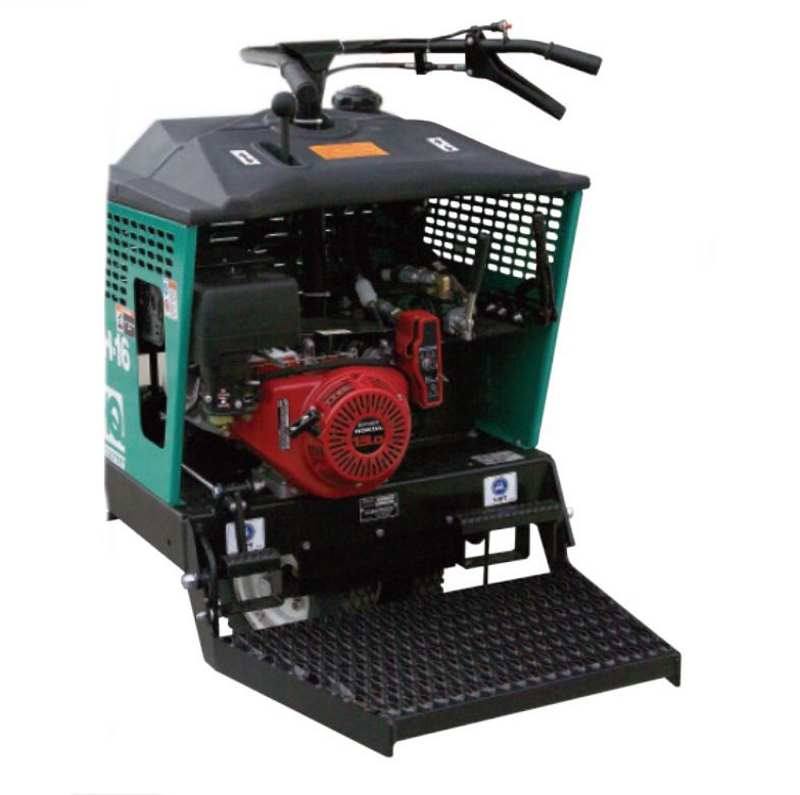

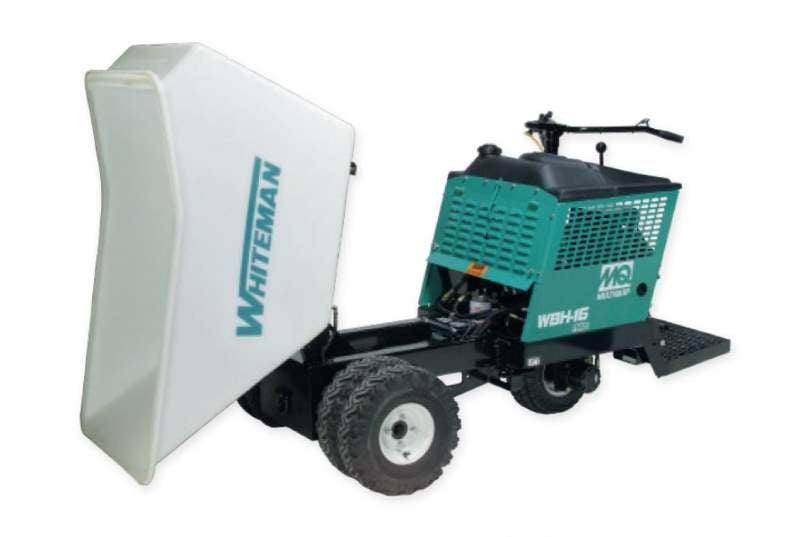

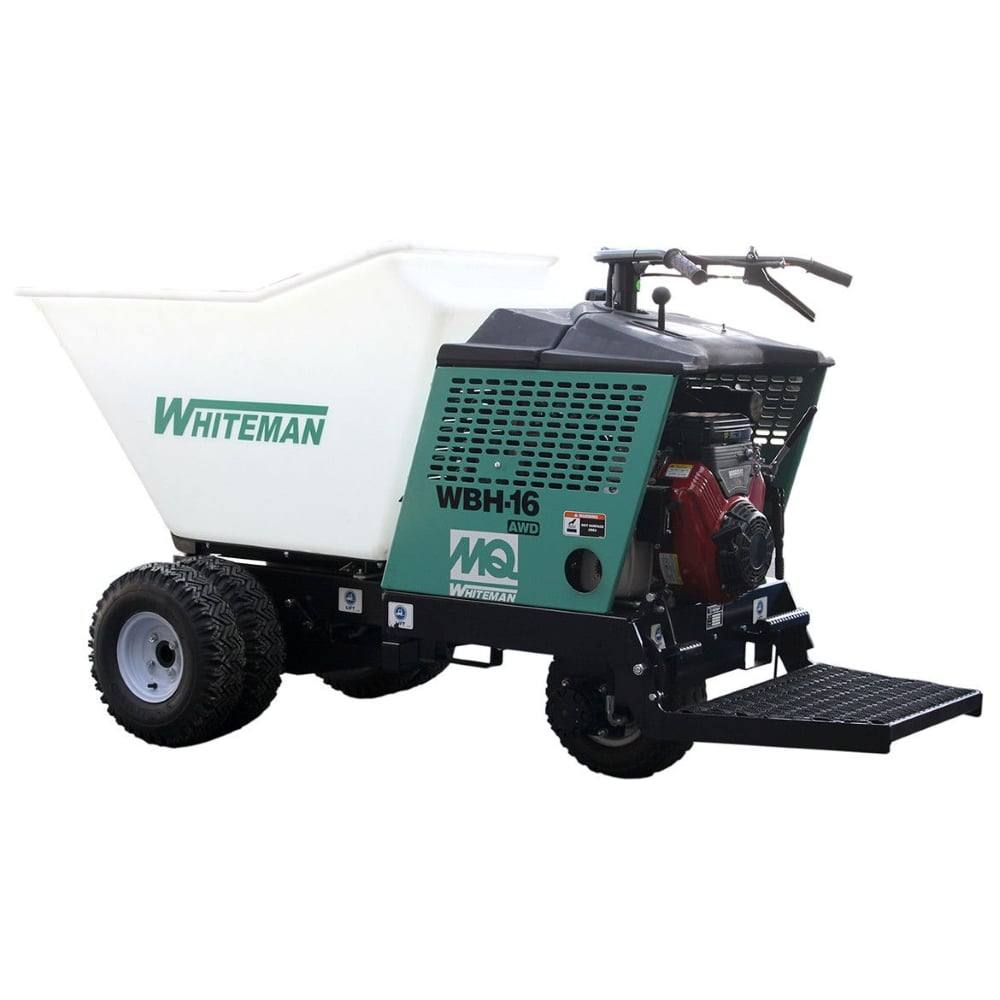

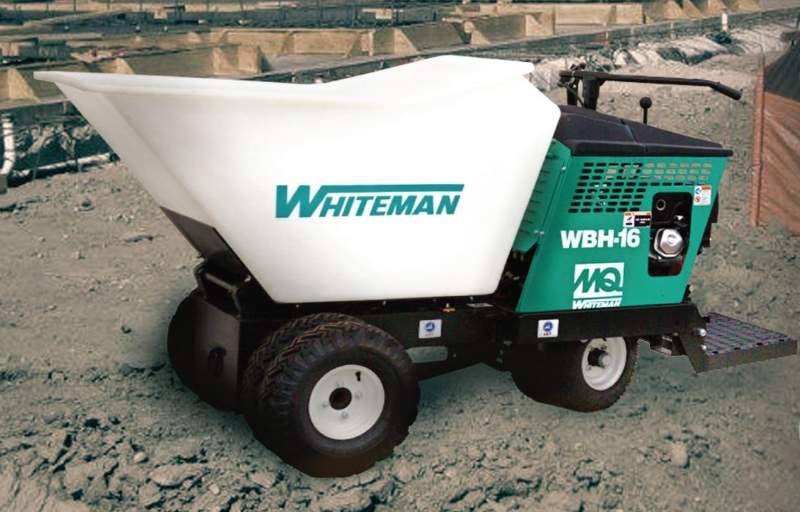

Multiquip WBH-16E Power Buggy - GX390 Honda Electric Start

Multiquip WBH-16E - Power Buggy

Features:

• Heavy-duty frame with low center of gravity Increased stability and traction
• Capacity of 16-cubic feet (453 liters)
• Powered by a Honda GX390 engine with recoil start/electric start
• Large 5.5-gallon (20.8 liters) fuel tank for extended uninterrupted service
• Forklift pockets for easy loading
• Ideal for concrete placing, landscaping applications, material sub-base distribution, job site cleanup
• Travels up to 7.25 mph (11.5 kph)
• Infinitely variable, fully hydraulic drive system for smooth and steady operation
• Removable Phneumatic tires for easy access to narrow work areas
• Meets ANSI Braking guidelines B56.8-1993
• Optional foam filled tires

Unit Specifications

• Drive System Infinitely variable, fully hydrostatic
• Tub Material Polyethylene
• Tub Capacity 16 cu. f
• Travel Speed 7.25 mph 12 kph
• Fuel Tank Capacity 5.5 gal
• Approx. Running Time 8 hours
• Lifting Assistance Forklift Pockets

Dimensions & Weights

• Overall Length 103 in 2616.2 mm
• Overall Width 44 in 1117.6 mm
• Overall Height 51 in 1295.4 mm
• Operating Weight 1140 lb 517.1 kg

Wheel Specifications

• Tires Standard Tires
• Wheel Base 44 in 1117.6 mm
• Front Wheel Base
• Single Wheels 30.75 in 781 mm
• Max. Load
• Dual Wheels 2500 lb 1134 kg
• Max. Load
• Single Wheels 1000 lb 453.6 kg
