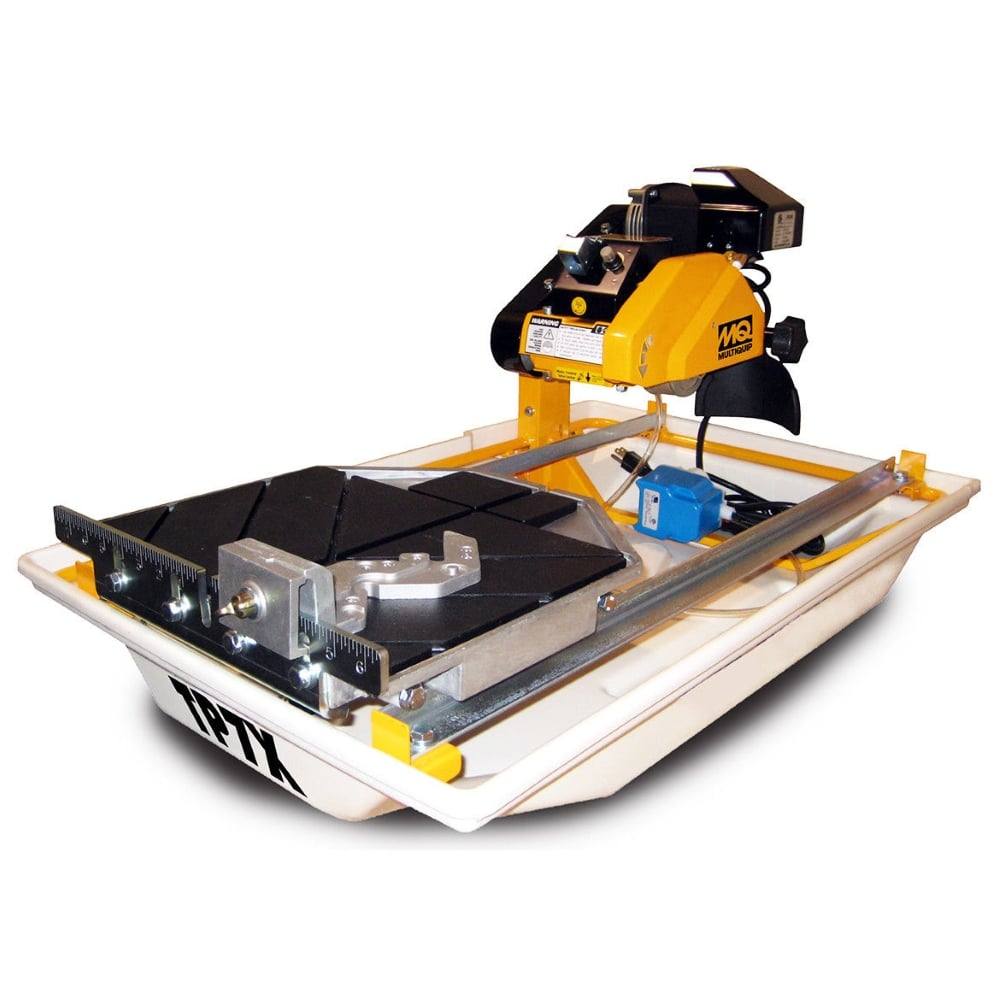

Multiquip TP7X Tile Pro Lightweight Tile Saw with 7" Blade

• 7 in. Guard, 17 in. Straight, 12" x 12" Tile Diagonal Cut
• Compact, rugged frame assembly for easy transport and storage
• Electric induction UL/CSA-approved motor with thermal overload and fan cover protection
• High-impact thermal plastic tray won't rust or bend out of shape
• Rugged cast aluminum table with heavy-duty injection molded rubber padding. Industrial ball bearing rollers ensure smooth, precise cart movement
• Maintenance-free submersible water pump provides high volume water flow
• Heavy cast aluminum blade guard evenly distributes water to the blade
• Combination 45/90 degree rip guide and 45 degree miter block included
• Premium 7 inch (178 mm) tile blade included

Unit Specifications

• Power Source 1HP 115V 15A 50/60HZ
• Blade Capacity 7 in
• Blade RPM 6,000
• Arbor Size 5/8 in
• Drive System V-Belt
• Cutting Depth 1-3/4 in
• Straight Cut 17 in
• Diagonal Cut 12 in
• Water Pump 115V 100GPH
• Water Pan Molded Polyethylene
• Cutting Jigs Standard

Dimensions & Weights

• Overall Length 30 in 762 mm
• Overall Width 19 in 483 mm
• Overall Height 18 in 457 mm
• Operating Weight 43 lb 20 kg
