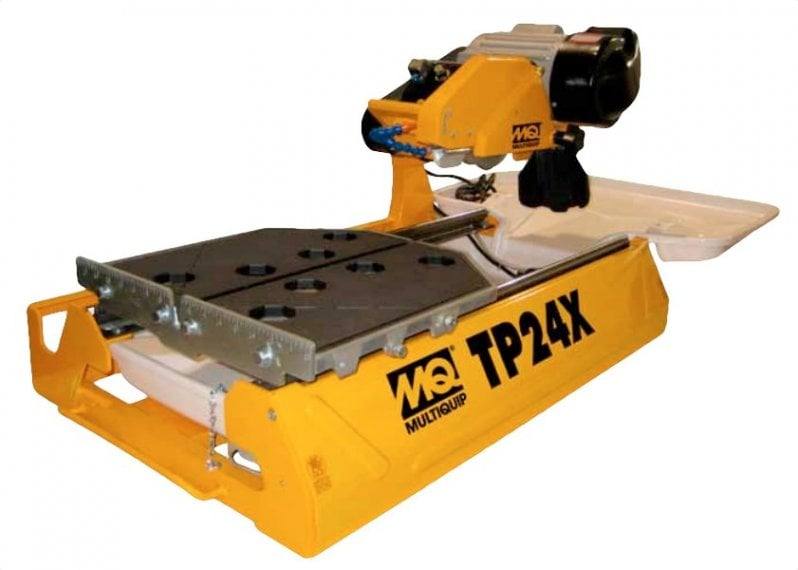

Multiquip TP24X Tile Saw 24" Masonry Professional Grade

• 10 in. Guard, 24 in. Straight, 18 in. Tile Diagonal cut
• Rugged steel frame design with handles for easy transport/storage.
• Electric 115V/15A 60 Hz 1Ø induction motor.
• UL/CSA approved with thermal overload and fan cover protection.
• Sturdy ABS Water Tray.
• Rugged die-cast aluminum table with heavy-duty injection molded rubber padding.
• Industrial ball bearing rollers ensure smooth, precise cart movement.
• Maintenance-free submersible water pump provides high volume water flow.
• Heavy-cast aluminum blade guard evenly distributes water to the blade
• Back splash tray included.
• Premium 10-inch (254 mm) tile blade included.

Unit Specifications

• Power Source 1 1/2 HP 115V/15A 60HZ
• Blade Capacity 10 in
• Blade RPM 3,450
• Arbor Size 5/8 in
• Drive System V-Belt
• Cutting Depth 2 7/8 in
• Straight Cut 24 in
• Diagonal Cut 18 x 18 (Tile Size) in
• Water Pump 115V 100GPH
• Water Pan ABS
• Cutting Jigs Provided

Dimensions & Weights

• Overall Length 38 in 965 mm
• Overall Width 23 in 584 mm
• Overall Height 21 in 533 mm
• Operating Weight 103 lb 47 kg
