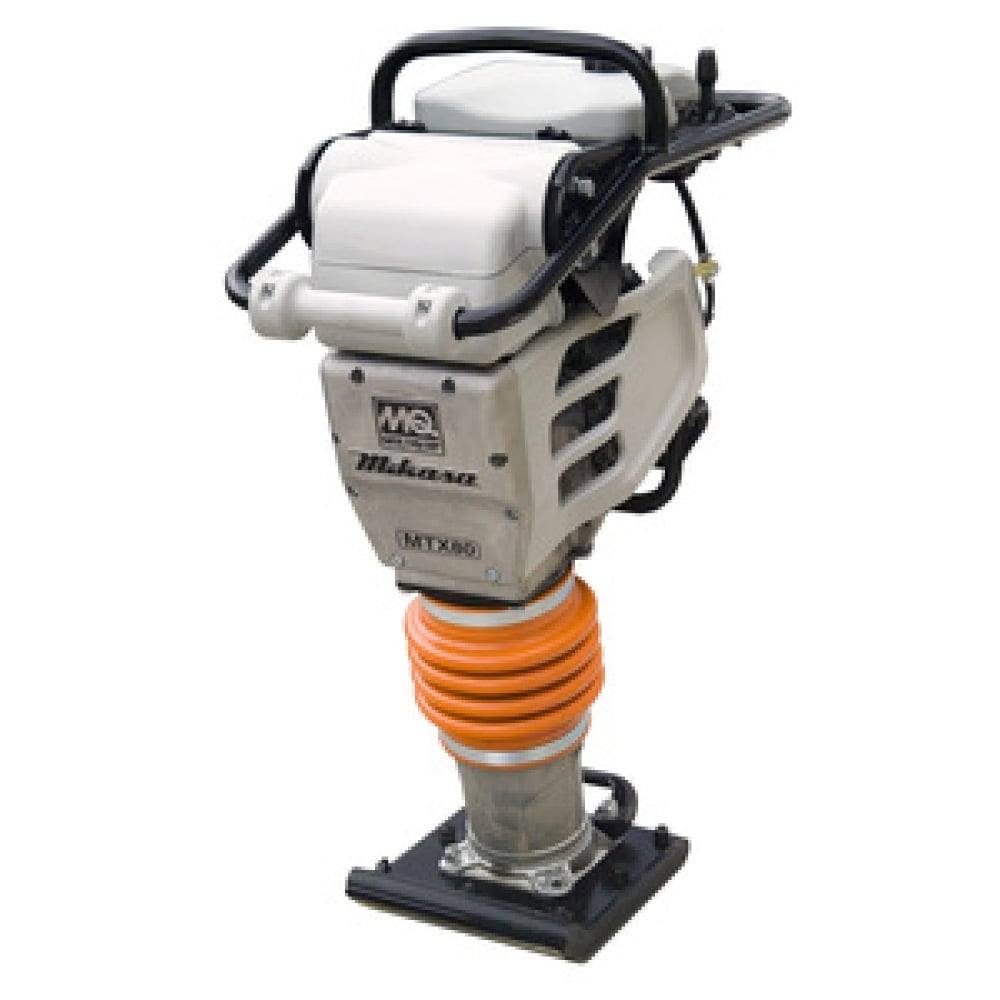

Multiquip MTX80HDR Rammer Compactor with Honda GXR120 Diaphragm Carburetor

Multiquip MTX80HDR - Rammer

Multiquip’s Mikasa MTX-Series Rammers now utilize the Honda GXR120 engine. The GXR120 is a high-output OHC engine, designed specifically for rammer applications.  MTX80HDR is ideal for high productivity with 3,505 lbs. of force combined with an 11.2" wide shoe.

Features:

Cyclonic air cleaners that capture 98% of airborne dust particles

• Features advanced cyclonic air cleaners designed to keep the engine running clean by capturing 98% of airborne dust in the air.

Long-lasting laminated wood and steel shoe

• Features a long-lasting shoe constructed from rugged laminated wood and steel for superior durability and wear resistance.

Low vibration handles for operator comfort

• The low-vibration handles provide superior stability and control, ensuring a smoother, more comfortable operation.

Combination hour meter/tachometer

• Equipped with an integrated hour meter/tachometer to accurately track engine hours (for maintenance) and monitor live RPMs (for performance).

Durable guards to protect the engine from damage

• Equipped with rugged guards that provide reliable protection against impacts and debris, keeping the engine safe.

Redesigned fuel tank to meet EPA standards for evaporative emissions

• Equipped with a redesigned, low-evaporation fuel tank engineered to meet EPA emissions standards, significantly reducing environmental impact.

Unit Specifications

• Blows Per Min. Up to 678*
• Impact Force 3,505 lbf 1590 kgf
• Shoe Jump Height 3.1 in 79 mm
• Shoe Dimensions (LxW) 13.4 x 11.2 in
• 340 x 285 mm
• Travel Speed Per Min. 49.2 ft 15 m
• Fuel Tank Capacity 2.7 qt 2.5 L

Dimensions & Weights

• Overall Length 31.0 in 788 mm
• Overall Width 14.4 in 365 mm
• Overall Height 40.4 in 1027 mm
• Operating Weight 181 lb 82 kg

Engine Specifications

• Engine Make/Model Honda GXR120
• Start Method Recoil
• Engine Power 3.6 HP 2.7 kW
• Engine RPM 4100
• Fuel Type Gasoline
