Product Description

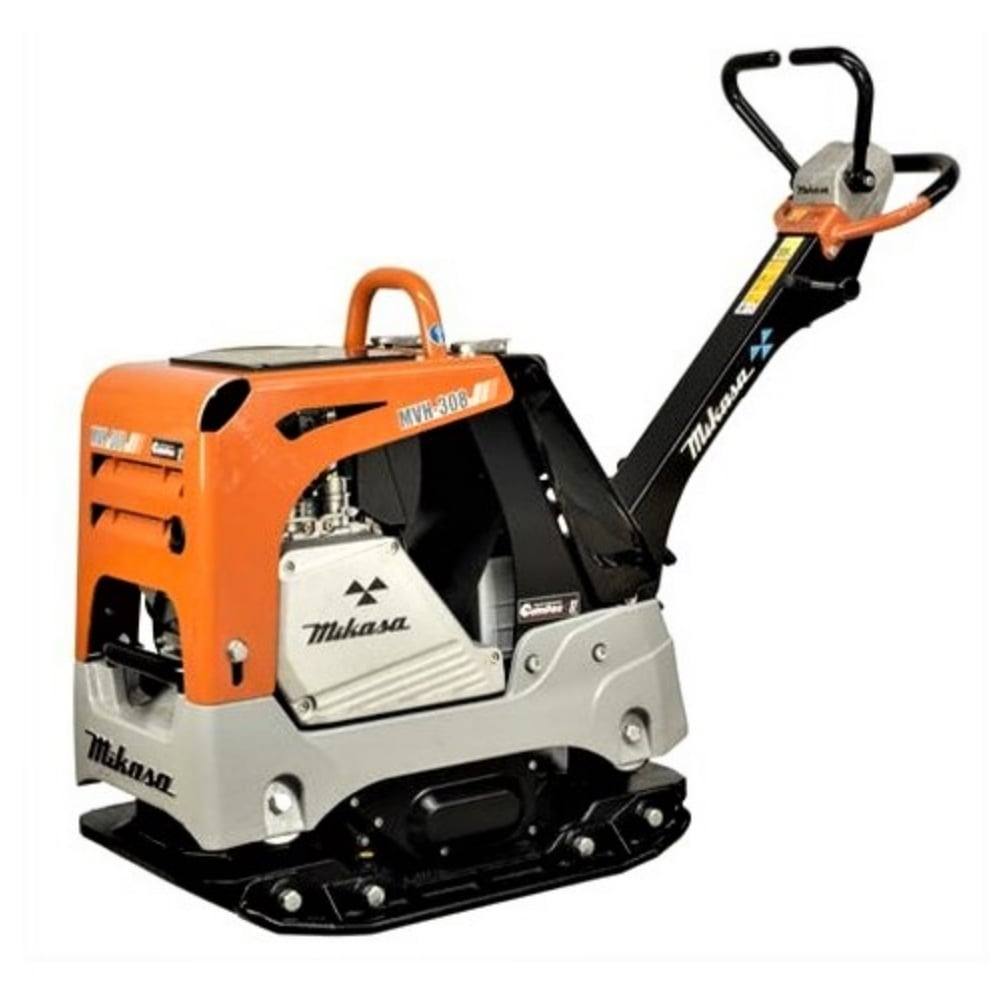

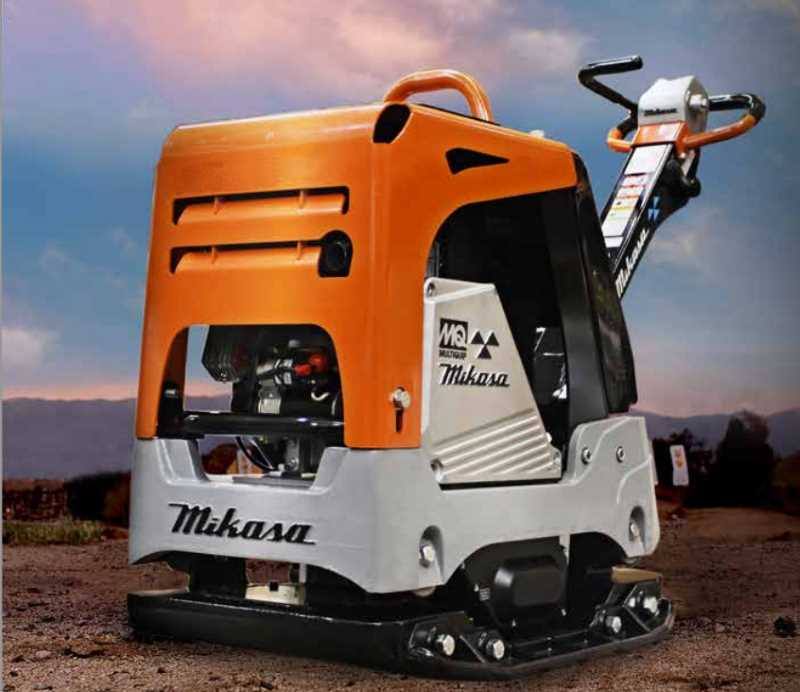

Multiquip MVH408DZ - Reversible Plate Compactor

Features:

  • Reliable engine with Hatz diesel offering easy electric start-up.
  • Fold-out front and rear covers for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.
  • Extension plates can be added or removed to operating working width up to 6 inches.

Unit Specifications

  • Centrifugal Force 12365 lbf 55 kN
  • Exciter Speed 4400 VPM
  • Plate Size 20 x 35 in
  • 500 x 900 mm
  • Plate Size
  • with Extensions 26 x 35 in
  • 650 x 900 mm
  • Max Forward Speed
  • Per Min. 82 ft 25 m
  • Hatz 1B50

Dimensions & Weights

  • Overall Length 62 in 1570 mm
  • Overall Width 26 in 650 mm
  • Overall Height 48 in 1210 mm
  • Operating Weight 933 lb 423 kg



More Information

Manufacturer: Multiquip
MPN: MVH408DZ
ConditionNew
Shipping OptionsStandard Delivery
Engine ManufacturerN/A
Engine SizeN/A
Plate Dimensions20 x 35 in
Speed Per Minute82'
Length62"
Width26"
Height41"
