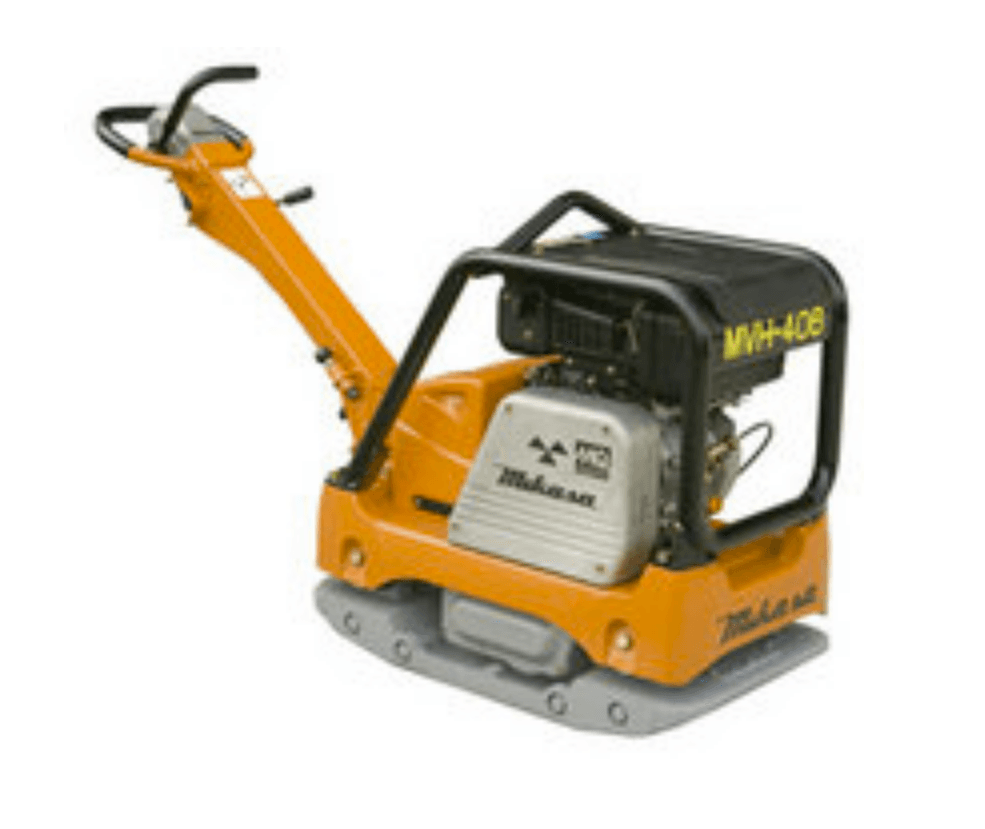

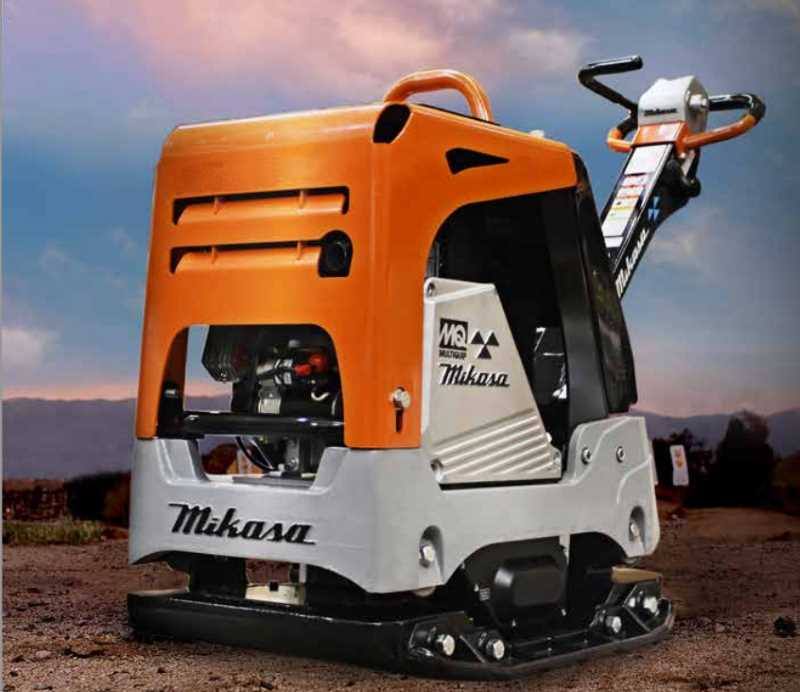

Multiquip MVH406DSCPAS Reversible Plate Compactor 12400 cf - Hatz Diesel

SKU MVH406DSCPAS
$111,111.00

This versatile unit can be backed out of a trench while compacting. The Multiquip MVH406DSCPAS is a reversible plate compactor that features a 25.5 inch plate delivering 12,400 lbf of centrifugal force and is powered by a 9.7-hp Hatz 1B40 diesel engine.

Product Description

Multiquip MVH406DSCPAS

  • With Compass Meter
  • Electric start with recoil back up
  • 9.7-hp Hatz 1B40 diesel engine
  • Plate size is 25.5 x 35.5 inches (650 x 900 cm)
  • Weighs 902 pounds (410 kg)
  • 6-inch (150 mm) plate extension for additional compaction



Unit Specifications

Centrifugal Force 12400 lbf 55.16 kN
Exciter Speed 4600 VPM
Plate Size 19.5 x 35.5 in
50 x 90 mm
Plate Size
with Extensions 		28 x 35 in
70 x 90 mm
Max Forward Speed
Per Min. 		75 ft 23 m



Dimensions & Weights

Overall Length 35.5 in 902 mm
Overall Width 25.5 in 648 mm
Overall Height 53.5 in 1359 mm
Shipping Dimensions 41.25 x 31 x 57.5 in
1048 x 787 x 1460 mm
Operating Weight 902 lb 409 kg
Shipping Weight 948 lb 430 kg

More Information

Manufacturer: Multiquip
MPN: MVH406DSCPAS
ConditionNew
Shipping OptionsStandard Delivery
Engine ManufacturerKubota
Engine SizeN/A
Fuel Per Hour0.98 gal
Impact Force12400 lbf
Maximum RPMs4600 VPM
Plate Dimensions19.5 x 35.5 in.
Plate Size19.5 x 35.5 in.
ReversibleYes
Speed Per Minute75 ft/min
Length35.5 in.
Width25.5 in.
Height53.5 in.
