Product Description

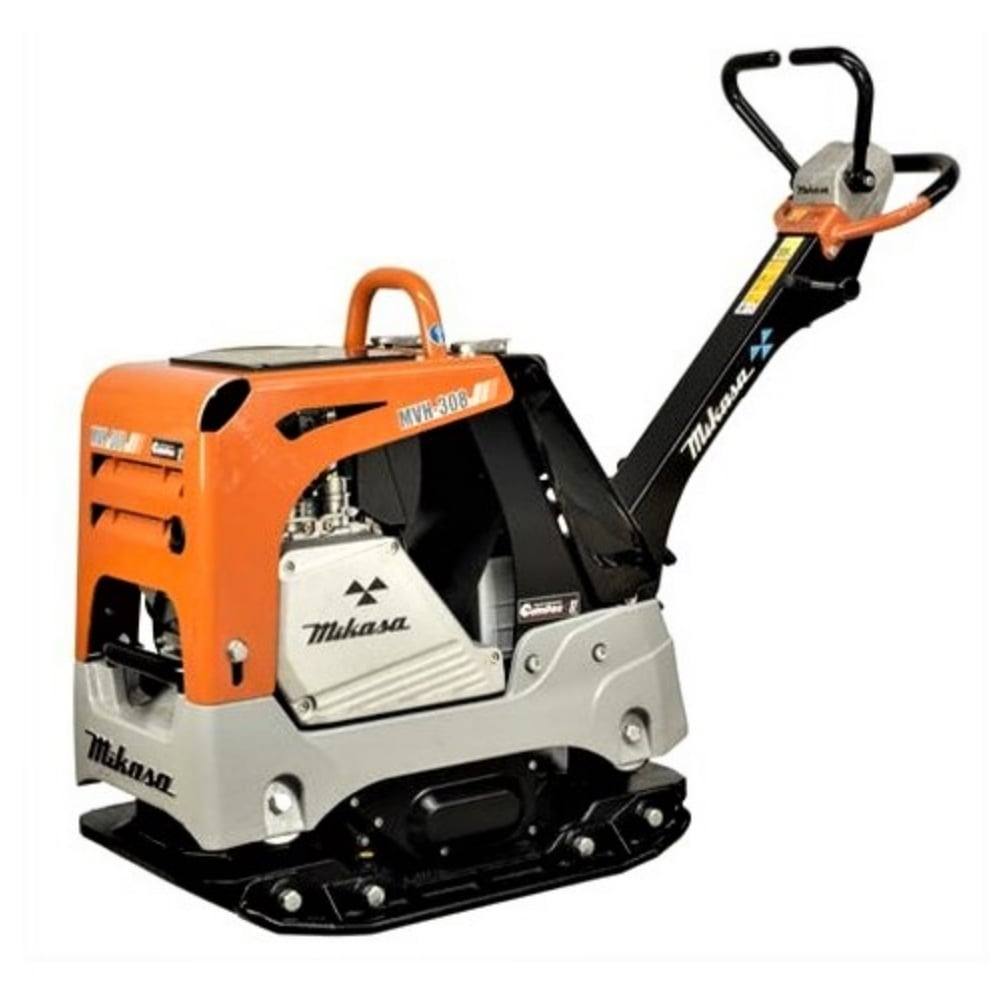

Multiquip MVH308DZ - Reversible Plate Compactor

Features:

  • Reliable engine with Hatz diesel offering easy electric start-up.
  • Fold-out front and rear covers for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.
  • Extension plates can be added or removed to operating working width up to 6 inches.

Unit Specifications

  • Centrifugal Force 10116 lbf 45 kN
  • Exciter Speed 4400 VPM
  • Plate Size 18 x 34 in
  • 445 x 860 mm
  • Plate Size
  • with Extensions 24 x 34 in
  • 600 x 860 mm
  • Max Forward Speed
  • Per Min. 79 ft 24 m
  • Hatz 1B30

Dimensions & Weights

  • Overall Length 61 in 1540 mm
  • Overall Width 24 in 600 mm
  • Overall Height 48 in 1210 mm
  • Operating Weight 794 lb 360 kg

More Information

Manufacturer: Multiquip
MPN: MVH308DZ
ConditionNew
Shipping OptionsStandard Delivery
Engine ManufacturerN/A
Engine SizeN/A
Plate Dimensions18 x 34"
Speed Per Minute79'
Length61"
Width24"
Height41"
