Multiquip

Multiquip MVH306DS2 Plate Compactor Reversible 10,125 cf - Yanmar L-70

SKU MVH306DS2
$11,345.00

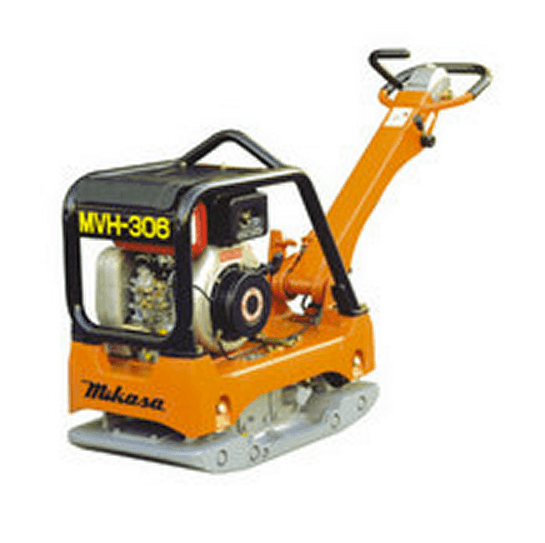

The Multiquip MVH306DS2 is a Mikasa reversible plate compactor that features a 23.5 inch plate that delivers 10,125 lbf of centrifugal force and is powered by a Yanmar L-70 diesel engine.

Product Description

Multiquip MVH306DS2

  • Hydraulic system removes linkage adjustments
  • Driven by a Yanmar diesel engine
  • Fan integrated with clutch pulley for cool air flow and longer belt life
  • Adjustable handle height for operator comfort reduces fatigue
  • Extension plates add 6 inches (150 mm) to the working width



Unit Specifications

Centrifugal Force 10125 lbf 45.04 kN
Exciter Speed 4400 VPM
Plate Size 17.5 x 34 in
44.5 x 86 mm
Plate Size
with Extensions 		24 x 34 in
61 x 86 mm
Max Forward Speed
Per Min. 		75 ft 23 m
Fuel Consumption
Per Hour 		0.41 gal 1.55 L



Dimensions & Weights

Overall Length 37 in 940 mm
Overall Width 23.5 in 597 mm
Overall Height 53.5 in 1359 mm
Shipping Dimensions 38.5 x 26.5 x 59 in
978 x 673 x 1499 mm
Operating Weight 778 lb 353 kg
Shipping Weight 824 lb 374 kg

More Information

Manufacturer: Multiquip
MPN: MVH306DS2
ConditionNew
Shipping OptionsStandard Delivery
Engine ManufacturerYanmar
Engine SizeN/A
Fuel Per Hour0.41 gal
Impact Force10125 lbf
Maximum RPMs5200 VPM
Plate Dimensions17.5 x 34 in.
Plate Size17.5 x 34 in.
ReversibleYes
Speed Per Minute75 ft/min
Length37 in.
Width23.5 in.
Height53.5 in.
