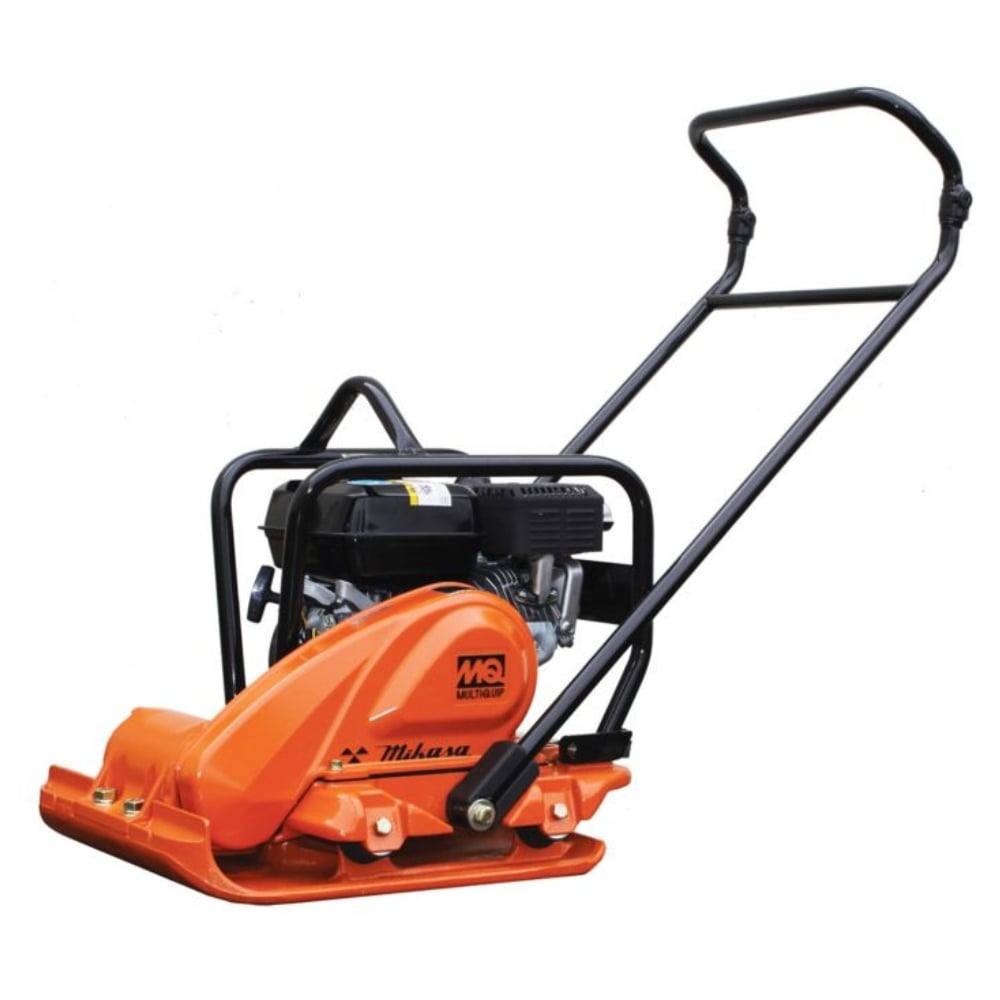

Multiquip MVC88VTH 20" Plate Compactor, Honda GX160, Without Water Tank

Multiquip MVC88VTH - Plate Compactor

The Multiquip MVC88VTH is a high-performance, single-direction vibratory plate compactor engineered for maximum productivity on medium to large-scale granular and cohesive soil projects.

Powerful and Efficient: This compactor is driven by a reliable commercial-grade Honda GX160 or GX200 series engine (depending on model year) and is designed to deliver a substantial impact force (typically over ¹$3,500\ lbf$).² Its robust vibration system ensures rapid material densification, increasing job site efficiency significantly.

Wide Coverage: Featuring a wide plate (typically 19.7 inches), the MVC88VTH maximizes coverage area with every pass, reducing the time required to complete large foundations, sub-bases, and parking lots.

Operator Comfort and Durability: The unit is built with rugged, heavy-duty construction for long-term durability. It typically includes an advanced anti-vibration handle (reducing hand-arm vibration by up to 50%) and a centrally located lift bar, ensuring both superior comfort for the operator and easy transportation.

Features:

• Sealed belt cover keeps dirt and rocks out of the belt
• Cog tooth belt drive for longer life
• Self cleaning plate design minimizes dirt and rock build up
• Four lifting handles -- plate can be lifted from the side
• Engine oil shutdown
• Optional urethane plate attachment for use on paving stones and brick pavers (UPA-88A)
• Optional transport wheel kit (WHL-88)

Unit Specifications

• Centrifugal Force 3420 lbf 15.21 kN
• Exciter Speed 5800 VPM
• Plate Size 19.7 x 20.7 in
• 50 x 52.5 mm
• Max Forward Speed
• Per Min. 72 ft 22 m
• Fuel Consumption
• Per Hour 0.31 gal 1.17 L

 Dimensions & Weights

• Overall Length 41.75 in 1060 mm
• Overall Width 19.75 in 502 mm
• Overall Height 37 in 940 mm
• Shipping Dimensions 38 x 22 x 29 in
• 965 x 559 x 737 mm
• Operating Weight 218 lb 99 kg
• Shipping Weight 225 lb 102 kg
