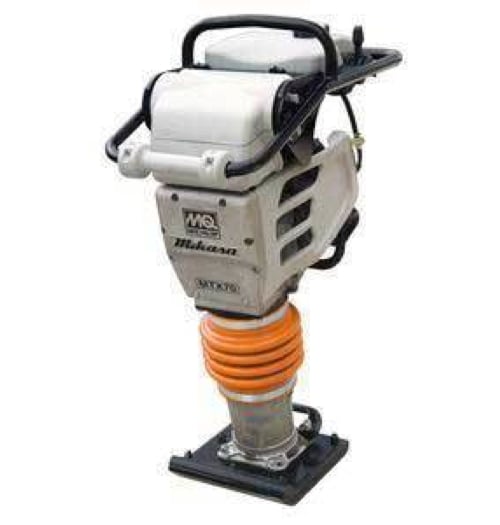

Multiquip MTX70SD Rammer 3350 lb 3.5 HP Subaru ER12 Engine

Multiquip MTX70SD - Rammer

Features:

• Cyclonic air cleaners that capture 98% of airborne dust particles
• Long-lasting laminated wood and steel shoe
• Low vibration handles for operator comfort
• Combination hour meter/tachometer
• Durable guards to protect the engine from damage
• Redesigned fuel tank to meet EPA standards for evaporative emmissions

Unit Specifications

• Blows Per Min.: Up to 690
• Impact Force: 3,350 lbf 1520 kgf
• Shoe Jump Height: 3.1 in 80 mm
• Shoe Dimensions (LxW): 13.4 x 11.2 in 340 x 11.2 mm
• Travel Speed Per Min.: 55.8 ft 55.8 m
• Fuel Tank Capacity: 55.8 qt 55.8 L
• Variable speed impact — up to maximum impact force.

Dimensions & Weights

• Overall Length: 31.0 in 788 mm
• Overall Width: 13.8 in 350 mm
• Overall Height: 39.4 in 1000 mm
• Operating Weight: 165 lb 75 kg

Engine Specifications

• Engine Make/Model: Subaru ER12
• Start Method: Recoil
• Engine Power: 3.4 HP 2.6 kW
• Engine RPM: 3,600
• Fuel Type: Gasoline
