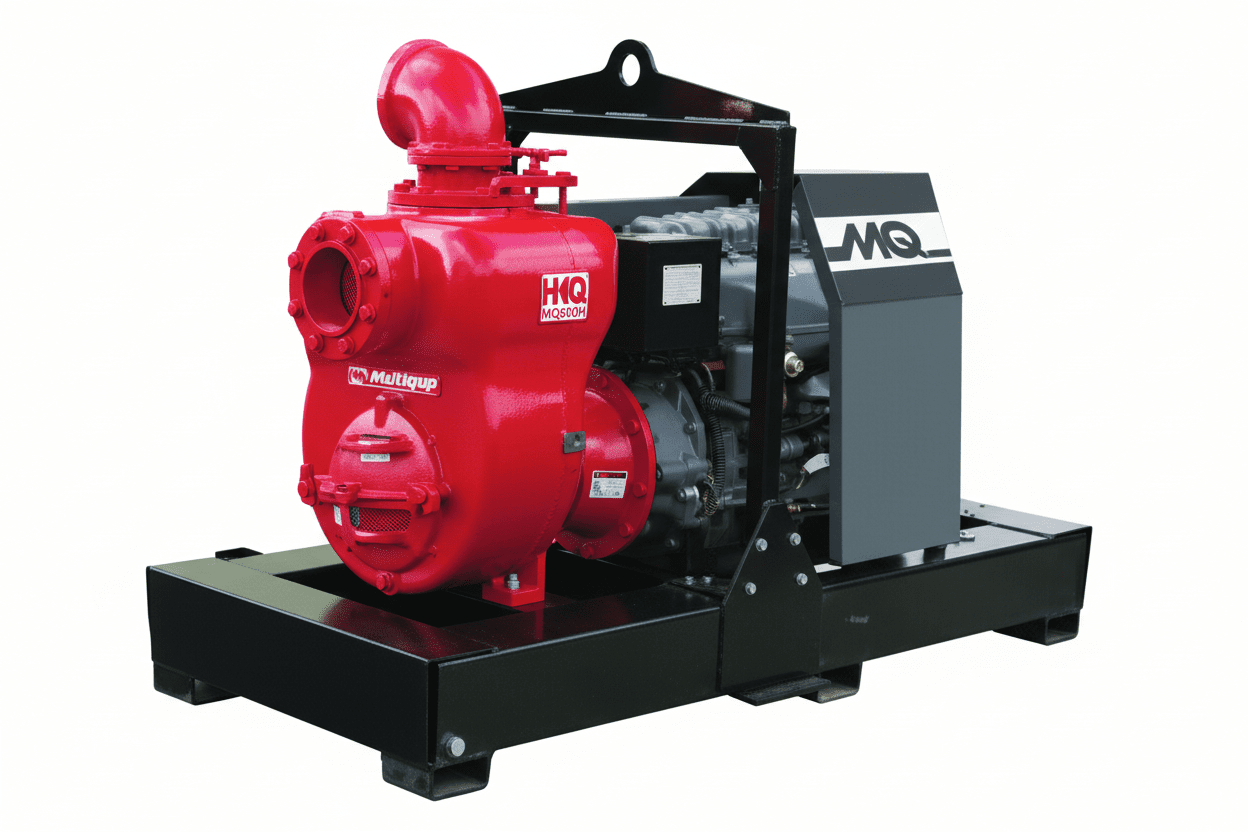

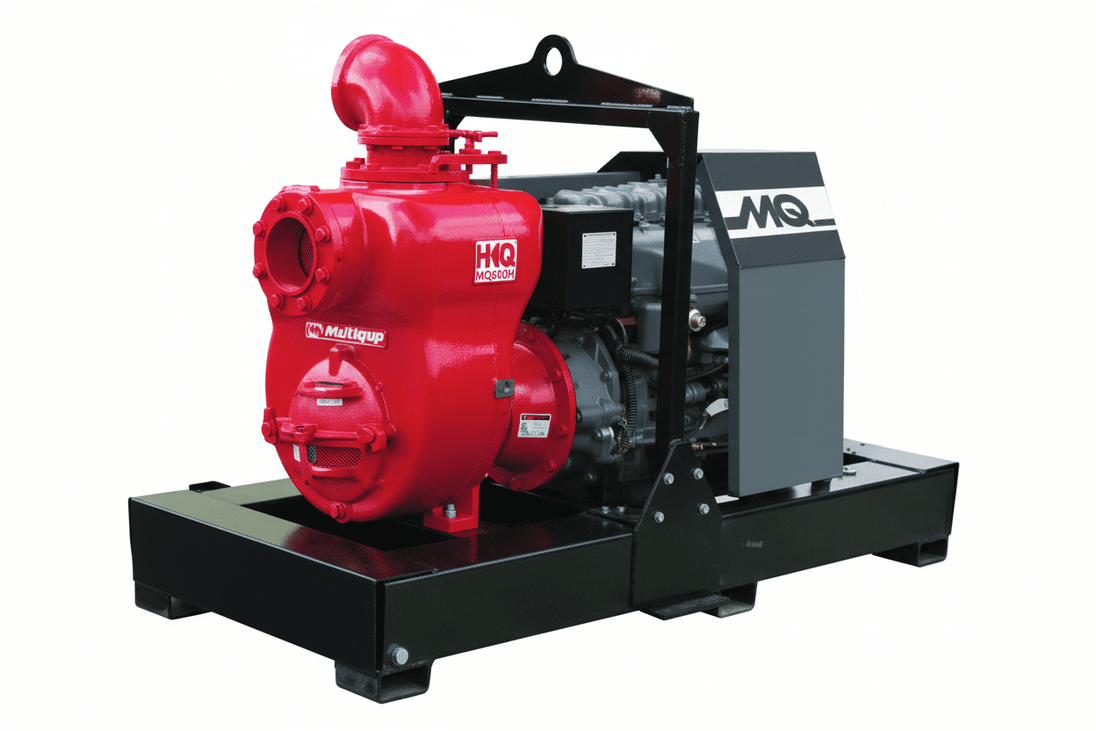

Multiquip MQ600H Industrial Trash Pump
Built for heavy-duty dewatering performance, this Industrial Diesel Trash Pump delivers up to 1,600 GPM with a maximum head of 150 ft, powered by a compact and efficient HATZ Tier IV FINAL turbocharged Diesel Engine. Designed with a skid-mounted frame, 40-gallon fuel cell, abrasion-resistant components, and a LOFA 620 control panel, it ensures unmatched durability and long run times on demanding job sites. Equip your crew with this professional-grade dewatering pump today.
Features:
- Pumps up to 1,600 gallons (6,055 liters) a minute.
- Maximum head 150 feet (45.7 meters).
- Powered by HATZ Tier IV FINAL 4-cylinder, Turbo Charged diesel engine.
- Supported by BOSCH common rail fuel injection system - w/triple fuel filtration.
- Full featured shock mounted LOFA 620 Control Panel.
- Skid mount with integral 40-gallon (151 liters) fuel cell.
- Large cleanout cover and wear-resistant ductile cast iron impeller.
- Stainless steel wear plate.
- Abrasion-resistant oil lubricated tungsten/carbide seal.
- Pumps solids up to 3 inches (75 mm) in diameter.
- Approximate running time of 22 hours.
Unit Specifications
- Suction x Discharge 6 x 6 in 152 x 152 mm
- Max. Water Capacity 1600 gpm 6055 lpm
- Max. Lift 25 ft 7.6 m
- Max. Head 150 ft 46 m
- Max. Pressure 64.9 psi 447 kPA
- Max. Solid Intake 3 in 76 mm
- Fuel Tank Capacity 40 Gal 152 L
- Notes: SKID MOUNTED
Dimensions & Weights
- Overall Length 83 in 2108 mm
- Overall Width 39 in 991 mm
- Overall Height 54 in 1372 mm
- Operating Weight 1990 lb 903 kg
