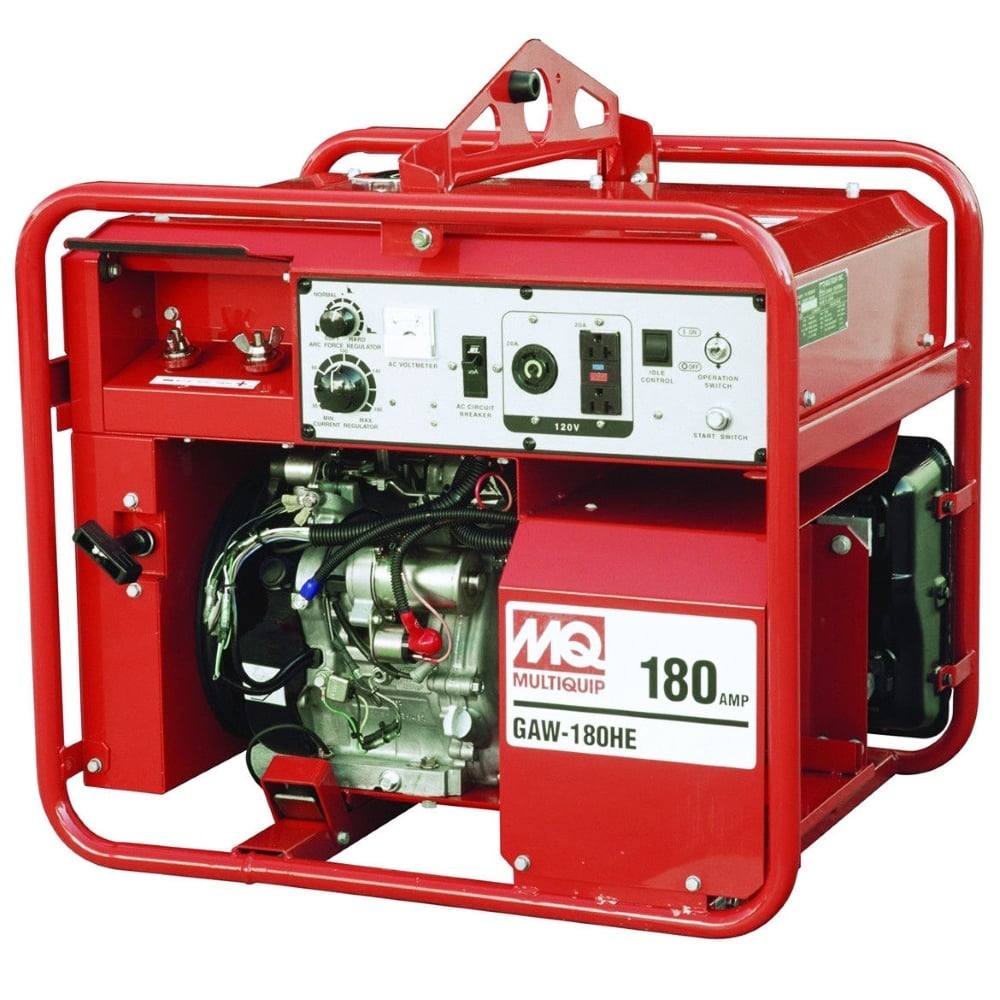

Multiquip GAW180HEA Welder Generator 180 Amps 3kW 120V Honda

Multiquip GAW180HEA - Gasoline-Powered Welder/Generator

Features:

• Arc force control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding.
• Ideal for job site and remote-area service applications
• Produces 50-180 amps for DC welding, 3kW output to power AC tools.
• Operator can draw AC power and weld simultaneously
• Honda GX340 gasoline engine
• Permanent magnet alternator-significantly reduces overall weight compared to other welders in its class
• Full panel GFCI protection - OSHA and NEC compliant

Unit Specifications

• DC Voltage CC: 26.8 V
• DC Current CC: 180A
• Current Range 50-180 A
• Max Duty Cycle
• w/ Full Amps Availible 50% @180 A
• Welding Processes SMAW
• FCAW
• GTAW
• ACAC
• Fuel Tank Capacity 3.7 gal 16.8 L
• Fuel Consumption
• at Rated Load 0.93 gph

Generator Specifications

• AC Power Output
• (Single Phase) 3 kW
• Cycle 60 Hz
• Voltage 120 V
• Amperage 25 A
• Voltage Regulation 3 %
• Receptacles

Dimensions & Weights

• Overall Length 27.5 in 69.85 mm
• Overall Width 22 in 55.88 mm
• Overall Height 23.75 in 60.3 mm
• Shipping Dimensions 28.5 x 23 x 28 in
• 72.4 x 58.4 x 71.1 mm
• Operating Weight 225 lb 102.3 kg
• Shipping Weight 239 lb 108.6 kg

 Engine Specifications

• Engine Make/Model Honda GX-340
• Start Method Electric/Recoil
• Engine Power 9.5 HP 7.1 kW
• Engine RPM 3600
• Fuel Type Gasoline
