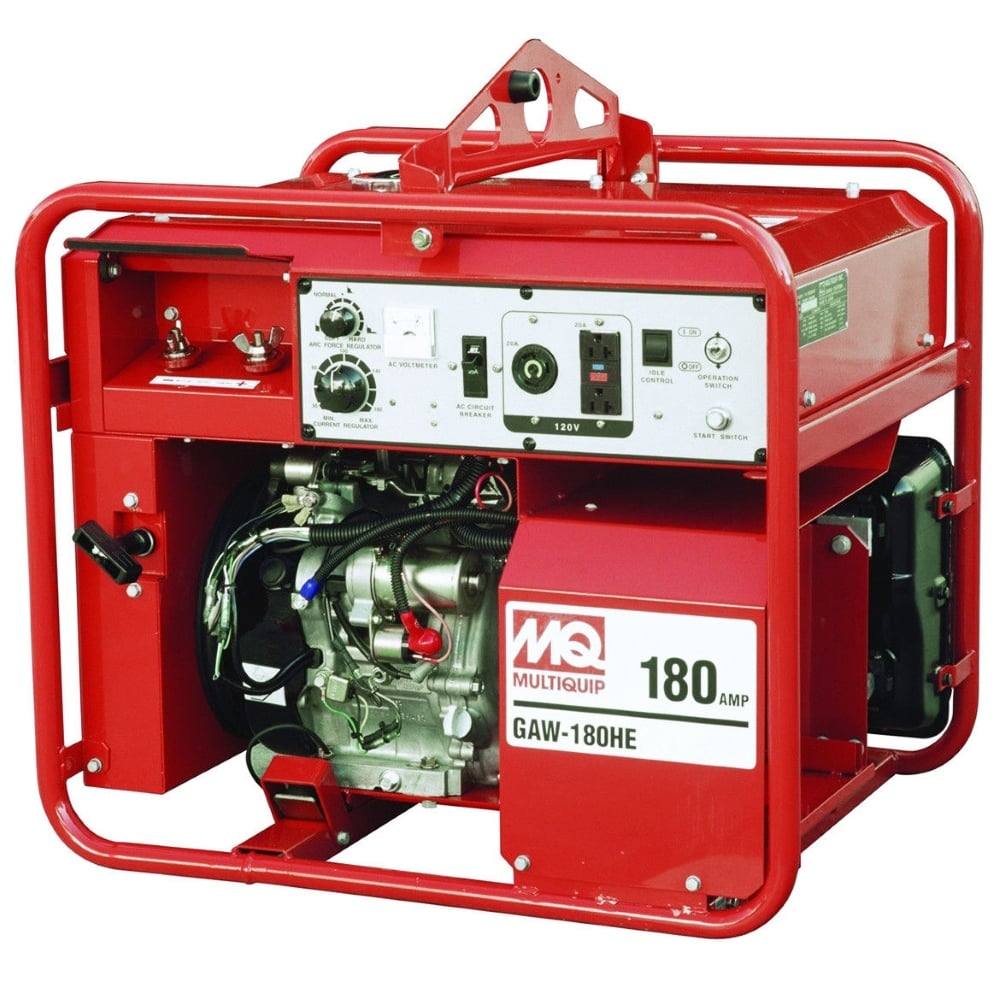

Multiquip GAW180HEA Welder Generator 180 Amps 3kW 120V Honda
This Gas-Powered Welder delivers 50–180 amps of welding output with advanced inverter technology for cleaner AC/DC performance and precise Arc Force control. Featuring a Honda GX340 engine, 3kW auxiliary power, and a lightweight permanent magnet alternator, it’s built for durability, portability, and reliable use on demanding job sites. Order now for professional-grade welding power and efficiency.
Features:
Arc force control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding.
- Optimize your arc characteristics with variable Arc Force adjustment. Specifically designed to assist in tight-gap welding, this technology monitors the arc gap and injects power to prevent short-circuit sticking, allowing for aggressive, close-contact welding without the frustration of stuck rods
Ideal for job site and remote-area service applications
- Transform your service truck into a versatile mobile workshop. This unit is specifically optimized for remote infrastructure repair, providing the high-amperage output needed to handle heavy-duty field maintenance far from the nearest power source.
Produces 50-180 amps for DC welding, 3kW output to power AC tools.
- Engineered for heavy-duty field fabrication, this unit delivers a versatile 50–180 amp welding range alongside a dedicated 3,000-watt generator. The result is a self-contained workstation that provides the raw power needed for thick-gauge welding and the high-wattage AC output required for a full suite of support tools.
Operator can draw AC power and weld simultaneously
- Engineered to function as a complete mobile workstation, this unit supports concurrent AC and DC delivery, ensuring that your auxiliary power tools never lose torque when the electrode strikes the metal.
Honda GX340 gasoline engine
- At the core of the GAW180HEA is the Honda GX340 gasoline engine, a commercial-grade powertrain renowned for its fuel efficiency, low-vibration operation, and 'first-pull' starting dependability in even the harshest environments.
Permanent magnet alternator-significantly reduces overall weight compared to other welders in its class
- Shatter the weight barriers of conventional equipment with our Permanent Magnet technology. By eliminating heavy internal windings, this unit achieves a slashed overall weight profile, giving you a 180-amp welder that is easier to load, transport, and position than any standard copper-field alternative.
Full panel GFCI protection - OSHA and NEC compliant
- Prioritize crew security with comprehensive ground-fault circuit interruption across all outlets. By meeting the highest OSHA and NEC safety standards, the GAW180HEA eliminates the need for external protection kits, allowing you to run 3 kW of auxiliary tools with total peace of mind.
Unit Specifications
- DC Voltage CC: 26.8 V
- DC Current CC: 180A
- Current Range 50-180 A
- Max Duty Cycle
- w/ Full Amps Availible 50% @180 A
- Welding Processes SMAW
- FCAW
- GTAW
- ACAC
- Fuel Tank Capacity 3.7 gal 16.8 L
- Fuel Consumption
- at Rated Load 0.93 gph
Generator Specifications
- AC Power Output
- (Single Phase) 3 kW
- Cycle 60 Hz
- Voltage 120 V
- Amperage 25 A
- Voltage Regulation 3 %
- Receptacles
Dimensions & Weights
- Overall Length 27.5 in 69.85 mm
- Overall Width 22 in 55.88 mm
- Overall Height 23.75 in 60.3 mm
- Shipping Dimensions 28.5 x 23 x 28 in
- 72.4 x 58.4 x 71.1 mm
- Operating Weight 225 lb 102.3 kg
- Shipping Weight 239 lb 108.6 kg
Engine Specifications
- Engine Make/Model Honda GX-340
- Start Method Electric/Recoil
- Engine Power 9.5 HP 7.1 kW
- Engine RPM 3600
- Fuel Type Gasoline
