• Multiquip EM120SME51 Motar Mixer Essick

Multiquip

Multiquip EM120SME51 Motar Mixer Essick 12 Cu.Ft. 5HP Electric Steel Plaster

SKU EM120SME51
$111,111.00

The Multiquip Essick 12 Cu. Ft. features a 5 HP 1 Phase Electric motor. This steel mixer is the quality of machine we can expect from Multiquip

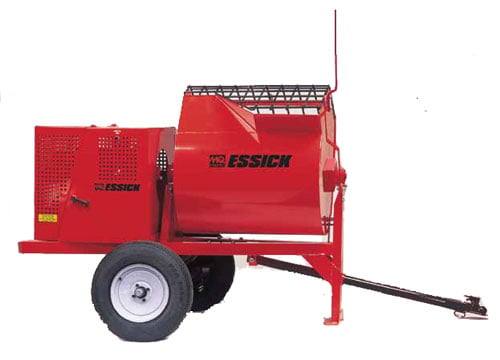

Multiquip EM120SME51 Motar Mixer Essick

Product Description

Multiquip EM120SME51

Tow Bar Included.

  • Drive gears and clutch are immersed in oil fully protected for long, trouble-free life
  • Mixes 12-cubic feet (340 liters) of material
  • Powered by a 5-hp 230/460V single-phase electric motor
  • Mechanical drive mixer is reliable, easy to maintain
  • Recommended for use with larger lower slump mixes



Unit Specifications
Drive System Mech. Gearbox
Drum Capacity 12 cu. ft
339.8 L
3 1/2 - 4 bags
Dump Type Manual
Discharge Height 17 in 430 mm
Drum Type Steel
Drum Wrap Thickness 7
Engine Cover Thickness 14
Tire Size B78x13
Frame Type A Frame
Paint Type Powder coat
Power Source 5 HP 1ø 230V Electric
Notes:Heavy Duty Safety Chains included. All mixers availible with loop couper, 2" ball coupler, or pin-type coupler.





Dimensions & Weights

Overall Length 82 in 2082.8 mm
Overall Width 51 in 1295.4 mm
Overall Height 60 in 1520 mm
Overall Height
w/Dump Handle 		75 in 1910 mm

Operating Weight 1075 lb 487.6 kg





More Information

Manufacturer: Multiquip
MPN: EM120SME51
ConditionNew
Shipping OptionsStandard Delivery
Discharge Height17"
Drum Capacity12 cu. ft.
Drum TypeSteel
Dump TypeManual
Engine ManufacturerKubota
Engine Size5hp
Mixer Drive SystemMechanical Gearbox
Frame TypeA Frame
Power Source5 HP 1ø 230V Electric
Tire SizeB78x13
Length82"
Width51"
Height60"
