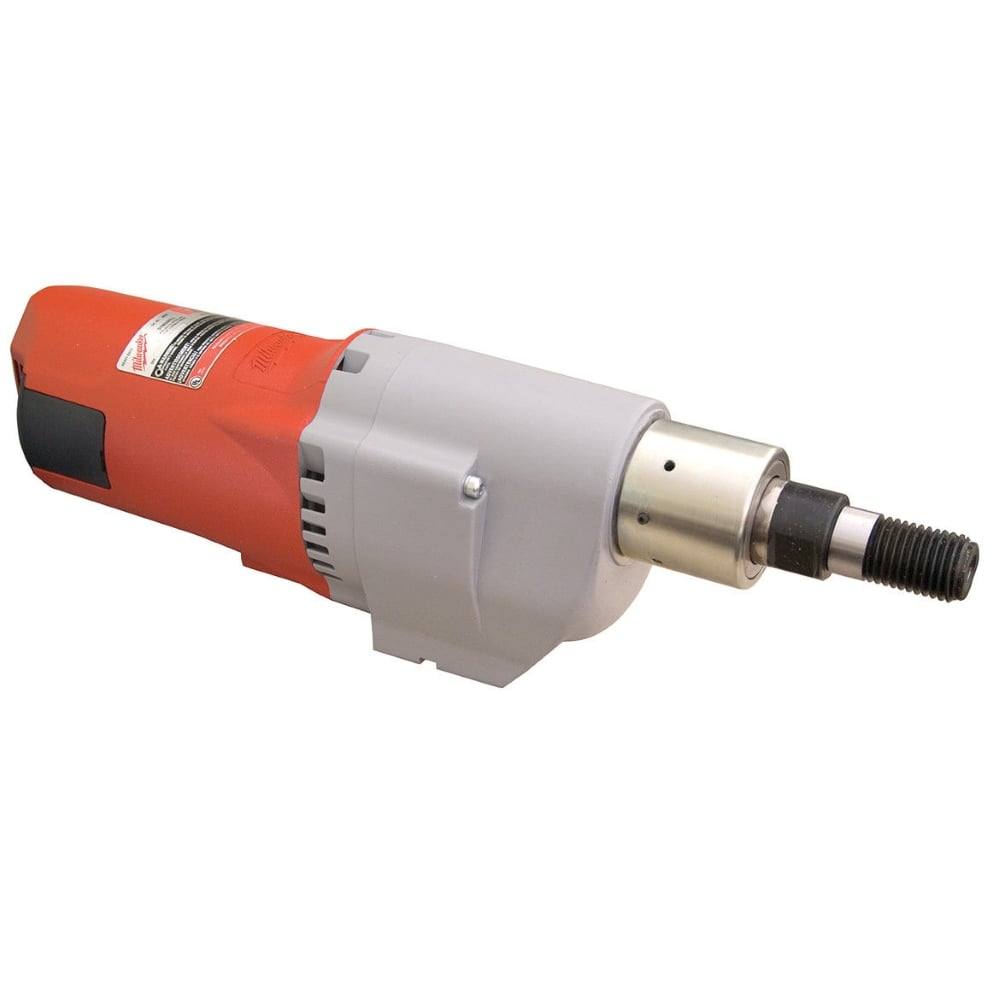

Multiquip DM4096 Core Drill Motor is a Milwaukee heavy-duty core drill motor used in conjunction with drill rigs to drill holes into reinforced concrete. It has a 12 inch bit capacity as well as 110V and 20 Amps.
Product Description
Multiquip DM4096 - Core Drill Motor
Features:
110V/20A; Milwaukee motor, slip clutch, 12" bit capacity
Two speeds: 450 and 900 rpm
Motor has no on/off switch and requires optional control box CDM3CP
Clutch protects gears and motor
Handles core bits from 2-10 inches (50-254 mm)
Built-in water swivel
Unit Specifications
Voltage 120 V
Amperage 20 A
No Load RPMs 450/900 RPMs
Spindle Thread Size 1.25 - 7in 31.750-177.8 mm
Suggested Drill Bit Diameter 10 in 254 mm
Suggested Drill Bit Diameter w/CDM3SP 12 in 304.8 mm
