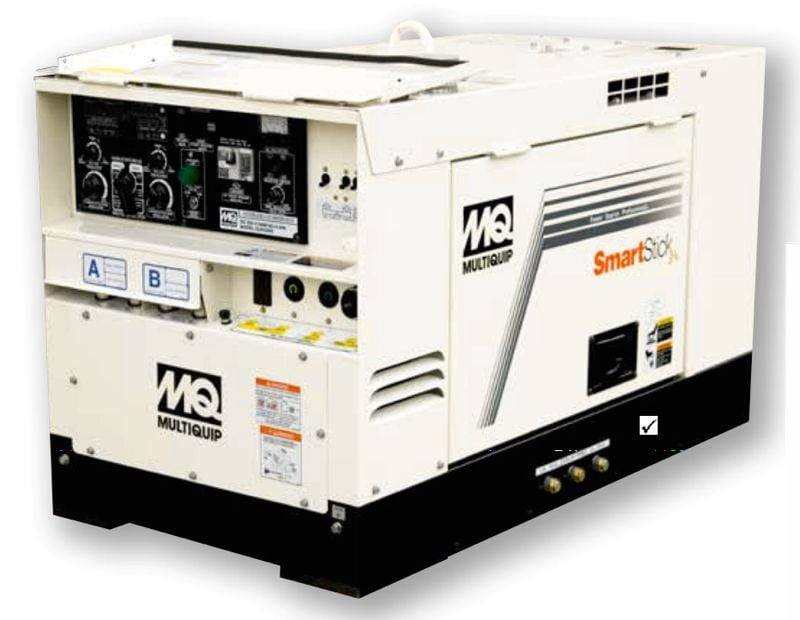

Multiquip DLW330X2 340A Welder Generator 10.5kW 120V 240V Kubota Diesel. This unit comes with a remote.
Product Description
Multiquip DLW330X2WR Welder
340 amp Welder, 10.5 KW 120/240V Gen
This CC (Constant Curent) and CV (Constant Voltage) welder delivers up to 340 amps of operation for one man, or simultaneous two man operation with 200 amps of output per operator. Additionally, it provides up to 10.5 kW of 120/240 volt AC power. A digital display provides both amperage/voltage and troubleshooting error code information to the operator. In e-mode the unit can weld at idle speed to optimize fuel economy. Low noise level of only 61.3dBA. This is the welder that gives you more spark for your arc. The SmartStick sensor automatically shuts off the engine during periods of no load and restarts it when the operator strikes the welding rod. The variable sensor - adjustable from one to 30 minutes - enables the operator to select the optimum working conditions and reduce fuel consumption.
The convenience of one man -man or two-man opeation
Independent controls and up to 200 amps for each operator or 340 amps for one operator
E-mode improves fuel efficiency by allowing the operator to weld with the engine at idle speed at up to 200 amps
Arc Force Control allows the operator to fine tune DC current during low voltage welding conditions and helps prevent electrodes from sticking during short arc length welding
Super clean voltage regulation 1.5% (+/-)
Smart Stick sensor to automatically shut off the engine during periods of no load and restart when operator strikes the welding rod
Tier 4 Kubota diesel engine D902
Unit Specifications
DC Voltage
CC: 31.2, 2 x 26.6CCV V
DC Current
CC: 280, 2 x 165 A
CV: 280, 2 x 165 A
Current Range
70-340, 2x35-200 A
Max Duty Cycle w/ Full Amps Availible
100% @280, 2 x 165 A
Welding Processes
SMAW FCAW GTAW ACAC
Fuel Tank Capacity
9.5 gal
36 L
Fuel Consumption at Rated Load
1.1 gph
Generator Specifications
AC Power Output (Single Phase)
10.5 kW
Cycle
60 Hz
Voltage
120/240 V
Amperage
87.6/43.8 A
Voltage Regulation
1.5 %
Receptacles
NEMA 5-20R 125V GFCI 20A NEMA L5-30R 125V Twist-Lock 30A NEMA L6-30R 250V Twist-Lock 30A CS-6369 125/250VAC Twist-Lock 50A
**TRLR-MPXF has a built in 28 gal. fuel cell
Dimensions & Weights
Overall Length
50.8 in
129 mm
Overall Width
26.8 in
68 mm
Overall Height
33.1 in
84 mm
Operating Weight
893 lb
446 kg
More Information
Manufacturer:
Multiquip
MPN:
DL330X2WR
Condition
New
Shipping Options
Standard Delivery
Current Range
70-340, 2x35-200 A
DC Voltage
CC: 31V
Fuel Type
Diesel
Receptacles
1 each (NEMA 5-20R 125V GFCI 20A NEMA L5-30R 125V Twist-Lock 30A NEMA L6-30R 250V Twist-Lock 30A CS-6369 125/250VAC Twist-Lock 50A)
