Multiquip

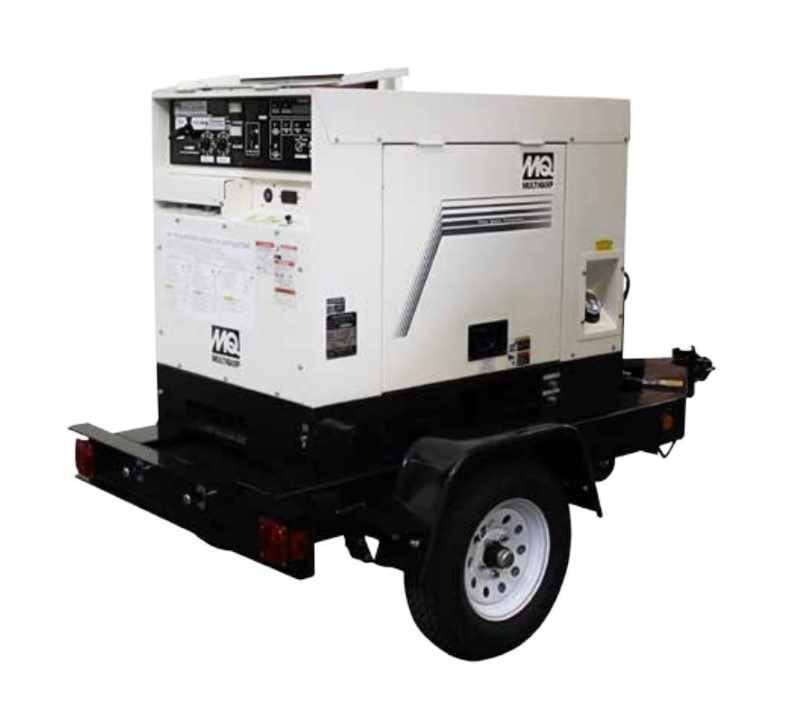

Multiquip DAW500SA4 Welder Generator 500A 3KW 120 through 240V

SKU DAW500SA4
$30,410.00

Freight Calculated at Checkout

The DAW500SA4 equipped with Kubota's Tier 4 D1803 engine is a CC (constant current), CV (constant voltage) welder that delivers up to 500 amps of DC welding output. This model is ideal for very large projects that demand high current for penetration when welding or for Carbon cutting. As a generator it provides up to 3kW of 120/240 volt AC power and can used simultaneously as a welder and generator.
$30,410.00

Customers also bought

    Product Description

    Multiquip DAW500SA4 - Welder Generator

    Trailer Not Included.

    Features:

    • CC and CV welding capabilities
    • Voltage regulation is maintained at ±10%
    • Showcases a clean burning Tier 4 final EPA-approved Kubota diesel engine
    • Electric-start, Lifting bail, external oil/fuel drains come as standard features
    • Excels in SMAW, FCAW, GMAW, GTAW and ACAC welding processes
    • Average rated load sound is 74 dB at 23ft

    Unit Specifications

    • DC Voltage CC: 38 V CV: 16-40 V
    • DC Current CC: 500 A CV: 500 A
    • Current Range 40-500 A
    • Max Duty Cycle
    • w/ Full Amps Availible 100% @350 A
    • Welding Processes SMAW
    • FCAW
    • GMAW
    • GTAW
    • ACAC
    • Fuel Tank Capacity 12 gal 0 L
    • Fuel Consumption
    • at Rated Load 1.3 gph
    • Generator Specifications
    • AC Power Output
    • (Single Phase) 3 kW
    • Cycle 50/60 Hz
    • Voltage 120 V
    • Amperage 25 A
    • Voltage Regulation 7 %
    • Receptacles NEMA 5-20R 125V GFCI 20A
    • NEMA L5-30R 125V Twist-Lock 30A

    Dimensions & Weights

    • Overall Length 52 in 1330 mm
    • Overall Width 31.49 in 800 mm
    • Overall Height 44.48 in 1130 mm
    • Shipping Dimensions 52 x 31.49 x 44.48 in
    • 1330 x 800 x 1130 mm
    • Operating Weight 1302 lb 591 kg
    • Shipping Weight 1175 lb 533 kg

    More Information

    Manufacturer: Multiquip
    MPN: DAW500SA4
    ConditionNew
    Fuel Tank Volume12 gal
    Wattage3000 W
    DC VoltageCC: 38 V CV: 16-40 V
    Fuel TypeDiesel
    DC CurrentCC: 500 A CV: 500 A
    Receptacles1 each (NEMA 5-20R 125V GFCI 20A NEMA L5-30R 125V Twist-Lock 30A)
    Current Range40-500A
    Fuel Consumption1.3 gph
    Sound Level Range65-up
    DC VoltageCC: 38 V CV: 16-40 V
    Voltage (single phase)120 or more
    Length53 in.
    Width32 in.
    Height36 in.
