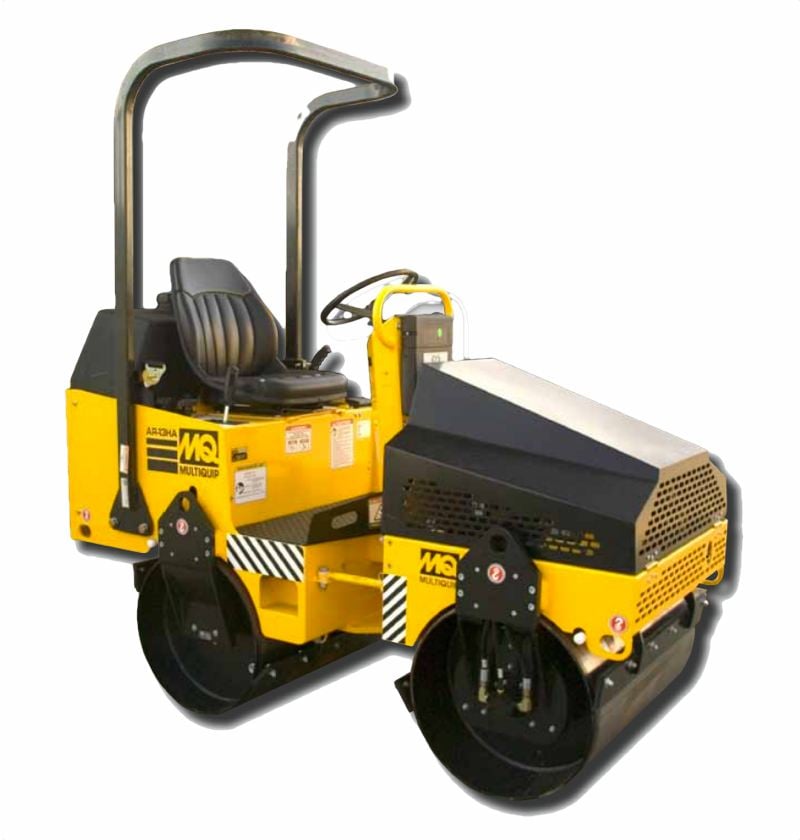

AR13DR Vibratory Roller
The workhorse for asphalt contractors, this articulated, vibratory roller can be deployed on many jobs previously reserved for larger asphalt rollers. A wise investment for every contractor or municipality who is looking for dependability and productivity. This roller is powered by a 23.6-hp Vanguard Industrial diesel engine.
- Articulated movement with power-assist provides accurate, positive steering control and increases maneuverability in confined job sites
- Oscillation up to 11 degrees maintains drum contact to the surface
- Hydrostatic drive with infinitely variable speed control for forward and reverse speeds allows for smooth starts and stops
- Large 40-gallon (180 liters) poly water tank is equipped with a water level sight gauge and provides the industry's longest intervals between fill-ups
- 1 1/4-inch (32 mm) right side clearance allows close operations near walls and obstructions
- Curb clearance of 19 inches (483 mm) insures flush compaction to the curb
- Unobstructed driver visibility -- open, uncluttered operator's platform allows for clear views
- Superb engine panel access to all engine and hydraulic maintenance components
- ROPS and seatbelts standard
Unit Specifications
| Compaction Force |
3100 lb |
13.79 kN |
| Frequency |
4000 VPM |
67 Hz |
| Travel Speed |
0-4.8 mph |
0-7.7 kph |
| Water Tank Capacity |
40 gal |
151.4 L |
Drum Specifications
| Front Drum Width |
35.7 in |
907 mm |
| Rear Drum Width |
35.7 in |
907 mm |
Dimensions & Weights
| Overall Length |
90.5 in |
2299 mm |
| Overall Width |
38.25 in |
972 mm |
| Overall Height |
87 in |
2210 mm |
| Operating Weight |
3227 lb |
1464 kg |
| Shipping Weight |
2700 lb |
1225 kg |
