Kohler Engines

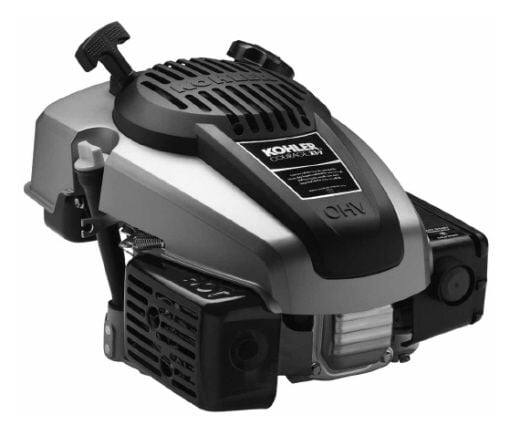

Kohler 4.5 HP Engine XT173-3024

SKU XT173-3024
$111,111.00

Kohler 4.5 HP Engine XT173-3024 Replacement for Mixer, Tiller, Mower

Product Description



XT173-3204

  • Flywheel Ball Bearing
    Reliability & Long Life Design:
  • Cast Iron Sleeve
  • Internally Vented Carburetor
  • Forged Steel crankshaft
  • Primer Carburetor
    Peak Power Performance & Quiet Smooth Operation:
  • Overhead Vavle Design
  • 25 mm x 3-5/32" crankshaft with full 1/4" keyway & two 1/4" Woodruff Keys
  • MAX. POWER @ 3600 RPM hp (kW) 4.5 Net (3.5)
  • DISPLACEMENT cu. in. (cc) 10.6 (173)
  • BORE in. (mm) 2.7 (70)
  • STROKE in. (mm) 1.8 (45)
  • PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 7 (9.5) @ 2600
  • COMPRESSION RATIO 8.5:1
  • OIL CAPACITY U.S. quarts (liters) 0.75 (.7)
  • LUBRICATION Splash
  • DIMENSIONS L x W x H in. 16.1 x 13.9 x 11.0

    •

    Shaft Type: Vertical

    Shaft Width: 0.98"

    Shaft Length: 3-5/32"

    More Information

    Manufacturer: Kohler Engines
    MPN: XT173-3024
    ConditionNew
    Shipping OptionsStandard Ground Shipping
    Engine CoolingAir
    Engine Size4 hp
    Engine Type4-Stroke
    # of Cylinders1
    Shaft PositionVertical
