Kohler Engines

Kohler CH270-3160 Engine, 7 HP for Tillers and Mixers

SKU CH270-3160
$111,111.00

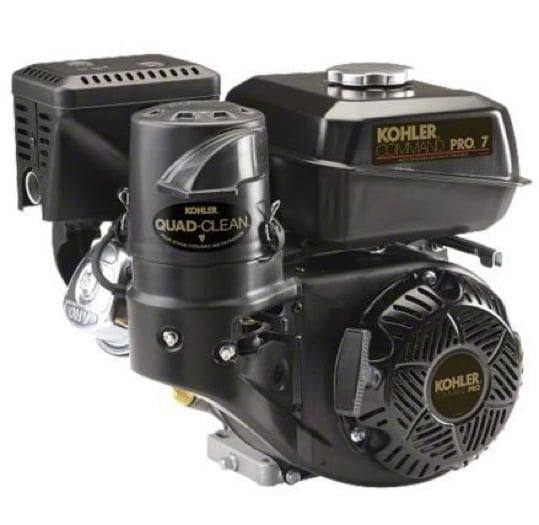

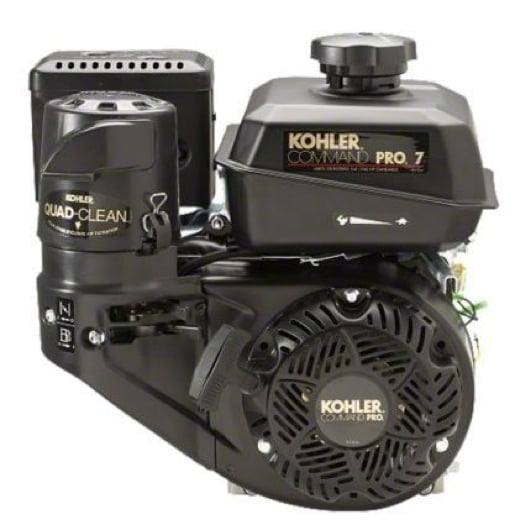

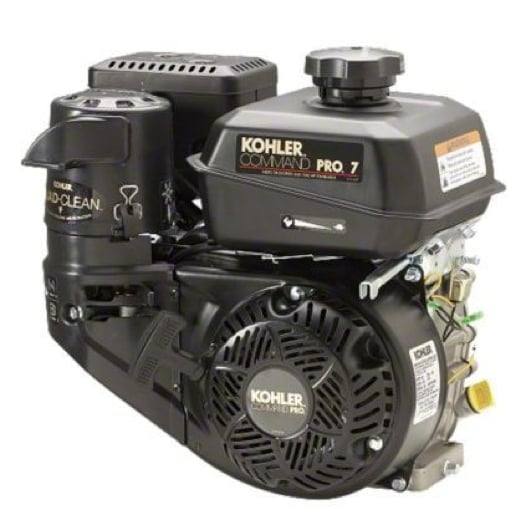

This CH270-3160 gasoline engine features a 4-cycle, slant cylinder design, with a cast iron cylinder bore and overhead valve for easy access. The Quad-Clean™ 4-stage air filtration system ensures only clean air enters the engine for maximum power and life of the engine. In addition, this engine is backed by a 3 year commercial warranty.

Product Description

Engine Type:

4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block

Model
Command PRO CH270
Max Power @3600 RPM hp (kW) 1 7 (5.2)
Displacement cu in (cc) 12.7 (208)
Bore in (mm) 2.8 (70)
Stroke in (mm) 2.1 (54)
Peak Torque @ Maximum lbs ft (Nm) 9.2 (12.4)
Compression Ratio 8.5:1
Dry Weight lbs (kg) 38.7 (17.5)
Oil Capacity U.S. quarts (L) 0.63 (0.6)
Lubrication Splash
Dimensions L x W x H in 12.7 x 15.2 x 14.2
Backpressure Limit 2 30
J1995 Power 3 6.1

Shaft Type: Horizontal

Shaft Length:2.42"

Shaft Width:3/4"

Cylinders: Single

Cooling: Air

Fuel Type: Gasoline

More Information

Manufacturer: Kohler Engines
MPN: CH270-3160
ConditionNew
Shipping OptionsStandard Ground Shipping
Engine CoolingAir
Engine Size7hp
Engine Type4-Stroke
# of Cylinders1
Shaft PositionHorizontal
Warranty3 Year Warranty
