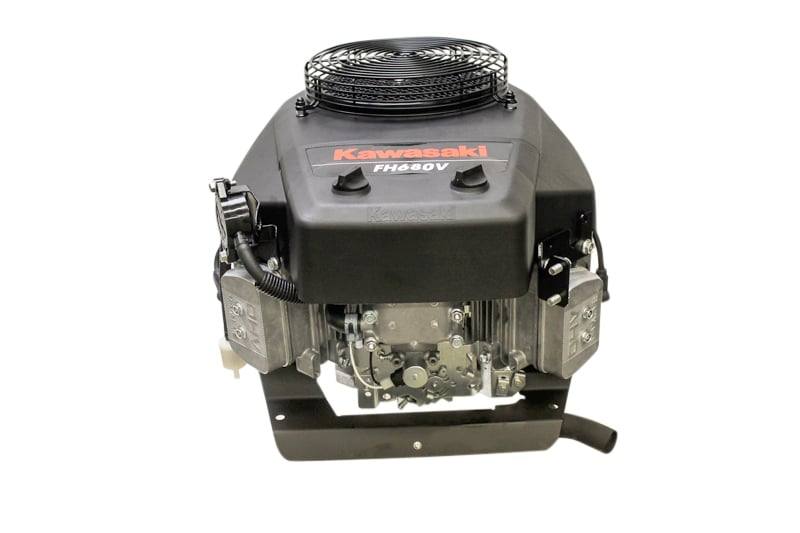

Kawasaki FH680V-GS06S 23HP 680cc Vertical Shaft Engine

SKU FH680V-GS06S
$111,111.00

This Kawasaki FH680V-GS06S engine features an internally vented carburetor and pressurized lubrication system.

Product Description

Kawasaki FH680V-GS06S 23HP 680cc Vertical Shaft Engine

Features :

  • 680cc
  • 23 horsepower
  • 1 inch shaft diameter
  • 80mm shaft length
  • Dual element air cleaner type
  • Remote throttle control
  • Electric starter type
  • 3600 maximum RPM
  • No oil cooler
  • Internally vented carburetor
  • Overhead valve style engine
  • Electronic ignition system
  • Pressurized lubrication system
  • 2 quart oil capacity
  • Muffler on the oil filter side
  • Gasoline engine
  • 8.1:1 compression ratio
  • Cast iron sleeves
  • 2.96 inch bore
  • 2.99 inch stroke
  • Counter clockwise shaft rotation
  • Fuel tank not included

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FH680V-GS01S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2 quarts
Cylinder Displacement680cc
Engine CoolingAir
Engine Size23hp
# of Cylinders2
Shaft Length80mm
Shaft PositionVertical
Shaft Width1"
Starting SystemElectric Start
