Kawasaki Motor Corp. USA

Kawasaki 22 HP Engine Vertical 39.4 Max Torque FX691VDS00S

SKU FX691V-DS00S
$111,111.00

Kawasaki FX691VDS00S 726cc replacement engine with a vertical shaft measuring 1-1/8 in. x 4-9/32 in. and 39.4 max torque.

Product Description

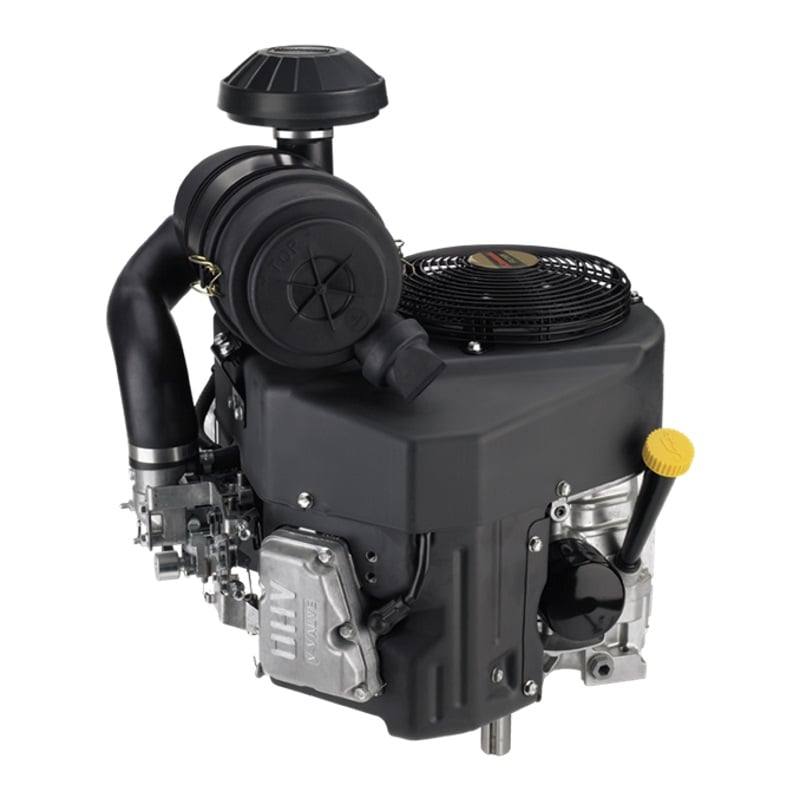

Kawasaki 22 HP Engine Vertical 39.4 Max Torque FX691V-DS00S

Each image of the engine represents the series itself and not the individual engine.

  • This engine's Canister Air Filter is the biggest difference between the FX691 and the FS691.
  • This engine comes without a muffler. It should be ordered seperately from the manufacturer of your mower. (If you need a muffler, feel free to call us)
  • The FX691V-DS00S has a 15 amp charging system instead of the clutch coil.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual stage canister air filter
  • Metal engine cover
  • Heavy Duty shift-type starter

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FX691VDS00S
ConditionNew
OEM Part #'sFX691V-DS00S, FX691VDS00S
Shipping OptionsStandard Delivery
Oil tank volume2.2 qt.
Cylinder Displacement726
Engine CoolingAir
Engine Size22hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length4-9/32"
Shaft PositionVertical
Shaft Width1-1/8"
Starting SystemRecoil Start
Warranty3 Year
