Kawasaki Motor Corp. USA

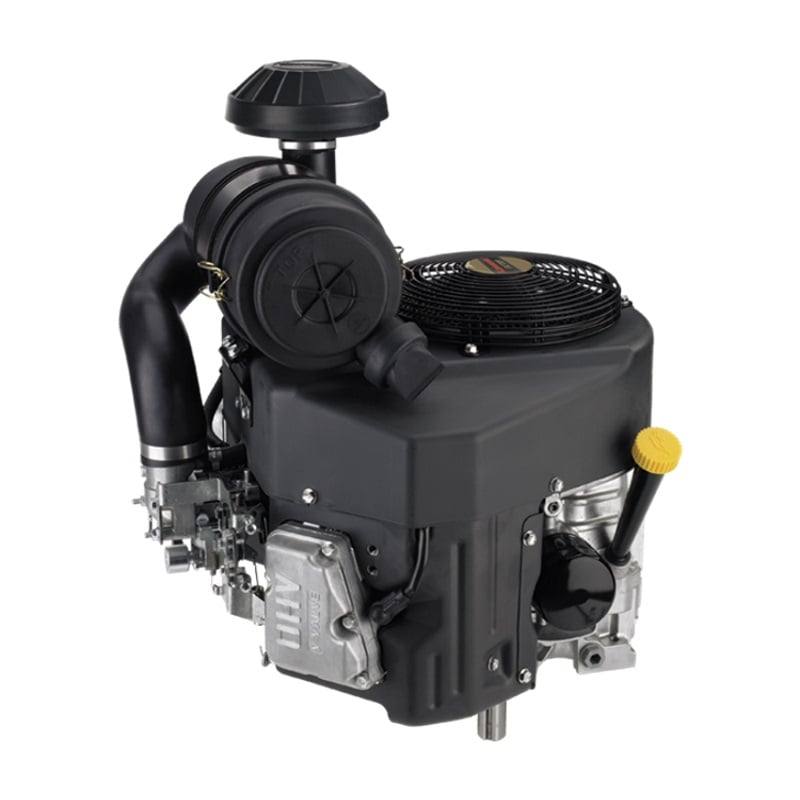

Kawasaki 20.5 HP Engine Vertical 39 Max Torque FX651V-DS00S

SKU FX651V-DS00S
$111,111.00

Kawasaki FX651V-DS00S 726cc replacement engine with a vertical shaft measuring 1-1/8 in. x 4-9/32 in. and 39 max torque.

Product Description

What Makes this Engine Different?

  • The Canister Air Filter on this engine is the biggest different between the FX651 and the FS651.
  • This engine comes without a muffler. It should be ordered seperately from the manufacturer of your mower. (If you need a muffler, feel free to call us)
  • The FX651V-DS00S has a 15 amp charging system instead of the clutch coil.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual stage canister air filter
  • Metal engine cover
  • Heavy Duty shift-type starter

Specs

Brand Kawasaki
Part # FX651V-DS00S
Shipping Weight 102.7 lbs.
Crankshaft Diameter 1"
Crankshaft Length 3-5/32"
Starter Type Recoil
Max RPM 3600
Displacement 726cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 2.2 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 39
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 3.1" x 3.0"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FX651V-DS00S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.2 qt.
Cylinder Displacement726
Engine CoolingAir
Engine Size20.5hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length4-9/32"
Shaft PositionVertical
Shaft Width1-1/8"
Starting SystemRecoil Start
Warranty3 Year
