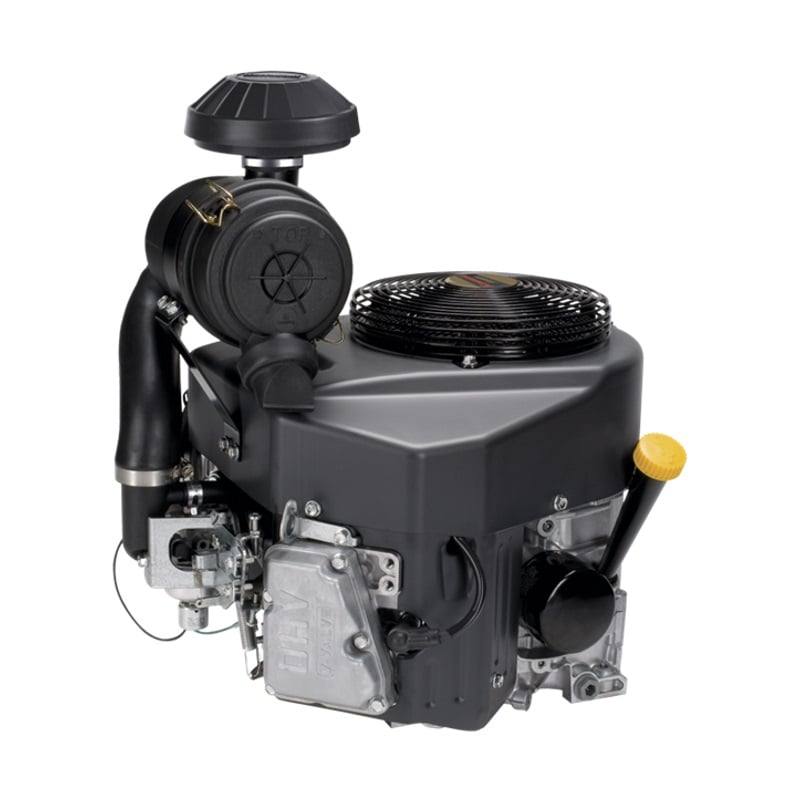

Kawasaki 19 HP Engine Vertical 32.5 Max Torque FX600V-DS02S

SKU FX600V-DS02S
$111,111.00

Kawasaki FX600V-DS02S 603cc replacement engine with a vertical shaft measuring 1- 1/8 in. x 4-9/32 in. and 32.5 max torque.

Product Description

What Makes this Engine Different?

  • The Dual Stage Canister Air Filter is the biggest different between the FX600 and the FS600.
  • This engine's muffler would be located on the fuel pump side. Mufflers are not included but can be ordered through us from Kawasaki.
  • The charging system on this engine is a 15 amp system.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual stage canister air filter
  • Metal engine cover

Specs

Brand Kawasaki
Part # FX600V-DS02S
Shipping Weight 89.7 lbs.
Crankshaft Diameter 1-1/8"
Crankshaft Length 4-9/32"
Starter Type Recoil
Max RPM 3600
Displacement 603cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 1.8 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 32.5
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.9" x 2.8"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FX600V-DS02S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume1.8 qt.
Cylinder Displacement603
Engine CoolingAir
Engine Size19hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length4-9/32"
Shaft PositionVertical
Shaft Width1-1/8"
Starting SystemRecoil Start
Warranty3 Year
