Kawasaki Motor Corp. USA

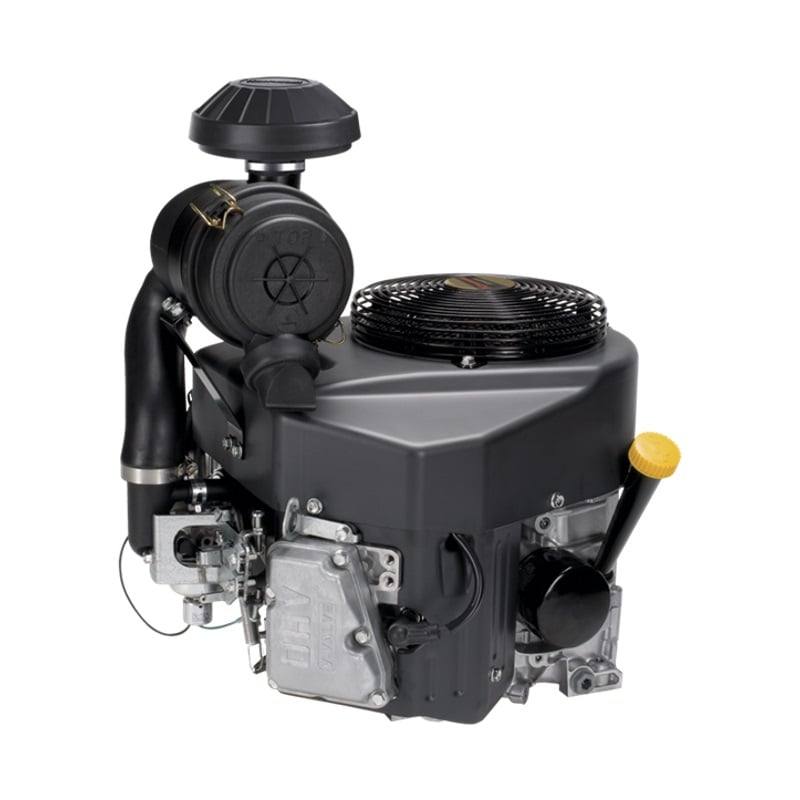

Kawasaki 15.5HP Engine Vertical 31.4 Max Torque FX481V-DS01A

SKU FX481V-DS01A
$111,111.00

Kawasaki FX481V-DS01A 603cc replacement engine with a vertical shaft measuring 1in. x 3-5/32 in. and 31.4 max torque.

Product Description

What Makes this Engine Different?

  • The Canister Air Filter on this engine is the biggest different between the FX481 and the FS481.
  • This engine comes without a muffler. It should be ordered seperately from the manufacturer of your mower. (If you need a muffler, feel free to call us)
  • The FX481V-DS00S has a clutch coil charging system instead of the 15 amp system.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual stage canister air filter
  • Metal engine cover

Specs

Brand Kawasaki
Part # FX481V-DS01A
Shipping Weight 89.7 lbs.
Crankshaft Diameter 1"
Crankshaft Length 3-5/32"
Starter Type Recoil
Max RPM 3600
Displacement 603cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 1.8 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 31.4
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.9" x 2.8"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FX481V-DS01A
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume1.8 qt.
Cylinder Displacement603
Engine CoolingAir
Engine Size15.5 hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-5/32"
Shaft PositionVertical
Shaft Width1"
Starting SystemRecoil Start
Warranty3 Year
