Kawasaki Motor Corp. USA

Kawasaki 23 HP Engine Vertical 39.9 Max Torque FS691V-GS00-S

SKU FS691V-GS00-S
$111,111.00

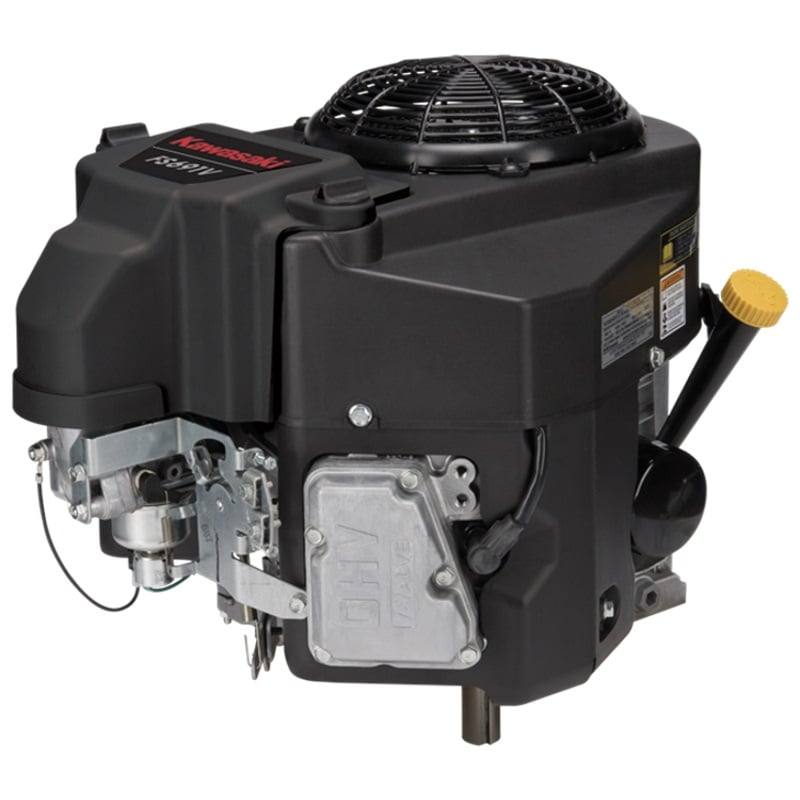

Kawasaki FS691V-GS00-S 726cc replacement engine with a vertical shaft measuring 1- 1/8" x 4- 9/32" in. and 39.9 max torque. Bendix electric starter, 15 amp charging coil, w/o muffler, separated choke & throttle.

Product Description

What Makes this Engine Different?

  • The Dual Element Air Filter that comes on this engine is the biggest difference between the FS691 and the FX691.

  • This engine has no muffler.

  • The charging system on this engine is the 15 amp style.



Features

  • No Muffler
  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter

Specs

Brand Kawasaki
Part # FS691V-GS00-S
Shipping Weight 91.5 lbs.
Crankshaft Diameter 1-1/8"
Crankshaft Length 4-9/32"
Starter Type Recoil
Max RPM 3600
Displacement 726cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 2.2 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 39.9
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 3.1" x 3.0"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FS691V-GS00-S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.2 qt.
Cylinder Displacement726
Engine CoolingAir
Engine Size23hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length4-9/32"
Shaft PositionVertical
Shaft Width1-1/8"
Starting SystemRecoil Start
Warranty3 Year
