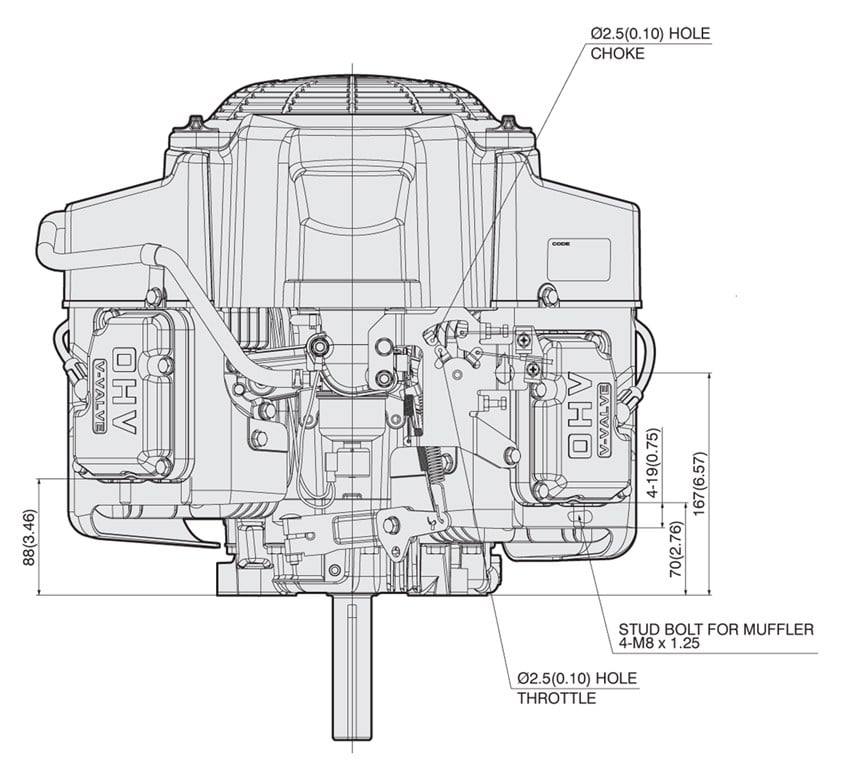

This engine's muffler would be located on the oil filter side. Muffler's are not included but can be ordered through us from Kawasaki.
The charging system on this engine is the 15 amp style.
| Brand | Kawasaki |
| Part # | FS651V-FS00S |
| Shipping Weight | 91.5 lbs. |
| Crankshaft Diameter | 1-1/8" |
| Crankshaft Length | 4-9/32" |
| Starter Type | Recoil |
| Max RPM | 3600 |
| Displacement | 726cc |
| Ignition System | Electronic Spark |
| Lubrication System | Pressurized |
| Oil Capacity | 1.8 qt. |
| Fuel Type | Gasoline |
| Cooling System | Air |
| Compression Release | Yes |
| Max Torque (ft./lbs) | 39.4 |
| Oil Filter | Yes |
| Cylinders | 2 |
| Cylinder Bore | Cast Iron Liners |
| Bore x Stroke | 3.1" x 3.0" |
| Crankshaft Orientation | Vertical |
| Grade | Commercial |
| Warranty | 3 Year |
| Manufacturer: | Kawasaki Motor Corp. USA |
|---|---|
| MPN: | FS651V-FS00S |
| Condition | New |
| Shipping Options | Standard Delivery |
| Oil tank volume | 1.8 qt. |
| Cylinder Displacement | 603 |
| Engine Cooling | Air |
| Engine Size | 22hp |
| Engine Type | 4-Stroke |
| # of Cylinders | 2 |
| Shaft Length | 4-9/32" |
| Shaft Position | Vertical |
| Shaft Width | 1-1/8" |
| Starting System | Recoil Start |
| Warranty | 3 Year |
