Kawasaki Motor Corp. USA

Kawasaki 18.5 HP Engine Vertical 32.5 Max Torque FS600V-ES01S

SKU FS600V-ES01S
$111,111.00

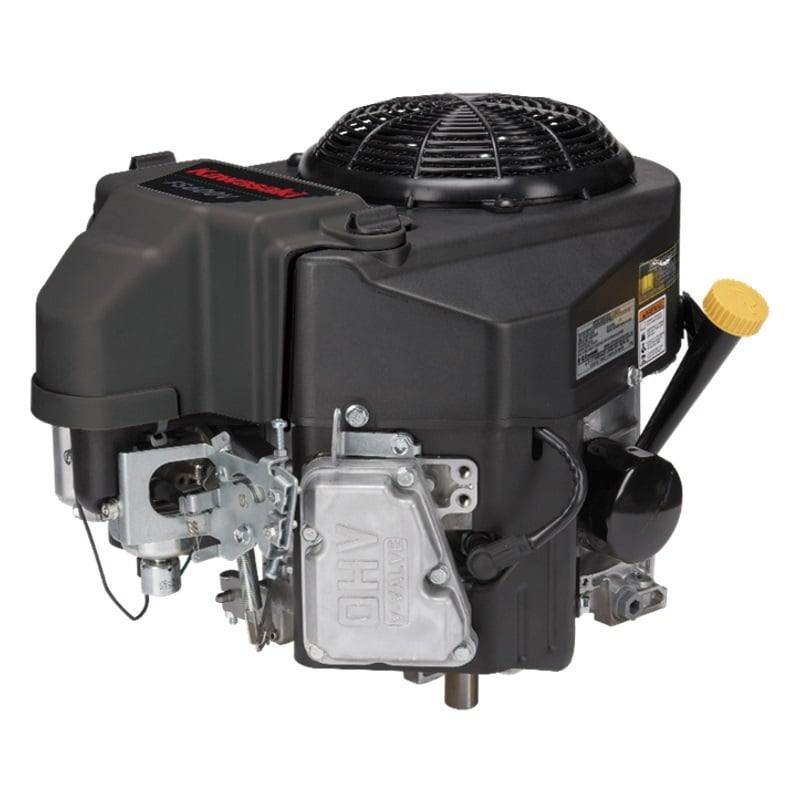

Kawasaki FS600V-ES01S 603cc replacement engine with a vertical shaft measuring 1in. x 3-5/32 in. and 32.5 max torque.

Product Description

What Makes this Engine Different?

  • The Dual Element Air Filter on this engine is the biggest different between the FS600 and the FX600.
  • This engine does not have a muffler available through Kawasaki. If you need a muffler, it can be ordered through us from your mower manufacturer.
  • The FS600V-ES01S has a clutch coil charging system.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter

Specs

Brand Kawasaki
Part # FS600V-ES01S
Shipping Weight 80.9 lbs.
Crankshaft Diameter 1"
Crankshaft Length 3-5/32"
Starter Type Recoil
Max RPM 3600
Displacement 603cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 1.8 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 32.5
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.9" x 2.8"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FS600V-ES01S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume1.8 qt.
Cylinder Displacement603
Engine CoolingAir
Engine Size18.5hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-5/32"
Shaft PositionVertical
Shaft Width1"
Starting SystemRecoil Start
Warranty3 Year
