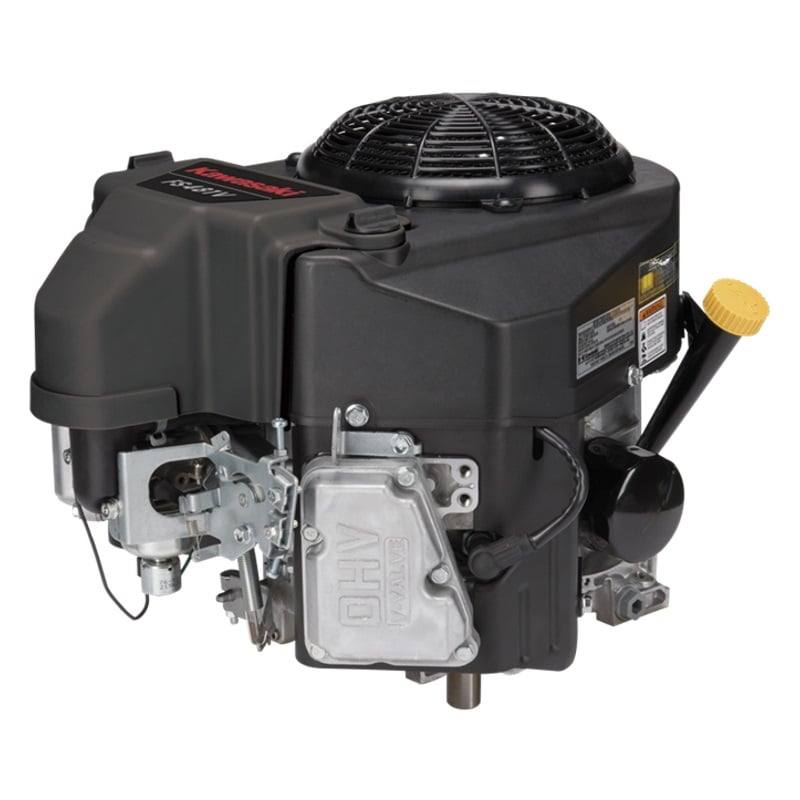

Kawasaki Motor Corp. USA

Kawasaki 14.5HP Engine Vertical 30.9 Max Torque FS481V-CS13S

SKU FS481V-CS13S
$111,111.00

Kawasaki FS481V-CS13S 603cc replacement engine with a vertical shaft measuring 1in. x 3-5/32 in. and 30.9 max torque.

Product Description

What Makes this Engine Different?

  • The Dual Element Air Filter on this engine is the biggest difference between the FS481 and the FX481.
  • This engine's muffler would be located on the oil filter side. The muffler is not included but can be ordered seperately through Kawasaki.
  • The charging system on this engine is a 15 amp system.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter

Specs

Brand Kawasaki
Part # FS481V-CS13S
Shipping Weight 80.9 lbs.
Crankshaft Diameter 1"
Crankshaft Length 3-5/32"
Starter Type Recoil
Max RPM 3600
Displacement 603cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 1.8 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 30.9
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.9" x 2.8"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FS481V-CS13S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume1.8 qt.
Cylinder Displacement603
Engine CoolingAir
Engine Size14.5hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-5/32"
Shaft PositionVertical
Shaft Width1"
Starting SystemRecoil Start
Warranty3 Year
