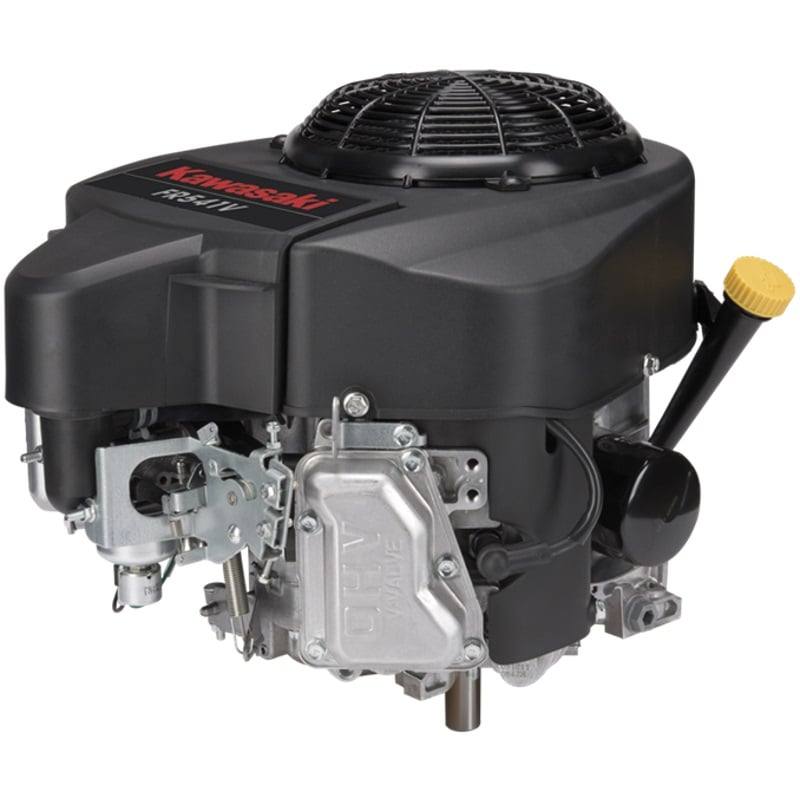

Product Description

What Makes this Engine Different?

  • The FR541V-BS00S has a single element air filter
  • There is no muffler for this engine.
  • It also has a 15 amp charging system instead of the clutch coil.



Features

  • Overhead V-Valve
  • 90º V-Twin
  • Rotating grass screen
  • Internally Vented Carburetor

Specs

Brand Kawasaki
Part # FR541V-BS00S
Shipping Weight 80.9 lbs.
Crankshaft Diameter 1"
Crankshaft Length 3-5/32"
Starter Type Recoil
Max RPM 3600
Displacement 603cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 1.8 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 31.7
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.9" x 2.8"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FR541V-BS00S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.2 qt.
Cylinder Displacement603
Engine CoolingAir
Engine Size15hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-5/32"
Shaft PositionVertical
Shaft Width1"
Starting SystemRecoil Start
Warranty3 Year
