Kawasaki Motor Corp. USA

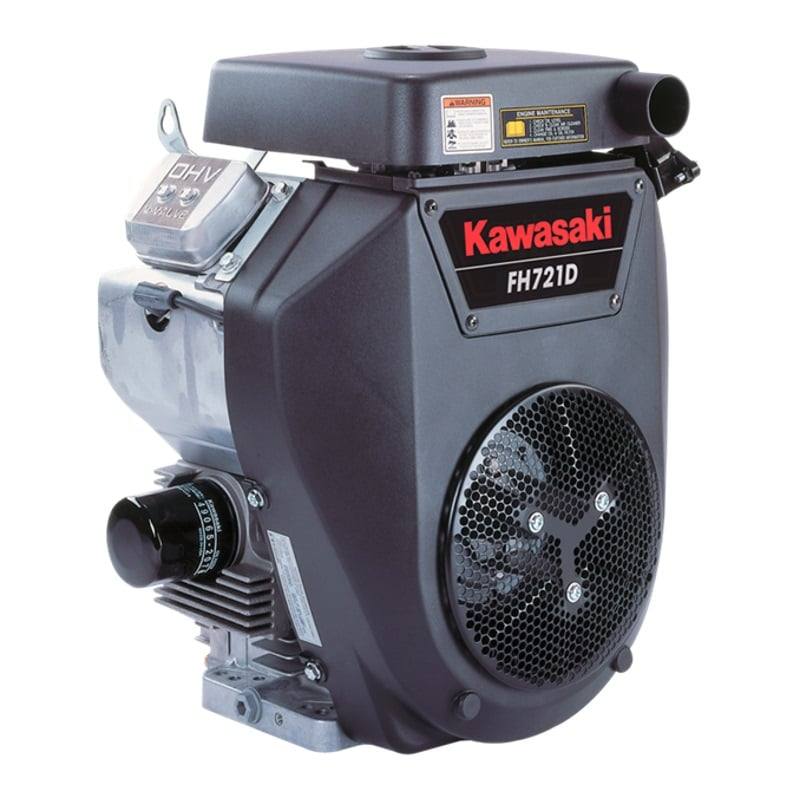

Kawasaki 25 HP Engine Horizontal 48.2 Max Torque FH721D-GS01S

SKU FH721D-GS01S
$111,111.00

Kawasaki FH721D-GS01S 675cc replacement engine with a horizontal shaft measuring 1-1/8 in. x 3-15/16 in. and 48.2 max torque.

Product Description

What Makes this Engine Different?

  • The FH721D-GS01S has a dual element air filter
  • This engine uses a horizontal muffler. Mufflers are not included but can be ordered through us from Kawasaki.
  • It also has a 15 amp charging system instead of the clutch coil.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Rotating grass screen
  • Twin barrel carburetor with fuel shut-off solenoid
  • Sperate choke and throttle
  • Oil Cooler
  • Multi-position air cleaner

Specs

Brand Kawasaki
Part # FH721D-GS01S
Shipping Weight 96.8 lbs.
Horse Power 25 hp
Crankshaft Diameter 1-1/8"
Crankshaft Length 3-15/16"
Starter Type Electric
Max RPM 3600
Displacement 675cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 2.0 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 48.2
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.96" x 2.99"
Crankshaft Orientation Horizontal
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FH721D-GS01S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.0 qt.
Cylinder Displacement675
Engine CoolingAir
Engine Size25hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-15/16"
Shaft PositionHorizontal
Shaft Width1-1/8"
Starting SystemElectric Start
Warranty3 Year
