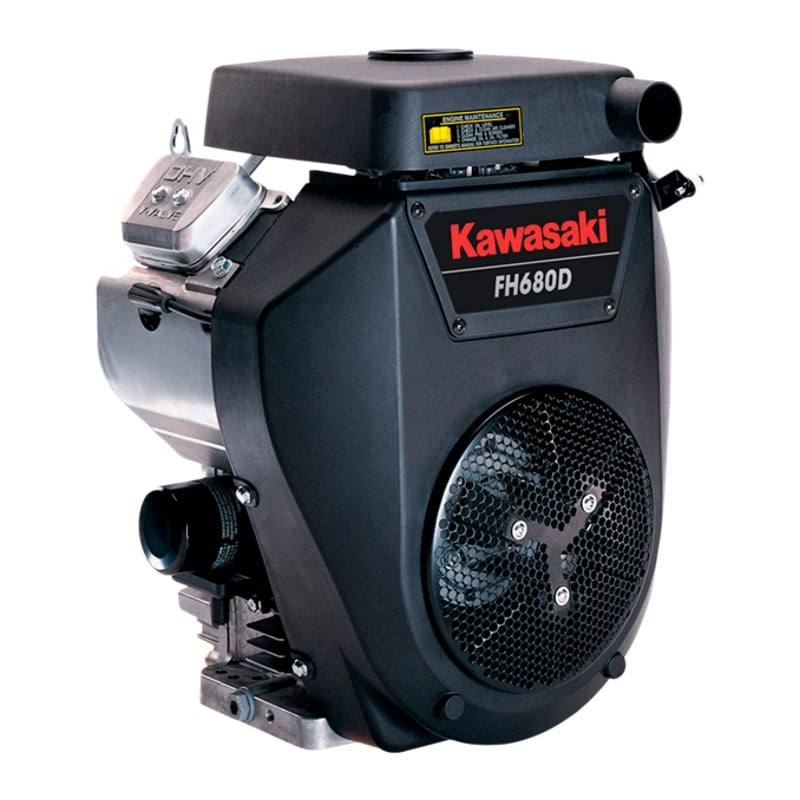

Kawasaki 23 HP Engine Horizontal Shaft 46.4 Torque FH680D-FS08S

SKU FH680D-FS08S
$111,111.00

Kawasaki FH680D-FS08S 675cc replacement engine with a horizontal shaft measuring 1-1/8 in. x 3-15/16 in. and 190.5 mm Mag PTO with 46.4 max torque.

Product Description

What Makes this Engine Different?

  • The FH680D-FS08S has a dual element air filter
  • This engine does not have a muffler available through Kawasaki. If you need a muffler, it can be ordered through us from your mower manufacturer.
  • It also has a 15 amp charging system instead of the clutch coil.
  • This enigne also has a 190.5 Mag PTO.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Rotating grass screen
  • Twin barrel carburetor with fuel shut-off solenoid
  • Sperate choke and throttle

Specs

Brand Kawasaki
Part # FH680D-FS08S
Shipping Weight 94.8 lbs.
Horse Power 23 hp
Crankshaft Diameter 1-1/8"
Crankshaft Length 3-15/16" and 190.5 mm Mag PTO
Starter Type Electric
Max RPM 3600
Displacement 675cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 2.0 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 46.4
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.96" x 2.99"
Crankshaft Orientation Horizontal
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FH680D-FS08S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.0 qt.
Cylinder Displacement675
Engine CoolingAir
Engine Size23hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-15/16"
Shaft PositionHorizontal
Shaft Width1-1/8"
Starting SystemElectric Start
Warranty3 Year
