Kawasaki Motor Corp. USA

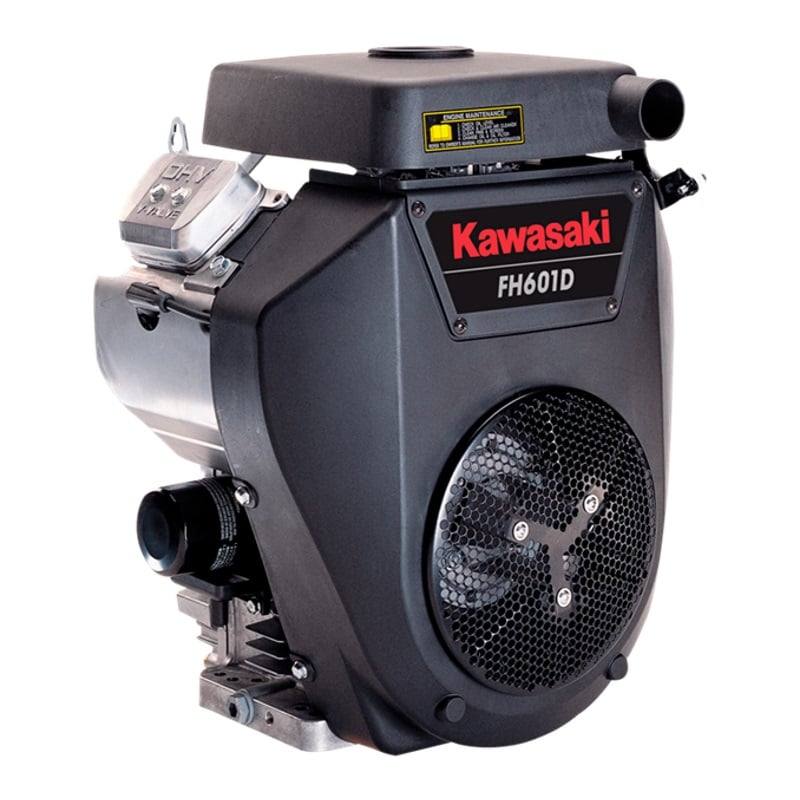

Kawasaki 19 HP Engine Horizontal 44.8 Max Torque FH601D-FS01S

SKU FH601D-FS01S
$111,111.00

Kawasaki FH601D-FS01S 675cc replacement engine with a horizontal shaft measuring 1-1/8 in. x 3-15/16 in. and 44.8 max torque.

Product Description

What Makes this Engine Different?

  • The FH601D-FS01S has a dual element air filter
  • This engine uses a horizontal muffler. Mufflers are not included but can be ordered through us from Kawasaki.
  • It also has a 15 amp charging system instead of the clutch coil.



Features

  • Overhead V-Valve
  • 90º V-Twin
  • Rotating grass screen
  • Twin barrel carburetor with fuel shut-off solenoid
  • Sperate choke and throttle

Specs

Brand Kawasaki
Part # FH601D-FS01S
Shipping Weight 94.8 lbs.
Crankshaft Diameter 1-1/8"
Crankshaft Length 3-15/16"
Starter Type Electric
Max RPM 3600
Displacement 675cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 2.0 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 44.8
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.96" x 2.99"
Crankshaft Orientation Horizontal
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FH601D-FS01S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.0 qt.
Cylinder Displacement675
Engine CoolingAir
Engine Size19hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-15/16"
Shaft PositionHorizontal
Shaft Width1-1/8"
Starting SystemElectric Start
Warranty3 Year
