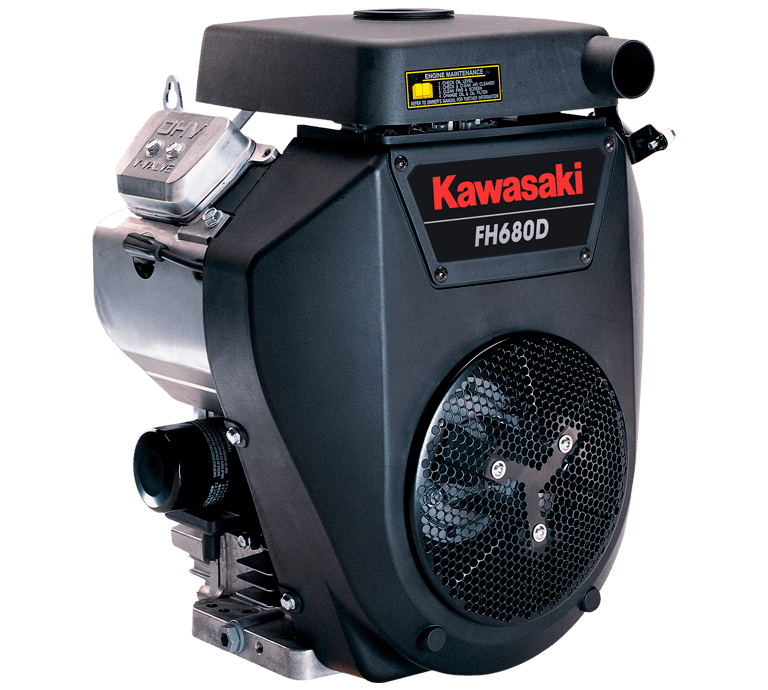

The Kawasaki FH680D-(G)S01-S is a 0.68 l (675 cc, 41.19 cu-in) V-twin 90° air-cooled 4-stroke internal combustion small gasoline motor with horizontal shaft. The FH680D has OHV (overhead valve design); cast-iron cylinder liners; twin-barrel, float type carburetor with fixed main jet; pulse type fuel pump; flywheel magneto transistor type ignition system; mechanical governor and low tone muffler.
Product Description
Kawasaki 23 HP Horizontal Engine FH680D-(G)S08-S
Features:
V-Twin
Horizontal shaft
Cast iron cylinder liners
Overhead valves (OHV)
Twin Barrel, Float Type Carburetor
Fixed main jet
Pulse type fuel pump
Flywheel magneto transistor type ignition system
Full pressure lubrication system
Spin-on oil filter
Dual Element air filter
Bendix type starter
12v-13a charging coil w/ regulator
75.2 mm cylinder bore
76 mm piston stroke
8.1:1 compression ratio
2,400 rpm of torque
Low tone muffler
Automatic compression release
Mechanical governor
Pulse fuel pump
Dual barrel carburetor with Fuel shut-off solenoid
