• Kawasaki 22 HP Engine 730 Series FX691V

Kawasaki Motor Corp. USA

Kawasaki 22 HP Vertical Engine 730 Series FX691V-(E)S14-S

SKU FX691V-(E)S14-S
$111,111.00

The Kawasaki FX691V-(E)S14-S is a 0.73 l (726 cc, 44.3 cu-in) V-twin 90° air-cooled 4-stroke internal combustion small gasoline engine with vertical shaft. The Kawasaki FX691V has a V-twin design with vertical PTO shaft. The motor uses overhead V-valves; spherical combustion chamber; cast-iron cylinder liners; metal engine cover with integrated cleanout ports; rotating metal grass chopper screen. The engine is equipped with electronic spark ignition and internally vented carburetor with fuel shut-off solenoid. The motor uses a high-performance lubrication system and single or multi-stage canister air filter.
Kawasaki 22 HP Engine 730 Series FX691V

Product Description

Kawasaki Engine FX691V-(E)S14-S

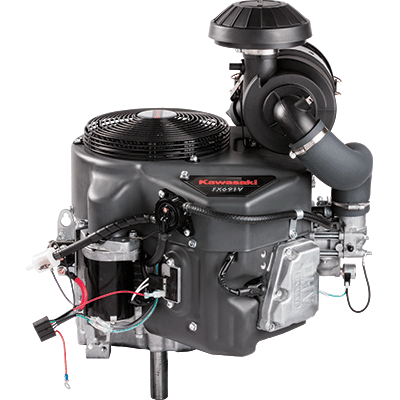

Each image of the engine represents the series itself and not the individual engine.

Features:

  • V-Twin
  • Vertical PTO shaft
  • Cast iron cylinder liner
  • Overhead V-valve
  • Internally vented carburetor with fuel shut-off solenoid
  • Full pressure lubrication system
  • Spin-on oil filter (optional)
  • H.D Canister air filter
  • Ball bearing crankshaft top support
  • 13a or 20a charge coils
  • Bendix type starter
  • 78 mm cylinder bore
  • 76 mm piston stroke
  • 8.2:1 compression ratio
  • 2,000 rpm of torque
  • Automatic compression release system
  • Mechanical governor
  • Pulse type fuel pump
  • Electronic spark ignition system
  • Dual cable controls
  • Heavy-Duty

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FX691V-(E)S14-S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.2 U.S. qt ( 2.1 liters)
Cylinder Displacement726 cc (44.3 cu. in.)
Engine Size22hp
Engine Type4-Stroke
# of Cylinders2
Shaft PositionVertical
Starting SystemElectric Start
