Kawasaki Motor Corp. USA

Kawasaki 20.5 HP Vertical Engine FX691V-AS24-S

SKU FX691V-AS24-S
$111,111.00

Kawasaki FX691V-AS24-S 726cc replacement engine with a vertical shaft measuring 1- 1/8" x 3- 15/16" in. and 39 max torque. Also featuring shift type starter, 15 amp charging coil, w/o muffler, heavy duty canister air filter (w/purge and high vac port).

Product Description

Kawasaki 20.5 HP Vertical Engine FX691V-AS24-S

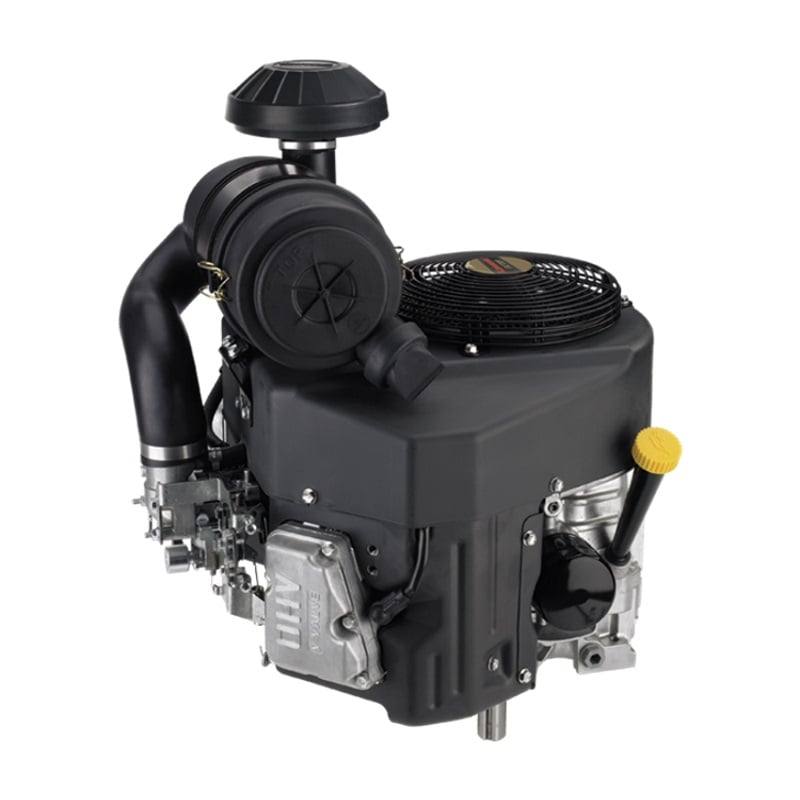

Each image of the engine represents the series itself and not the individual engine.

  • This engine's Canister Air Filter is the biggest difference between the FX651 and the FS651.
  • This engine comes without a muffler. It should be ordered separately from the manufacturer of your mower. (If you need a muffler, feel free to call us)
  • The FX691V-AS24-S has a 15 amp charging system instead of the clutch coil.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual-stage canister air filter
  • Metal engine cover
  • Heavy Duty shift-type starter

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FX691V-AS24-S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume2.2 qt.
Cylinder Displacement726
Engine CoolingAir
Engine Size20.5hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length4-9/32"
Shaft PositionVertical
Shaft Width1-1/8"
Starting SystemRecoil Start
Warranty3 Year
