Kawasaki Motor Corp. USA

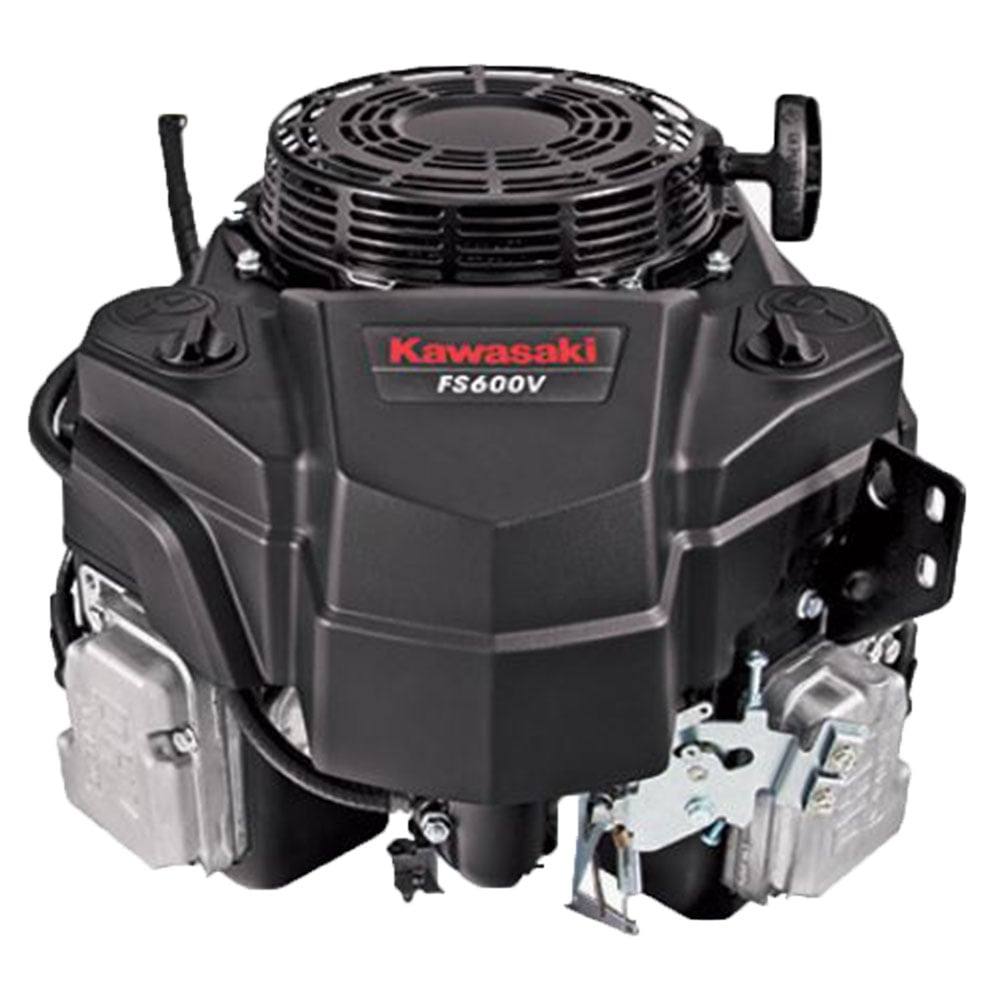

Kawasaki 18.5 HP Engine Vertical 32.5 Max Torque FS600V-ES04-S

SKU FS600V-ES04-S
$111,111.00

Kawasaki FS600V-ES04-S 603cc replacement engine with a vertical shaft measuring 1- 1/8" x 4- 9/32" in. and 32.5 max torque. Bendix electric starter; 15 amp charging coil, w/o muffler, separate choke & throttle.

Product Description

What Makes this Engine Different?

  • The Dual Element Air Filter on this engine is the biggest different between the FS600 and the FX600.
  • This engine does not have a muffler available through Kawasaki. If you need a muffler, it can be ordered through us from your mower manufacturer.
  • The FS600V-ES01S has a clutch coil charging system.

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter

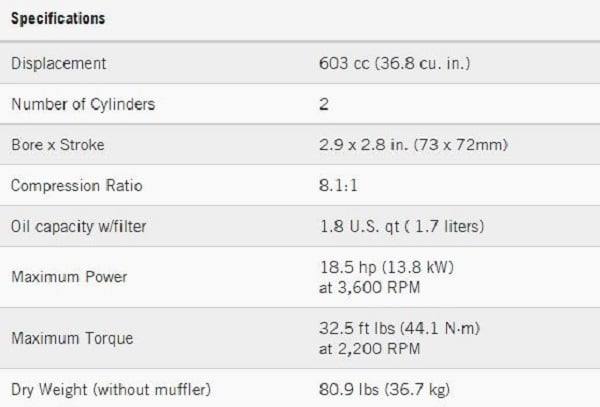

Specs

Brand Kawasaki
Part # FS600V-ES04-S
Shipping Weight 80.9 lbs.
Crankshaft Diameter 1"
Crankshaft Length 3-5/32"
Starter Type Recoil
Max RPM 3600
Displacement 603cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 1.8 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 32.5
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Bore x Stroke 2.9" x 2.8"
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FS600V-ES04-S
ConditionNew
Shipping OptionsStandard Ground Shipping
Oil tank volume1.8 US qt
Cylinder Displacement603 cc
Engine CoolingAir
Engine Size18.5hp
Starting SystemElectric Start
