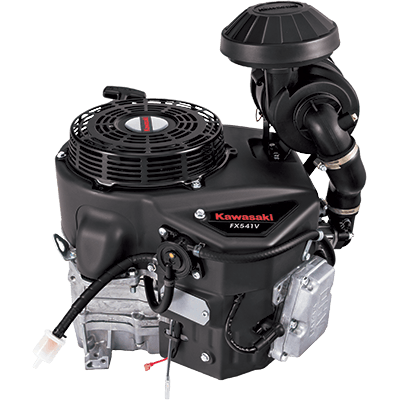

Kawasaki 16.5 HP Engine 600 series FX541V

Product Description

Kawasaki KAI Engine FX541V-(E)S01-S

Each image of the engine represents the series itself and not the individual engine.

Features:

  • V-Twin
  • Vertical PTO shaft
  • Spherical combustion chamber
  • Cast iron cylinder liner
  • Overhead V-valve
  • Single barrel carburetor with fuel shut-off solenoid
  • Full pressure lubrication system
  • Spin-on oil filter (optional)
  • Single-stage air filter
  • Ball bearing crankshaft top support
  • Recoil type starter
  • 13a or 20a charge coils
  • 73 mm cylinder bore
  • 72 mm piston stroke
  • 8.1:1 compression ratio
  • 2,000 rpm of torque
  • Low-Tone muffler with guard
  • Automatic compression release system
  • Mechanical governor
  • Pulse type fuel pump
  • Electronic spark ignition system
  • Dual cable controls
  • Heavy-Duty

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FX541V-(E)S01-S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume1.8 quart
Cylinder Displacement603cc
Engine CoolingAir
Engine Size16.5 hp
Engine Type4-Stroke
# of Cylinders2
Shaft Length3-5/32"
Shaft PositionVertical
Shaft Width1"
Starting SystemRecoil Start
