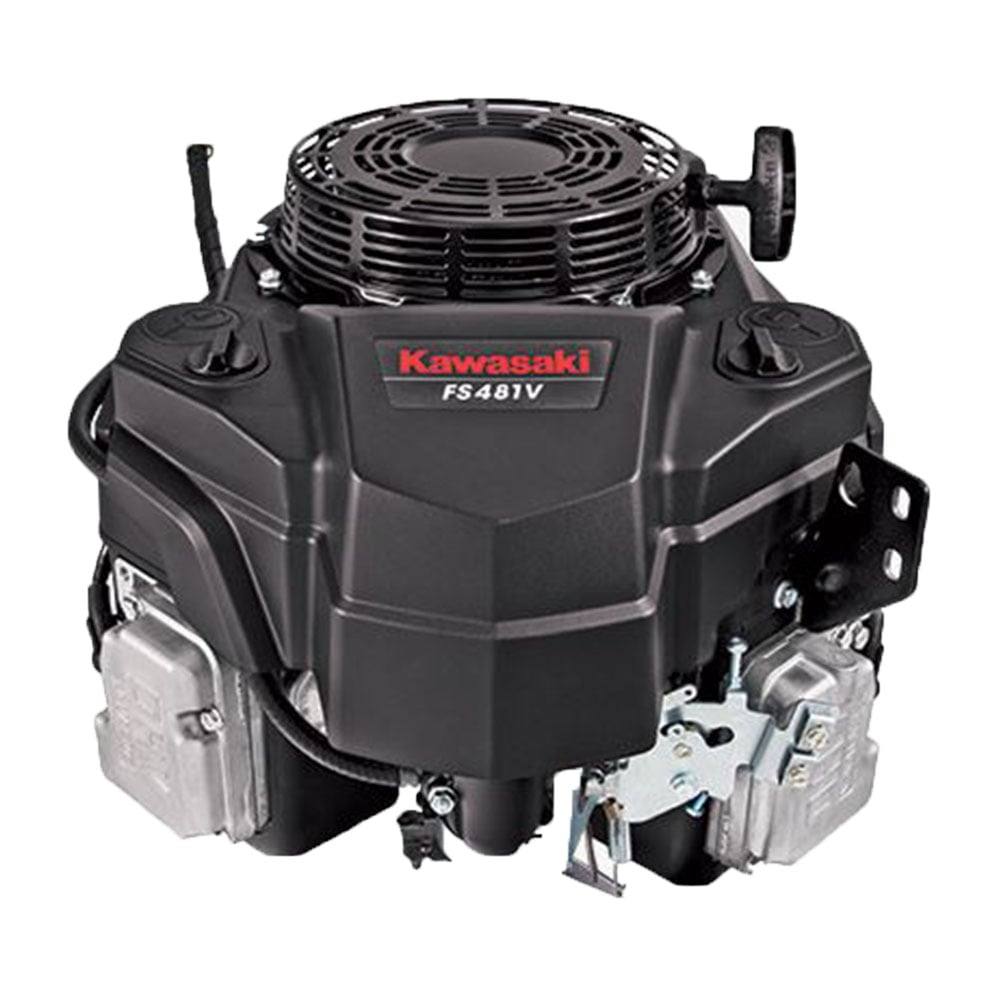

Kawasaki 14.5 HP Engine Vertical 30.9 Max Torque FS481V-DS24-S

SKU FS481V-DS24-S
$111,111.00

Kawasaki FS481V-DS24-S 603cc replacement engine with a vertical shaft and 30.9 max torque.

Product Description

What Makes this Engine Different?

  • The Dual Element Air Filter on this engine is the biggest difference between the FS481 and the FX481.
  • This engine's muffler would be located on the Fuel Pump Side. Mufflers are not included in the price and must be ordered seperately
  • .Cast-iron cylinder liners
  • Automatic compression release

Features

  • Overhead V-Valve
  • 90º V-Twin
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter

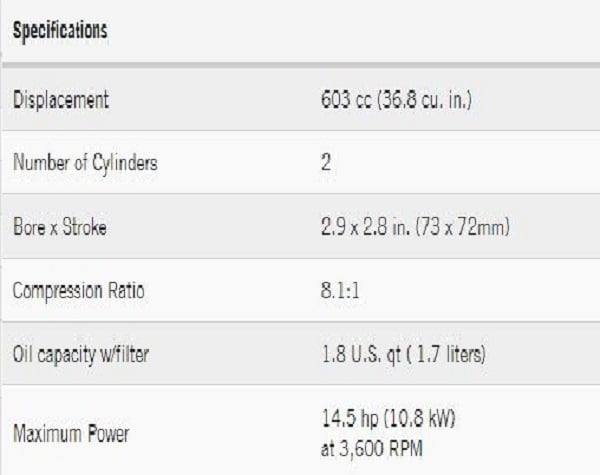

Specs

Brand Kawasaki
Part # FS481V-DS24-S
Shipping Weight 80.9 lbs.
Starter Type Recoil
Max RPM 3600
Displacement 603cc
Ignition System Electronic Spark
Lubrication System Pressurized
Oil Capacity 1.8 qt.
Fuel Type Gasoline
Cooling System Air
Compression Release Yes
Max Torque (ft./lbs) 30.9
Oil Filter Yes
Cylinders 2
Cylinder Bore Cast Iron Liners
Crankshaft Orientation Vertical
Grade Commercial
Warranty 3 Year

More Information

Manufacturer: Kawasaki Motor Corp. USA
MPN: FS481V-DS24-S
ConditionNew
Shipping OptionsStandard Delivery
Oil tank volume1.8 US qt
Cylinder Displacement603 cc
Engine CoolingAir
Engine Size14.5hp
# of Cylinders2
Shaft PositionVertical
Starting SystemElectric Start
