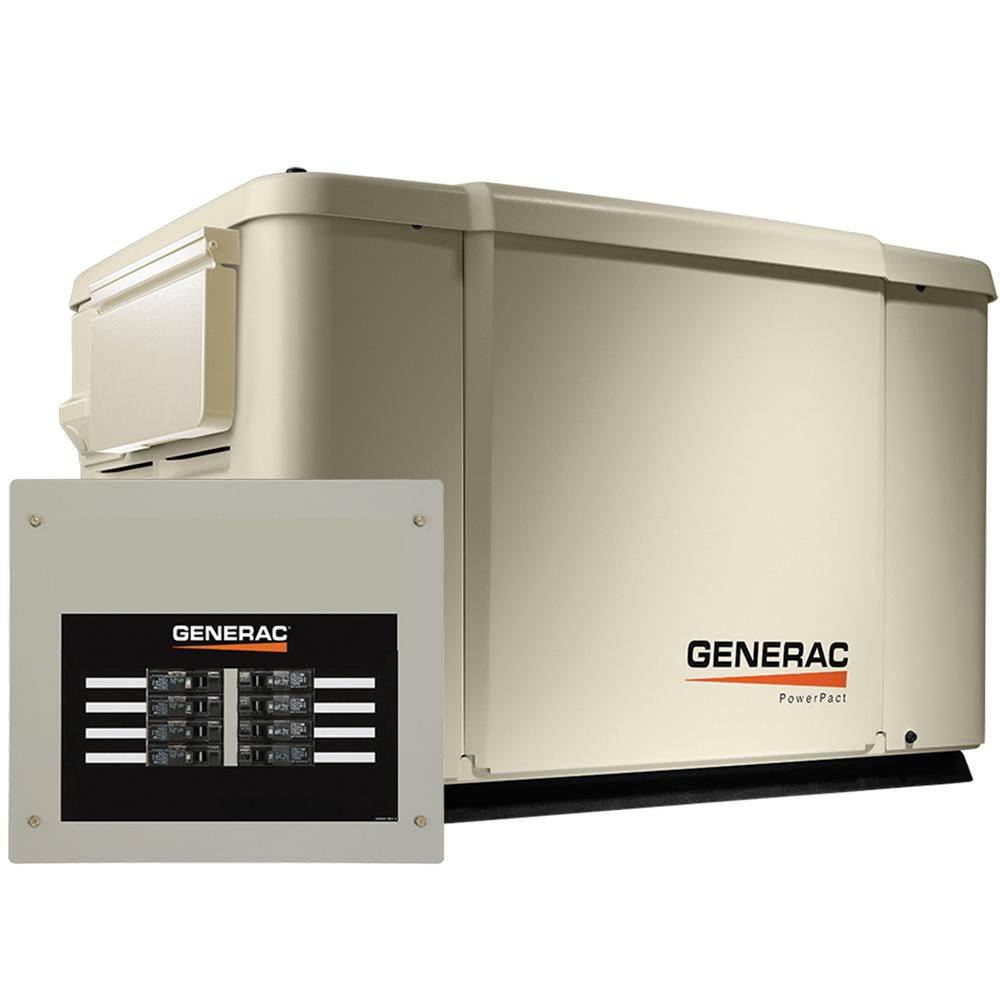

This is a Generac 7032 11/10kW air-cooled standby generator aluminum enclosure with WiFi capabilities, 16 circuit LC NEMA3, the only lightweight automatic transfer switch provides 16-circuit, automatic power to your home from this standby generator.
Product Description
Generac 7032 - Air-Cooled Standby Generator
Features:
Powers 16-circuits of your home with the 100 Amp, NEMA 3R, (aluminum indoor/outdoor rated) transfer switch
Evolution controller featuring a multilingual, 2-line LCD text display with color-coded, backlit buttons allows for easy monitoring and management of generator functions
Save money: product design features reduce cost of installation
True power technology provides best-in-class power quality with less than 5% total harmonic distortion for clean, smooth operation of your sensitive electronics and appliances
Third-party certified to NFPA standards to be installed as close as 18 in. from the home's exterior wall, provided it is located away from doors, windows and fresh-air intakes and unless otherwise directed by local codes
Mobile link compatible, so you can add the mobile link remote monitoring system and check on your generator's status using your computer, tablet or smart phone even when you’re away (sold separately)
All-weather aluminum enclosure with its durable powder-coat finish helps make the sturdy, all-weather aluminum enclosure corrosion resistant, making it ideal for coastal, salt-air climates
5-year limited warranty
Battery (not included): 12-Volt, group 26R 540 CCA minimum OR Group 35AGM 650 CCA minimum
Engine:
Engine Brand Generac OHVI
Starting System 12v Auto Start
CC 530 CC
Consumer Engine Warranty 5 Years
Commercial Engine Warranty 5 Years
Engine RPM 3600 RPM
Low Oil Alert/Shutdown Yes
Product Specs:
Voltage 120/240 Single-Phase
Frequency 60 Hertz
Surge Watts 11000 Watts
Rated Watts 11000 Watts
Fuel Type LP/Natural Gas
NG Power Capacity 10000 Watts
LP Power Capacity 11000 Watts
NG Fuel Consumption @ 50% Load 123 ft³/hr
NG Fuel Consumption @ 100% Load 199 ft³/hr
LP Fuel Consumption @ 50% Load 1.19 gallons/hr
LP Fuel Consumption @ 100% Load 2.01 gallons/hr
Rated Amps 45.8 Amps
Decibel Rating @ 7m 63 dbA
Transfer Switch Automatic (Included)
Transfer Switch Amperage 100-Amps
Enclosure Aluminum
Max Circuits 16
Battery Not Included (540 CCA)
A/C Ton Rating 3-Tons
Mounting Pad Composite (Included)
Transfer Switch Style Standard Installation
ATS Load Prioritizing Not Compatible
ATS Load Shedding Not Compatible
ATS Poles 2 Poles
ATS Service Disconnect No
Cooling System Air Cooled
UL Listed Yes
Grade Type Emergency
Overview:
Made in USA Yes
Weight 348 Pounds
Product Style Standby Generator
Product Length 48 Inches
Product Width 25.1 Inches
Product Height 29 Inches
Consumer Warranty 5 Years
Commercial Warranty 5 Years
More Information
Manufacturer:
Generac Power Systems
MPN:
7032
Condition
New
Shipping Options
Standard Delivery
Frequency
60Hz
Fuel Type
LP/Natural Gas
HP/CC
530cc
Number of Poles
2
RPM
3600
Starting System
Electric Start
Voltage
120/240 Single-Phase
Voltage (single phase)
120 or more
Wattage
11,000 W
Length
48 Inches
Width
25.1 Inches
Height
29 Inches
Warranty
Consumer Warranty 5 Years Commercial Warranty 5 Years
